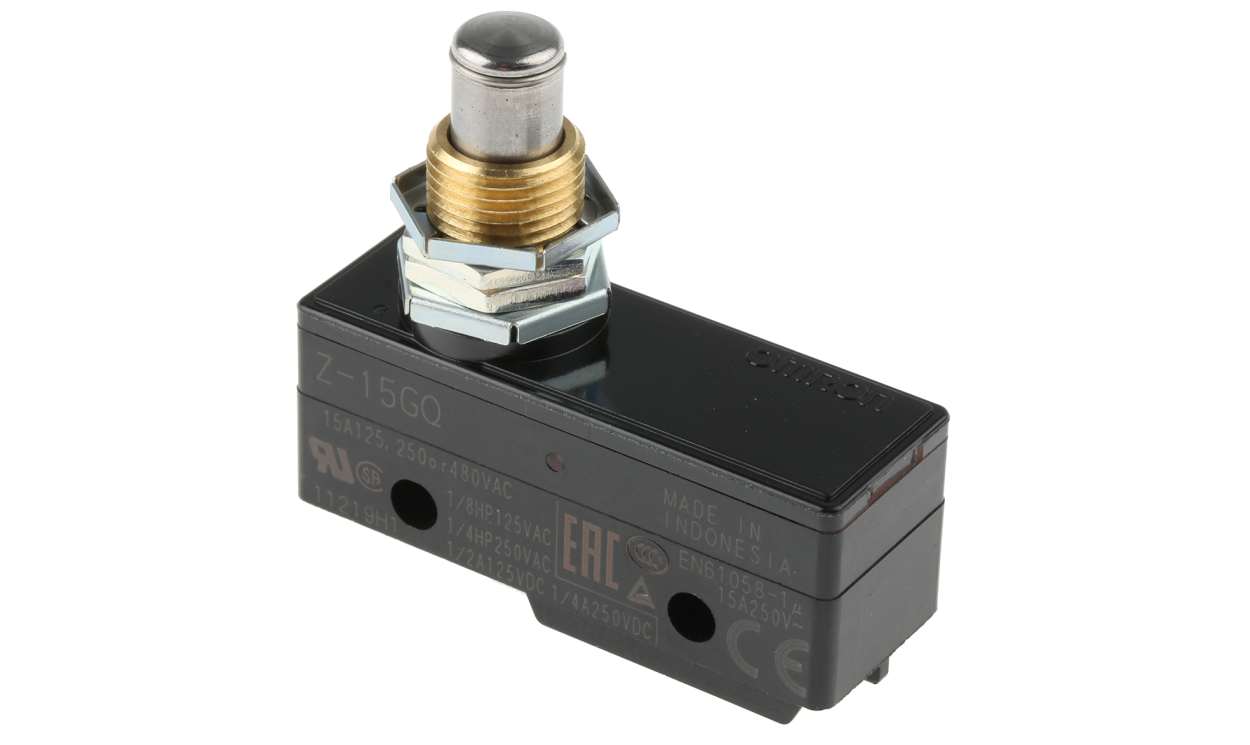

OMRON Z-15GQ | Z Plunger Limit Switch | SPDT, Solder Terminals, 47.3 mm Width, 15 A
Listed as a Z series plunger limit switch, the OMRON Z-15GQ has NO/NC contacts and is rated 15 A max at 500 V AC. The Z-15GQ has an IP00 rating, a thermosetting resin housing, solder terminals and an operating range of -25 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 15 A; maximum voltage: 500 V AC / 250 V DC
- IP00 enclosure rating; thermosetting resin housing; solder terminals
- Dimensions: 49.2 mm × 47.3 mm × 17.45 mm (L × W × D)
- Operating temperature: -25 to +80 °C
- Mechanical life: 20,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, 49.2mm Length, 15A- Z-15GQ
Features & Benefits
• Plunger actuator for accurate positioning
• Solder connection for secure and reliable installation
• Thermosetting resin housing for durability
• AC and DC voltage support for flexibility
• Temperature resistant for reliable performance in different environments
• Long mechanical life for lasting durability
• SPDT configuration for versatile switching options
Applications
• Suitable for automated production lines
• Ideal for safety systems in industrial settings
• Used in robotic applications for precise control
Can it handle both AC and DC voltage?
Will it withstand high temperatures?
Is it suitable for use in safety systems?
Can it be used in robotic applications?
What is the mechanical life of the switch?
| Brand | Omron |
| Series | Z |
| Actuator Type | Plunger |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Housing Material | Thermosetting Resin |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 47.3 mm (1.86 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 20000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Solder |
| Standards Met | CE |
