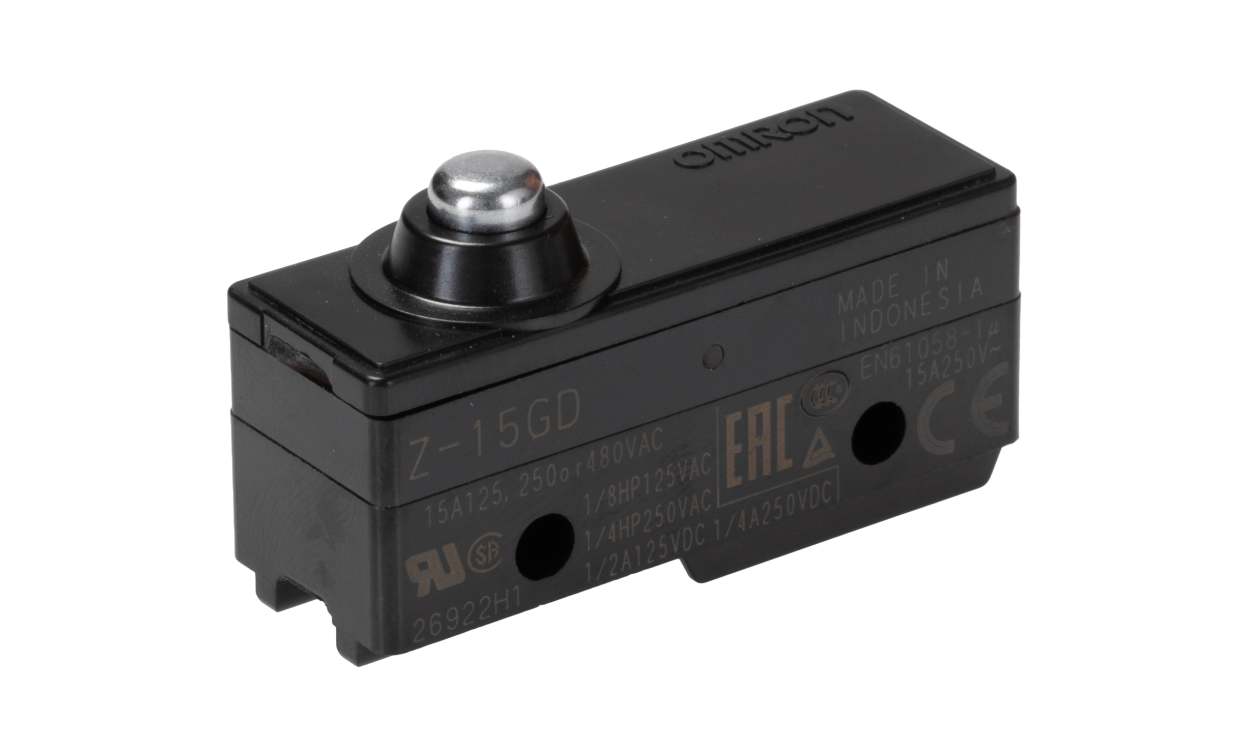

OMRON Z-15GD | Z Plunger Limit Switch | SPDT, Solder Terminals, 10 A AC, CCC/CE/CSA/UL
With NO/NC contacts, the OMRON Z-15GD is a Z series plunger limit switch rated 10 A AC / 250 mA DC max, 500 V AC max. This unit has an IP00 rating, a thermosetting resin housing, solder terminals and an operating range of -25 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 10 A AC and 250 mA DC; maximum voltage: 500 V AC / 250 V DC
- IP00 enclosure rating; thermosetting resin housing; solder terminals
- Dimensions: 49.2 mm × 24.2 mm × 17.45 mm (L × W × D)
- Operating temperature: -25 to +80 °C
- Mechanical life: 20,000,000 cycles
- Detailed Description
- Specifications
- Downloads
Omron Series Z Limit Switch, NO/NC Normal State Configuration, AC 10A/DC 250mA Maximum Current - Z-15GD
Features & Benefits
• SPDT configuration offers versatility in control options
• Snap action mechanism ensures quick response times
• Durable thermosetting resin housing withstands harsh conditions
Applications
• Utilised in conveyor systems for precise control
• Employed in robotics for effective movement detection
• Ideal for integration in industrial limit switch systems
How does it perform in extreme temperature conditions?
What is the lifespan of this device?
Can it be easily mounted on different systems?
What type of connection is required for installation?
| Brand | Omron |
| Series | Z |
| Actuator Type | Plunger |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 10 A, dc 250mA |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Housing Material | Thermosetting Resin |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 24.2 mm (0.953 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 20000000Cycles |
| Maximum DC Voltage | 250V |
| Connection Type | Solder |
| Standards Met | CCC, CE, CSA, UL |
| Mounting Orientation | Side |
