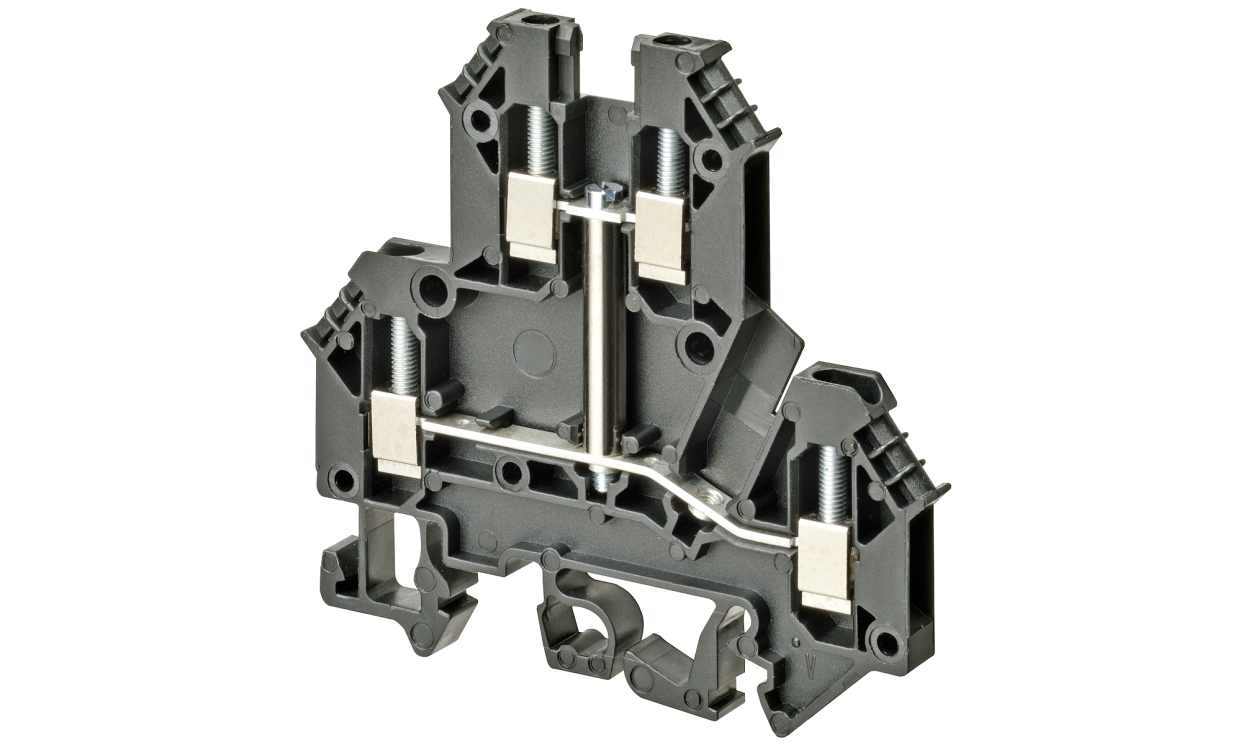

Omron XW5TS25112V, XW5T Series Black, 2.5mm², Double-Level, Screw Termination

Name: Omron XW5TS25112V, XW5T Series Black, 2.5mm², Double-Level, Screw Termination
Brand: OMRON
SKU: XW5TS25112V
Availability: OutOfStock

Part Number : XW5TS25112V

Availability: Sold out

Detailed Description
Specifications
Downloads

DIN Rail Screw Terminal- XW5T-S & XW5G-S Series

DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. The XW5G series terminal blocks are easy to install and wires are held firmly and securely in place.

Features and Benefits

• Slim 3.5 mm width
• Wires held with screws
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available

DIN Rail Terminal Blocks

Brand	Omron
Colour	Black
Number of Levels	Double
Voltage Rating	600 V
Series	XW5T
American Wire Gauge	20 → 14AWG
Termination Method	Screw
Cable CSA	2.5mm²
Current Rating	20 (UL) A, 24 (IEC) A
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+55°C

Omron XW5TS25112V, XW5T Series Black, 2.5mm², Double-Level, Screw Termination

DOWNLOAD CATALOG

Omron XW5TS25112V, XW5T Series Black, 2.5mm², Double-Level, Screw Termination

DIN Rail Screw Terminal- XW5T-S & XW5G-S Series

Features and Benefits

Omron XW6T-COM2.5X12BL, XW6T Series Blue, 0.14 → 2.5mm², Screw Termination

Omron XW5G-P1.5-1.2-1, XW5G Series Grey, 1.5mm², Single-Level, Push In Termination

Omron XW6T-COM2.5X16YL, XW6T Series Yellow, 0.14 → 2.5mm², Screw Termination

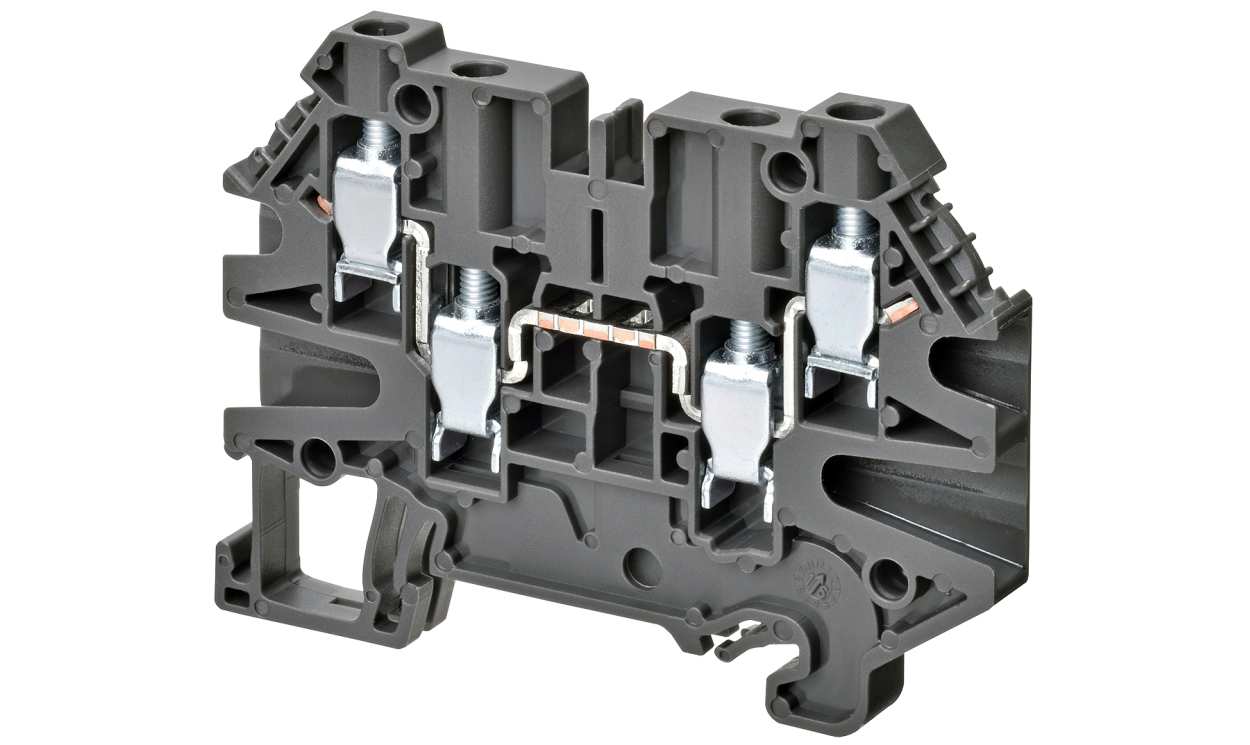

Omron XW5TS40221, XW5T Series Grey, 4mm², Single-Level, Screw Termination

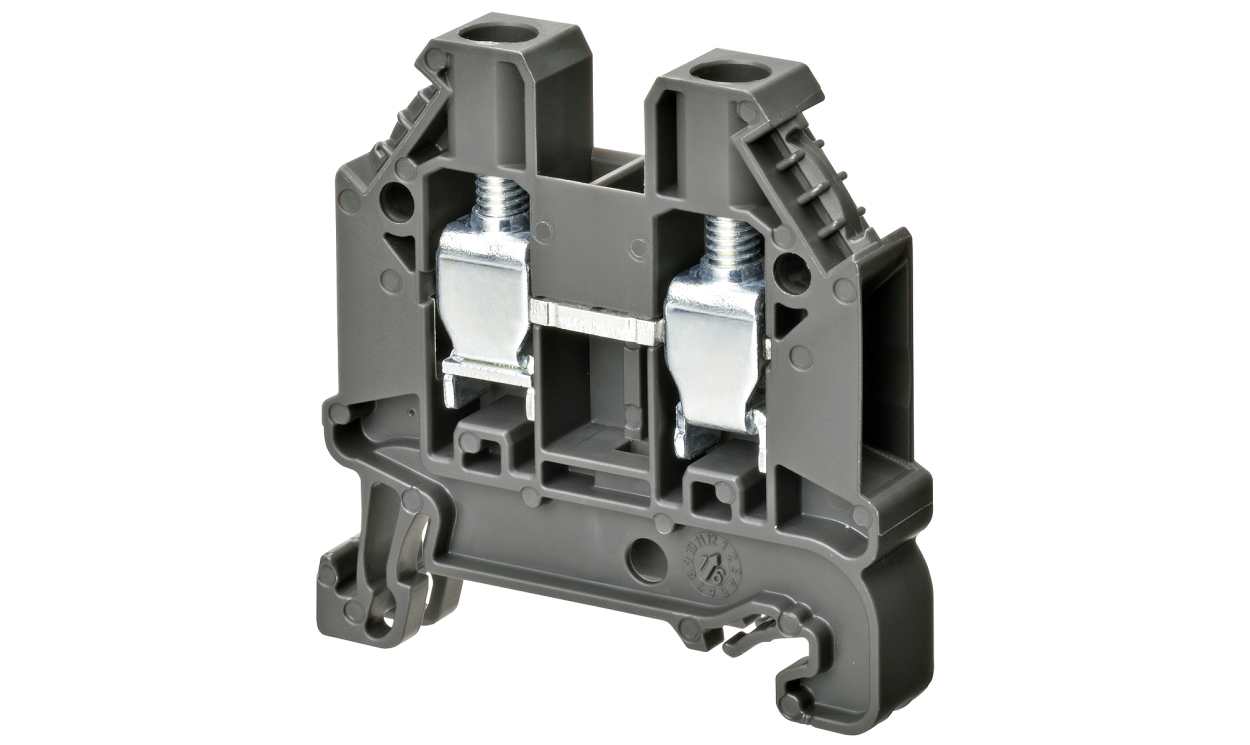

Omron XW5TS60111, XW5T Series Grey, 6mm², Single-Level, Screw Termination

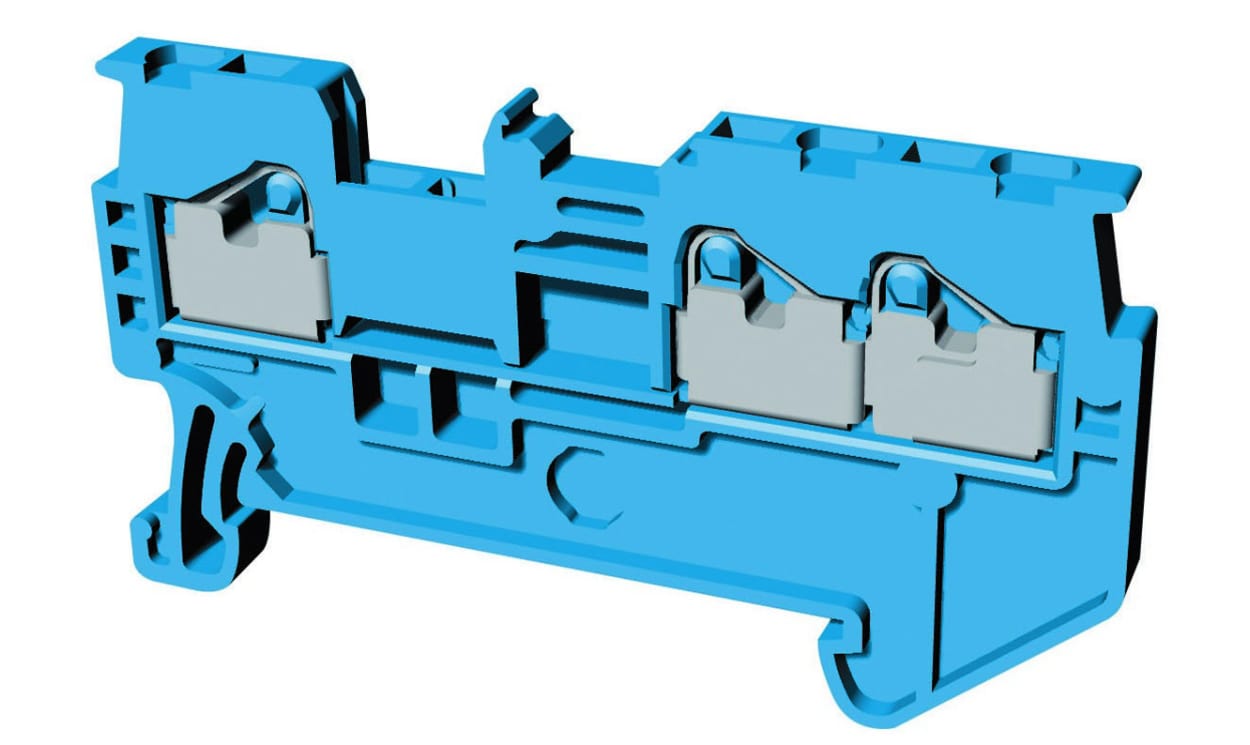

Omron XW5T-P1.5-1.2-1BL, XW5T Series Blue, 1.5mm², Single-Level, Push In Termination

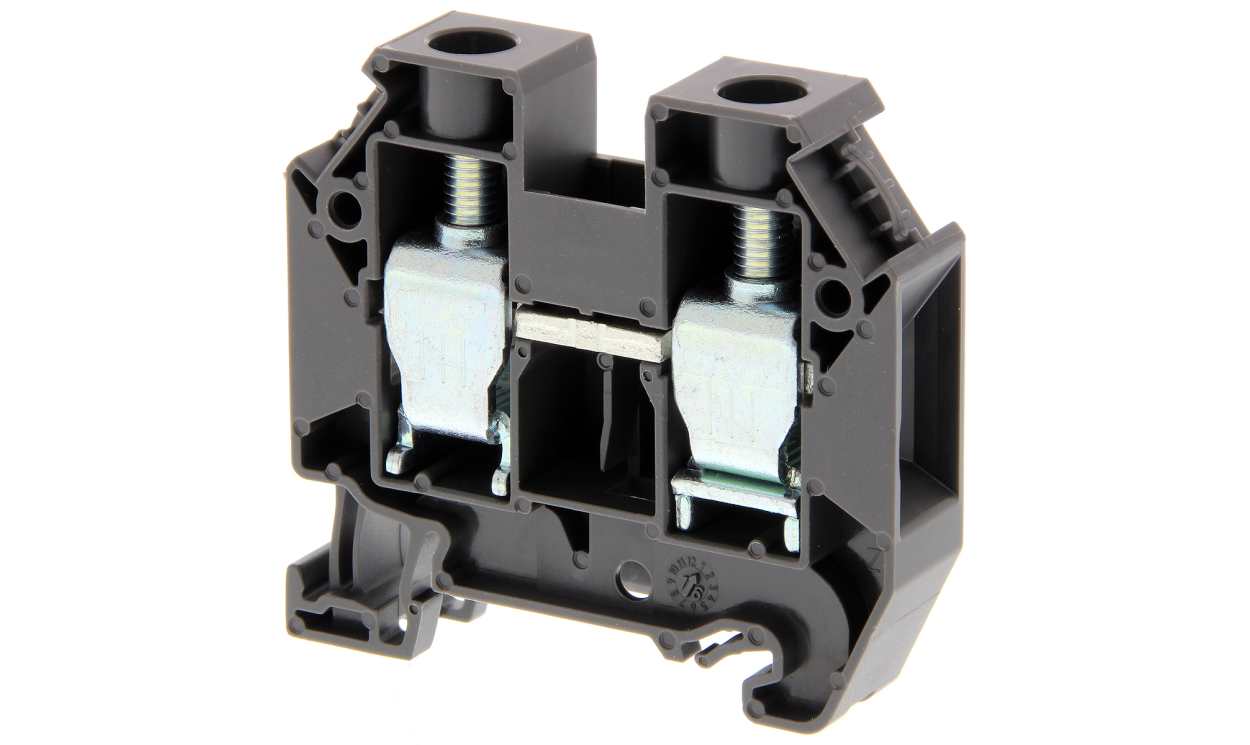

Omron XW5TS16111, XW5T Series Grey, 4 → 25mm², Single-Level, Screw Termination

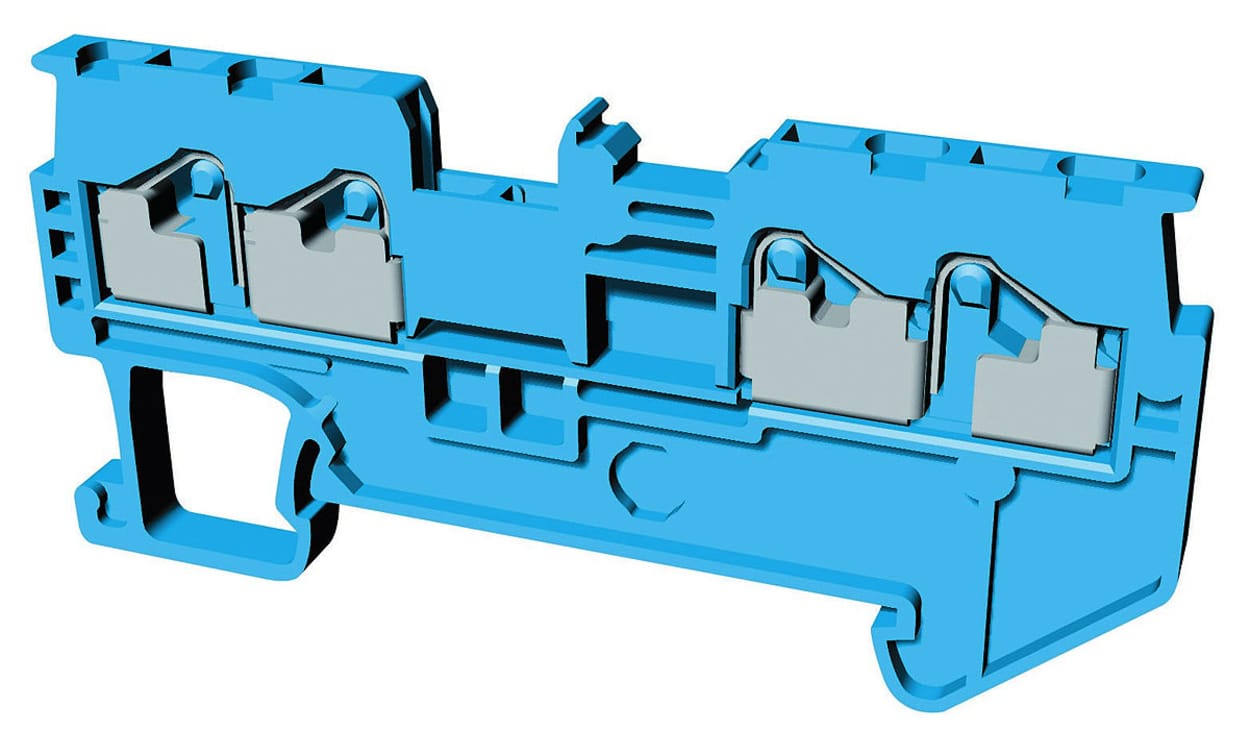

Omron XW5T-P1.5-2.2-1BL, XW5T Series Blue, 1.5mm², Single-Level, Push In Termination
