Omron V-166-1C5, Hinge Roller Lever Microswitch, Quick Connect Terminal, 16 A, SPDT, IP40

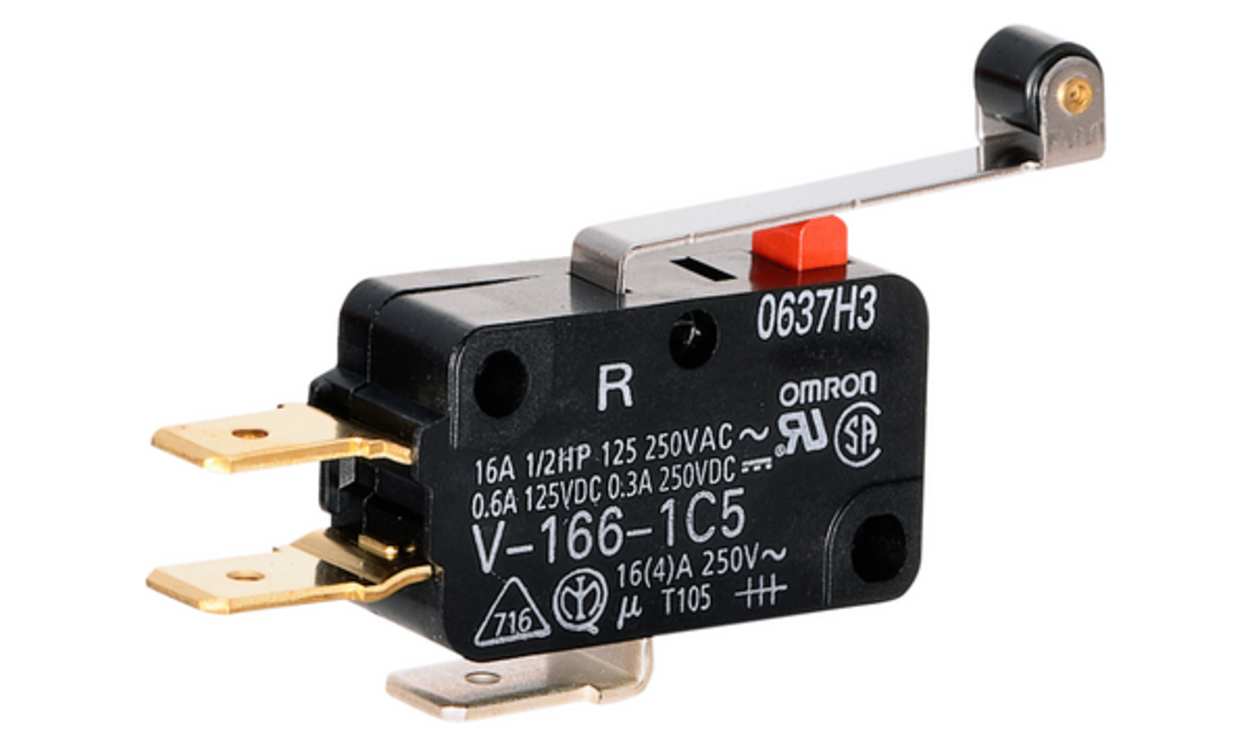

Name: Omron V-166-1C5, Hinge Roller Lever Microswitch, Quick Connect Terminal, 16 A, SPDT, IP40
Brand: OMRON
SKU: V-166-1C5
Availability: OutOfStock

Part Number : V-166-1C5

Miniature basic switch

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

The Omron V series miniature basic switch that offers high reliability and security. It can be used for interrupting current when doors are opened or closed. This micro switch has silver alloy contact material.

Ambient operating temperature from -25 to +105 °C
15mO maximum contact resistance
Degree of protection IP40
RoHS complaint

Brand	Omron
Actuator Type	Hinge Roller Lever
Terminal Type	Quick Connect
Contact Current Rating	16 A
Contact Configuration	SPDT
IP Rating	IP40

Miniature basic switch

Omron V-166-1C5, Hinge Roller Lever Microswitch, Quick Connect Terminal, 16 A, SPDT, IP40

DOWNLOAD CATALOG
