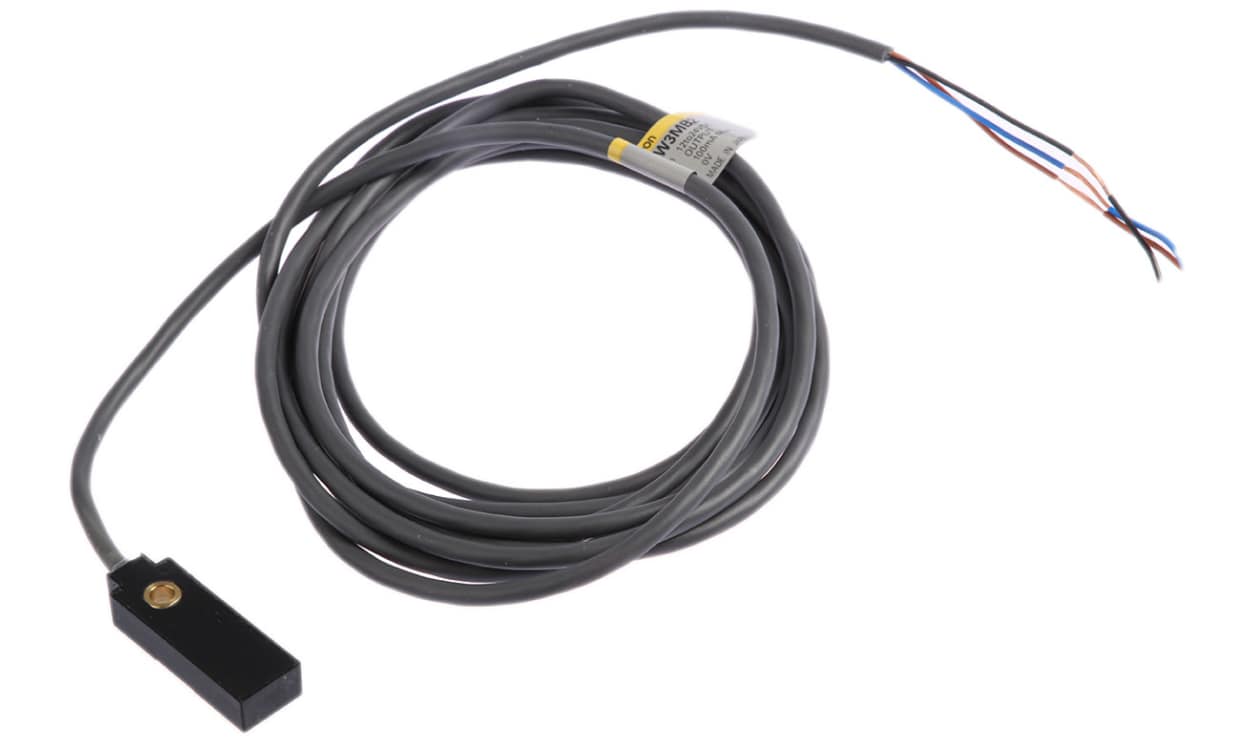

Name: Omron TL-W3MB2, Inductive Block Proximity Sensor, 3 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: TL-W3MB2
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron TL-W3MB2, Inductive Block Proximity Sensor, 3 mm Detection, PNP NC, 12 → 24 V dc

Part Number : TL-W3MB2

Availability: Sold out

Detailed Description
Specifications

Omron TL-W Series Proximity Sensor, NC Output Function, IP67 - TL-W3MB2

This proximity sensor is designed for effective automation in various industrial settings. With inductive sensing capability, it detects objects without physical contact, making it suitable for environments with space constraints. Its robust ABS housing ensures durability, while the IP67 rating provides protection against dust and water ingress.

Features & Benefits

• 3mm detection range for precise sensing
• Operates within a supply voltage of 12 to 24V DC
• Flush mounting design optimises space usage
• Maximum switching frequency of 600Hz for quick response
• Reverse polarity protection prevents damage during installation

Applications

• Object detection in automation equipment
• Item presence detection in conveyor systems
• Position sensing in mechanical assembly lines
• Product detection in packaging machinery
• Proximity sensing for automation in robotics

Is installation straightforward?

Yes, the pre-cabled design simplifies the installation process.

What is the maximum current rating the sensor can handle?

It can handle a maximum switching current of 100mA.

Brand	Omron
Sensor Technology	Inductive
Body Style	Block
Detection Range	3 mm
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	27mm
IP Rating	IP67
Mounting Type	Flush
Width	10mm
Housing Material	ABS
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Reverse Polarity Protection	Yes
Switching Frequency	600 Hz
Series	TL-W
Standards Met	CE
