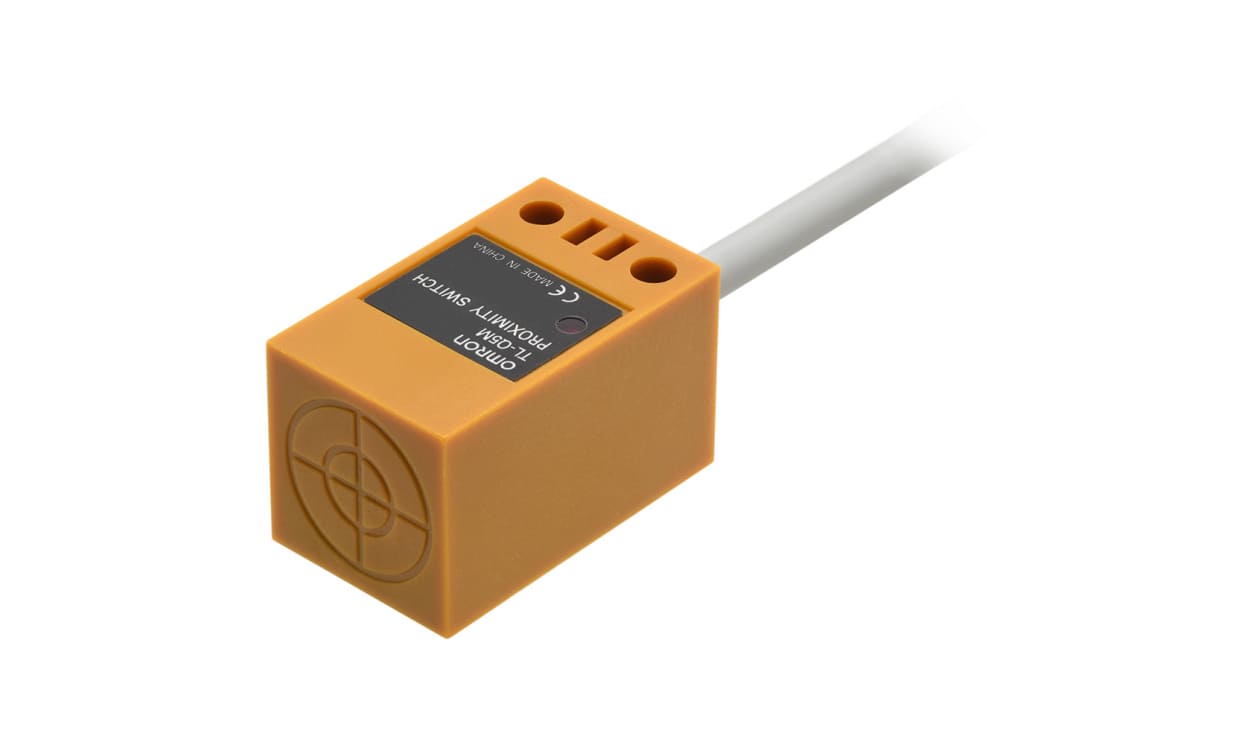

Omron TL-Q5MD1 2M, Inductive Block Proximity Sensor, 5 mm Detection, 2-Wire NO, 12 → 24 V dc

Name: Omron TL-Q5MD1 2M, Inductive Block Proximity Sensor, 5 mm Detection, 2-Wire NO, 12 → 24 V dc
Brand: OMRON
SKU: TL-Q5MD1 2M
Availability: OutOfStock

Part Number : TL-Q5MD1 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron TL-Q Series Proximity Sensor, 5mm Detection Range, 2-Wire Output Type - TL-Q5MD1 2M

This proximity sensor is an inductive device designed for precision in automation and control systems. With a compact block design, it measures 32mm in length and 17mm in both width and depth. The sensor boasts a detection range of 5mm, making it an ideal choice for applications that require accurate sensing capabilities within confined spaces.

Features & Benefits

• Operates within a supply voltage range of 12 to 24 V DC
• Features a 2-wire connection for simplified wiring
• Non-flush mounting design facilitates easy installation
• Capable of switching frequencies up to 500Hz for rapid response
• Short circuit overload protection enhances durability and safety

Applications

• Used for non-contact detection in automated machinery
• Ideal for requiring precise positioning
• Utilised in various electrical and mechanical integration tasks
• Compatible with systems that demand compact sensor solutions

What type of materials can be detected by the sensor?

The inductive sensor is primarily designed to detect metallic objects, which is suitable for applications in various industrial settings. However, it will not detect non-metallic materials such as wood or plastic.

How does the IP67 rating affect its usability in outdoor applications?

The IP67 rating ensures complete protection against dust ingress and allows the sensor to withstand temporary immersion in water, making it suitable for outdoor environments as it can operate effectively in wet conditions.

What is the maximum switching current this sensor can handle?

The sensor can manage a maximum switching current of 100mA, which allows it to interface with various devices while ensuring reliable operation under load.

Brand	Omron
Sensor Technology	Inductive
Detection Range	5 mm
Body Style	Block
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	32mm
Mounting Type	Non-Flush
Width	17mm
Housing Material	ABS
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	500 Hz
Switching Current	100 mA
Maximum Operating Temperature	+70°C
Standards Met	CE
