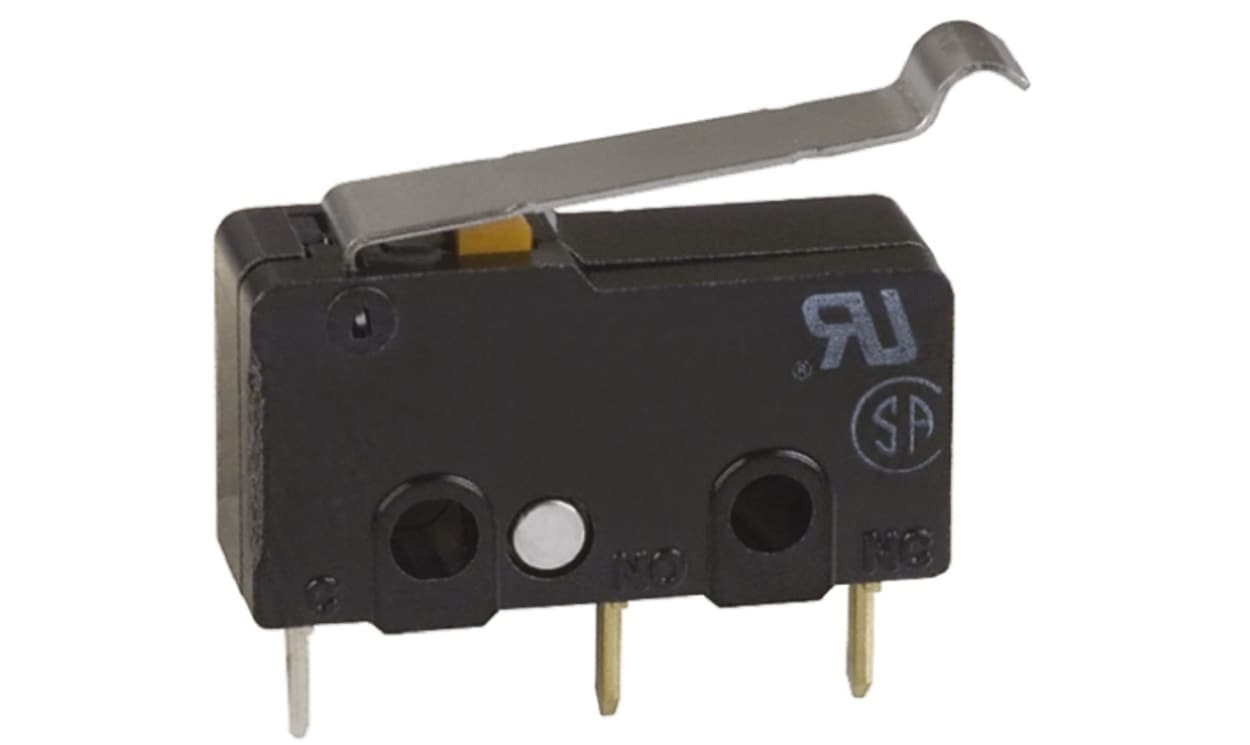

OMRON SS-01GL13-FD | Simulated Roller Lever Micro Switch | 100 mA @ 30 V dc, SPDT, PCB Terminal
OMRON's SS-01GL13-FD is an SPDT micro switch combining a simulated roller lever actuator, PCB terminals and a 100 mA at 30 V dc contact rating. This PCB-terminal version is fitted with gold alloy contacts. Actuation needs 0.16 N, with release at 0.02 N.
- Contact configuration: SPDT (single-pole double-throw)
- Temperature range -25 to +85 °C
- 30 million operations mechanical life
- Protection class IP40
- Contact rating: 100 mA at 30 V dc
- Detailed Description
- Specifications
Omron SS Subminiature Basic Switch (100 mA)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available
| Brand | Omron |
| Actuator Type | Simulated Roller Lever |
| Terminal Type | PCB |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 100 mA @ 30 V dc |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Gold Alloy |
| Mechanical Life | 30000000Operations |
| Operating Temperature Range | -25 → +85 °C (-13 to 185 °F) |
| Operating Force | 0.16 N |
| Release Force | 0.02N |
