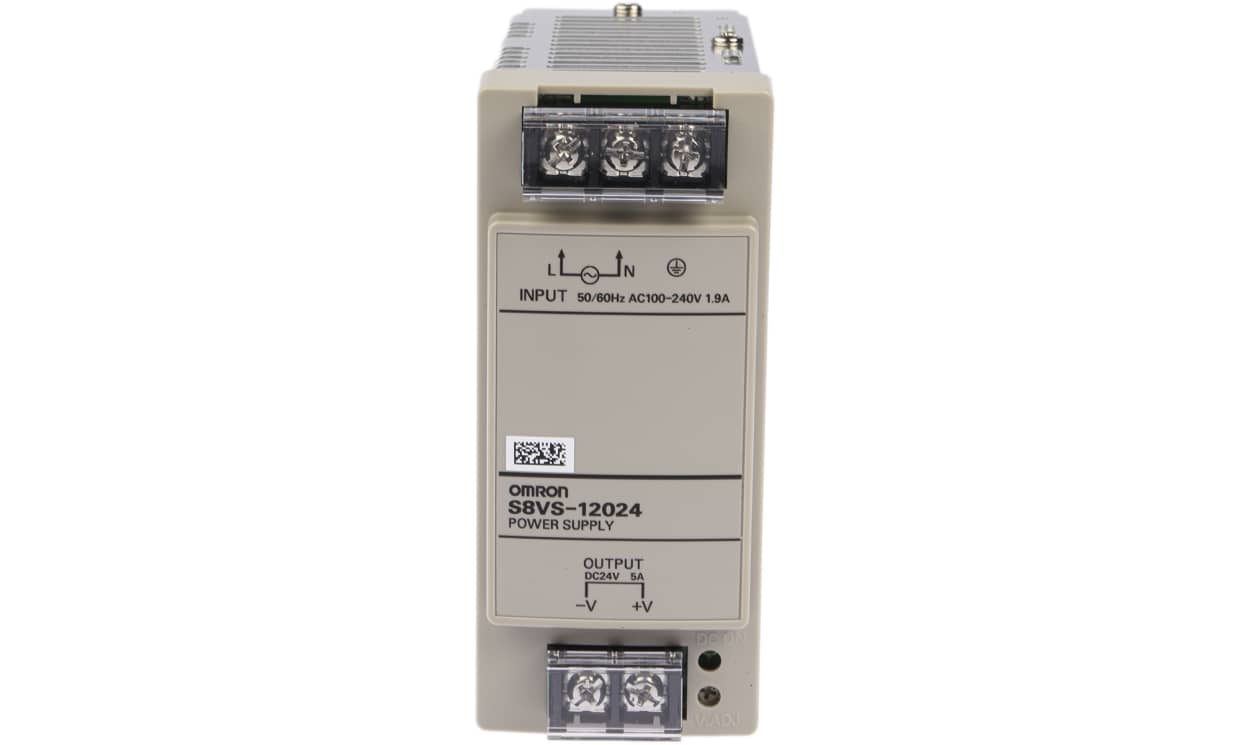

Name: Omron S8VS-12024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W
Brand: OMRON
SKU: S8VS-12024
Availability: OutOfStock

Omron S8VS-12024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VS-12024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

Part Number : S8VS-12024

Availability: Sold out

Detailed Description
Specifications
Downloads

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

• 90-W models have an indication monitor that conforms to UL Class 2 Output standards
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display

Note

Approvals

OMRON DIN Rail Power Supply, 1.5% Load Regulation, Screw Terminals - S8VS Series - S8VS-12024

Want a trusty way of running electrical appliances in household, commercial or industrial settings? Choose this DIN rail power supply from OMRON. Thanks to its wide input voltage ranges of 85 to 264V AC and 80 to 370V DC, it's a practical pick for powering your DC kit. As it steps down any voltage in its input range to a single carefully controlled 24V DC output, you can use it to run a single bit of sensitive equipment. This unit's 87% efficiency tells you it's economical with energy and produces little waste heat. That means there's no need for a fan or heatsink to keep it cool.

Features & Benefits

• Snap-on mounting mechanism makes it a breeze to fit to a 35mm DIN rail with no specialist tools
• Resists shock and vibration, so is a safe bet for installation near moving machinery
• Tight load regulation of 1.5% means you get close control over output values

Applications

• Building automation
• Domestic appliances
• HVAC systems

What's the benefit of this unit's screw terminals?

Thanks to the power supply's screw terminals, you'll find it's a piece of cake to achieve robust electrical connections without overtightening.

Approvals

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1, EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	5A
Dimensions	121.3 x 50 x 119.5mm
Width	50mm
Height	120.4mm
Depth	121.2mm
MTBF	135000h
Maximum Temperature	+60°C
Mounting Type	DIN Rail Mount
Ripple And Noise	60mV Pk-Pk
Output Voltage Adjustment Range	-10 → +15%
Standards Met	CE, cULus

Omron S8VS-12024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

DOWNLOAD CATALOG

S8VS-12024 Omron S8VS Transition to S8VK 0900766b815dfb84

S8VS-12024 Brochure - Perfect Power Supply Solutions A700000010489390
