Omron S8VK-G06012, S8VK-G DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc Output, 4.5A

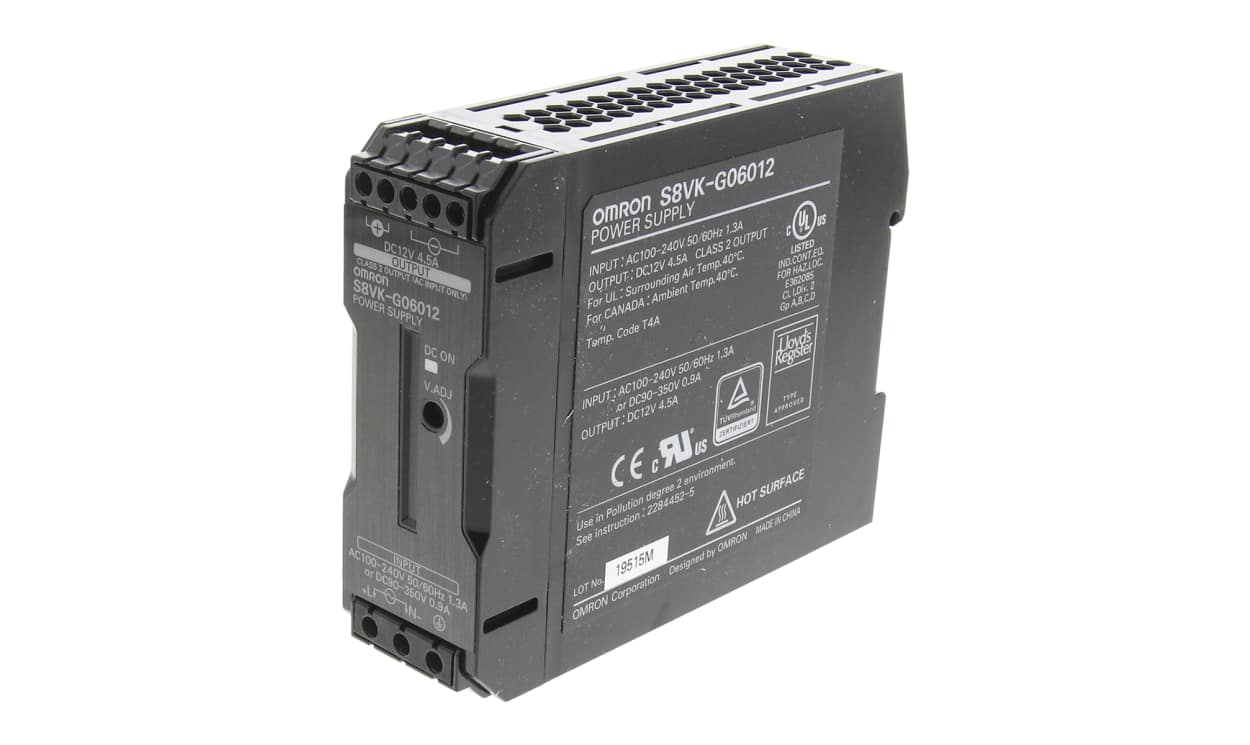

Name: Omron S8VK-G06012, S8VK-G DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc Output, 4.5A
Brand: OMRON
SKU: S8VK-G06012
Availability: OutOfStock

Part Number : S8VK-G06012

Book type power supply, Pro, 60 W, 12 VDC, 4.5A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

S8VK-G Series Standard Single Phase Switch Mode Power Supply 15W to 480W

S8VK-G Series of standard Single Phase, switch mode power supplies are hard wearing, compact, easy to use and are excellent working in tough environments. The S8VK-G has a compact design, safe, reliable, easy to mount, simply click onto a standard DIN Rail. The S8VK runs in stable conditions for a long time over wide temperature ranges -40°C to 70°C. Excellent resistance to vibration thanks to the DIN Rail mounting clip, two sets of DC output terminals. International safety standards including, marine applications, this power supply is provides it all. The compact S8VK-G power supply provides high-power density in a compact design with reduced costs thanks to minimum wiring requirements.

Features and Benefits.

• Compact power supply

• Single phase

• Switch mode

• Quick and easy installation

• Easy click attachment to DIN Rails

• High resistance to tough environments

• Safe

• Reliable

• Excellent vibration resistance

• 2 sets of DC output terminals

• High-power density reduced costs

• Minimal wiring required

• Run for long periods within stable environments

• International safety standards including marine applications

• Universal input for international applications 100 V ac to 240 V ac.

• Temperature range -40°C to 70°C

• Power boost function at 120%

• RoHS compliant

Power Ratings Available.

15 W to 480 W

Output Voltages Available.

5 V dc to 48 V dc

What is a DIN Rail Mounted Power Supply?

A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminium but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail.

What is A Switch Mode Power Supply?

Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

What is Single Phase?

A single phase power supply is simply a power supply that provides alternating current electric power within systems where the voltages are different. A single phase system normally has one neutral and power wire and the current passes between the 2 wires.

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and mounting clip ensuring vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Storage temperature range is -40°C to 80°C with no condensation or icing.

Storage humidity 0% to 95%.

Approvals

RoHS Compliant

Standards

UL508/60950-1,CSA C22.2 No. 107.1/60950-1,ANSI/ISA 12.12.01, EN50178, EN60950-1, EN61558-2-16, EMS: EN 61204-3, EMI: EN61204-3 Class B, EN 60204-1 PELV, 15 W/30 W/60 W models conform to UL Class 2 Output Standards.

Omron S8VK-G Series DIN Rail Power Supply, 12V DC Output Voltage, 4.5A Output Current - S8VK-G06012

This DIN rail power supply offers a robust solution for a variety of industrial applications. Designed for efficiency, it features a compact form factor measuring 90 x 32 x 110mm. With an input voltage tolerance of 100 to 240V AC or 90 to 350V DC, it efficiently delivers 12V DC at 4.5A, suitable for demanding environments.

Features & Benefits

• Universal AC/DC input voltage for diverse applications
• 85% efficiency reduces energy consumption and costs
• Wide temperature range from -40°C to +70°C ensures reliability
• Compact design ideal for installation in tight spaces
• Overload and overvoltage protection enhances operational safety
• Long MTBF of 590,000 hours indicates high reliability

Applications

• Ideal for automation and control systems
• Suitable for powering sensors and other low-voltage devices
• Utilised in factory automation and electrical equipment
• Effective in telecommunications and data processing setups
• Compatible with embedded systems requiring stable power supplies

How does the efficiency of this unit impact operational costs?

With an efficiency rating of 85%, this unit minimises energy loss, resulting in lower operational costs over time.

What measures are in place to protect against overcurrents?

It features built-in overload protection, automatically activating when load current exceeds 121% of the rated capacity, safeguarding connected equipment.

Can this unit operate in extreme temperatures?

Yes, it functions within a wide temperature range of -40°C to +70°C, making it suitable for harsh industrial environments.

What power rating options are available if I require higher output?

This series includes multiple options ranging from 15W to 480W, catering to various power needs in industrial applications.

Brand	Omron
Series	S8VK-G
Type	DIN Rail Power Supply
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Number of Outputs	1
Input Voltage	100 → 240 V ac / 90 → 350V dc
AC or DC Output Voltage	dc
Output Voltage	12V dc
Output Current	4.5A
Dimensions	90 x 32 x 110mm
Height	90mm
Depth	110mm
Width	32mm
Efficiency	85%
Ripple And Noise	150mV
Maximum Temperature	+70°C
Minimum Temperature	-40°C
MTBF	590000h
Mounting Type	DIN Rail Mount

Book type power supply, Pro, 60 W, 12 VDC, 4.5A, DIN rail mounting

Omron S8VK-G06012, S8VK-G DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 12V dc dc Output, 4.5A
