Omron S8VK-G03024, S8VK-G Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

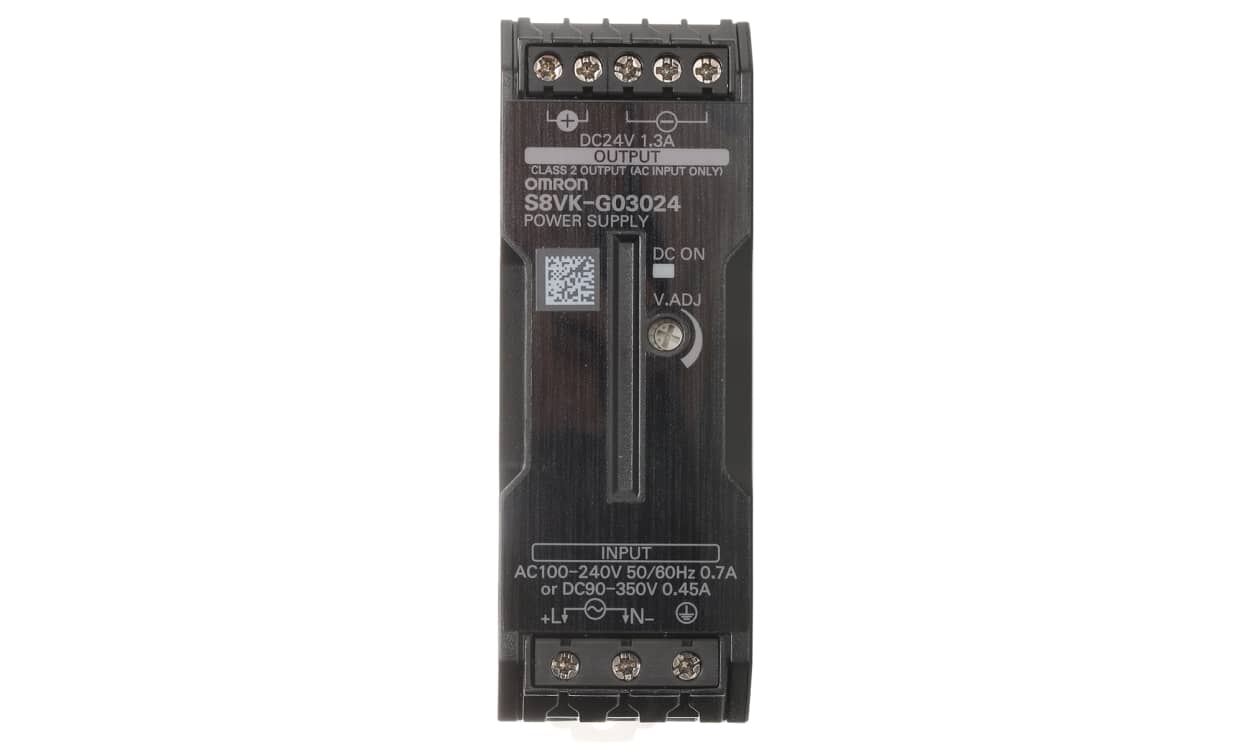

Name: Omron S8VK-G03024, S8VK-G Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc
Brand: OMRON
SKU: S8VK-G03024
Availability: OutOfStock

Part Number : S8VK-G03024

Book type power supply, Pro, 30 W, 24VDC, 1.3A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

S8VK-G Series Standard Single Phase Switch Mode Power Supply 15W to 480W

S8VK-G Series of standard Single Phase, switch mode power supplies are hard wearing, compact, easy to use and are excellent working in tough environments. The S8VK-G has a compact design, safe, reliable, easy to mount, simply click onto a standard DIN Rail. The S8VK runs in stable conditions for a long time over wide temperature ranges -40°C to 70°C. Excellent resistance to vibration thanks to the DIN Rail mounting clip, two sets of DC output terminals. International safety standards including, marine applications, this power supply is provides it all. The compact S8VK-G power supply provides high-power density in a compact design with reduced costs thanks to minimum wiring requirements.

Features and Benefits.

• Compact power supply

• Single phase

• Switch mode

• Quick and easy installation

• Easy click attachment to DIN Rails

• High resistance to tough environments

• Safe

• Reliable

• Excellent vibration resistance

• 2 sets of DC output terminals

• High-power density reduced costs

• Minimal wiring required

• Run for long periods within stable environments

• International safety standards including marine applications

• Universal input for international applications 100 V ac to 240 V ac.

• Temperature range -40°C to 70°C

• Power boost function at 120%

• RoHS compliant

Power Ratings Available.

15 W to 480 W

Output Voltages Available.

5 V dc to 48 V dc

What is a DIN Rail Mounted Power Supply?

A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminium but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail.

What is A Switch Mode Power Supply?

Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

What is Single Phase?

A single phase power supply is simply a power supply that provides alternating current electric power within systems where the voltages are different. A single phase system normally has one neutral and power wire and the current passes between the 2 wires.

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and mounting clip ensuring vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Storage temperature range is -40°C to 80°C with no condensation or icing.

Storage humidity 0% to 95%.

Approvals

RoHS Compliant

Standards

UL508/60950-1,CSA C22.2 No. 107.1/60950-1,ANSI/ISA 12.12.01, EN50178, EN60950-1, EN61558-2-16, EMS: EN 61204-3, EMI: EN61204-3 Class B, EN 60204-1 PELV, 15 W/30 W/60 W models conform to UL Class 2 Output Standards.

OMRON DIN Rail Power Supply, 86% Efficiency, IP20 Rating - S8VK-G Series - S8VK-G03024

When you're looking for a PSU to handle high-load-drawing applications with motors and pumps, opt for this DIN rail power supply from OMRON. It accepts any voltage across a universal range from 85 to 264V AC or 90 to 350V DC and steps it down to a carefully controlled output of 24V DC. This makes it a stable choice for running sensitive battery-supplied equipment. The unit is also a practical pick for starting up tricky loads thanks to its handy 120% power boost function that helps you get going quickly. As it mounts onto a DIN rail, you get the benefit of super-simple installation – just snap it onto your 35mm rail with no need for tools.

Features & Benefits

• IP20 rating indicates it's touch-proof, so doesn't pose a shock risk
• 86% efficiency means it produces very little waste heat and doesn't need add-ons to keep cool
• Mean time between failures of 580,000 hours indicates it's a long-lasting choice

Applications

• Telecommunications
• Process control
• Instrumentation and measurement devices

Is this PSU safe for use in harsh environments?

Yes. This DIN rail power supply resists shock and vibration, so it's safe to install near moving machinery and is a good shout for use in harsh settings.

Brand	Omron
Series	S8VK-G
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac, dc
Input Voltage	100 → 240 V ac / 90 → 350V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	1.3A
Dimensions	90 x 32 x 90mm
Height	90mm
Width	32mm
Depth	90mm
Maximum Temperature	+70°C
Load Regulation	0.8%
Standards Met	CE, CSA Certified, UL
Minimum Temperature	-40°C
Efficiency	86%
Mounting Type	DIN Rail Mount

Book type power supply, Pro, 30 W, 24VDC, 1.3A, DIN rail mounting
