Name: Omron S82Y-FSC150DIN, Bracket Kit, for use with S8FS Series Switch Mode Power Supply, S8JC Series Power Supply, S82Y Series
Brand: OMRON
SKU: S82Y-FSC150DIN
Availability: OutOfStock

Part Number : S82Y-FSC150DIN

Mounting bracket, DIN-rail, 75W, 100W, 150W

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Switch Mode Power Supply S8FS-C Series

Omron S8FS-C series of switch mode power supplies are a reliable basic power supply with enhanced abnormal over-voltage resistance plus lightening surge protection providing a stable operation. A quality electrolytic capacitor has a longer life 4 times that of previous models all adding to the cost effectiveness of this series of power supplies. The series are quick and easy to DIN rail mount and cover a range of input voltages of 100 V AC to 240 Vac and 200 V ac to 240 Vac.

Features and Benefits.

• Basic switch mode power supply
• Reliable
• DIN Rail mountable, quick and easy (brackets not included)
• Stable operation
• Abnormal over-voltage resistance
• Lightening surge protection
• Quality electrolytic capacitor, longer life
• Cost effective
• Green output indicator
• Overvoltage and overload protection
• Forward and upward facing terminal blocks
• Natural air cooling
• Harmonic current emissions – EN 61000-3-2
• CE, UL approved

S8FS-C01505J
15 W, 100 V ac to 240 V ac input voltage, 5 V dc output, 3 A output current, forward facing terminal block. Efficiency 80%.

S8FS-C01524J
15 W, 100 V ac to 240 V ac input voltage, 24 V dc output, 0.7 A output current, forward facing terminal block. Efficiency 87%.

S8FS-C05024
50 W, 100 V ac to 240 V ac input voltage, 24 V dc output, 2.2 A output current, upward facing terminal block. Efficiency 86%.

S8FS-C10024
100 W, 100 V ac to 120 V ac / 200 V ac to 240 V ac, 24 V dc output, 4.5 A output current, upward facing terminal block. Efficiency 87%.

Safety and Storage.

Do not use an inverter output for the power supply.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.
Storage temperature -40°C to 85°C. No condensation or icing.
Operating temperature 20°C to 90°C. Storage humidity 10% to 95%.

Power supply life expectancy 10 years.

Easy mounting of the power supplies is possible with the DIN Rail mounting brackets which are available separately.

Mounting bracket S82Y-FSC015DIN fits power rating 15 W
Mounting bracket S82Y-FSC050DIN fits power rating 35 W and 50 W
Mounting bracket S82Y-FSC150DIN fits power rating 75 W, 100 W and 150 W

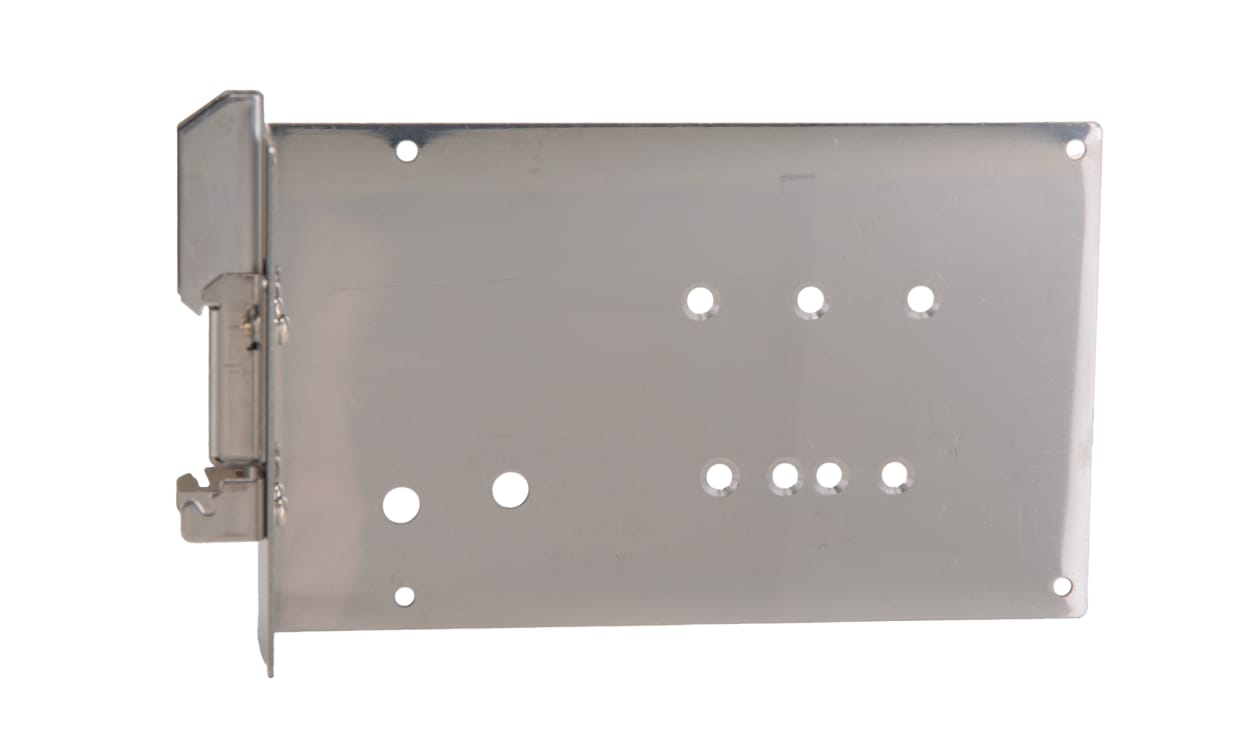

Omron S82Y Series Bracket Kit, Mounting Bracket Type, DIN Rail Mounting Style - S82Y-FSC150DIN

This bracket kit serves as a vital accessory for reliable power supply installations. Designed specifically for use with S8FS and S8JC series power supplies, it features a robust DIN rail mounting style. The kit is engineered to ensure secure and efficient securing of power supplies, making it an essential component in electrical and automation setups.

Features & Benefits

• Robust design ensures durable and long-lasting performance
• DIN rail mount style simplifies installation and improves accessibility
• Designed for use with S8FS and S8JC series power supplies
• Screw terminal type allows secure wiring connections
• Supports efficient power management and operational reliability

Applications

• Utilised for mounting S8FS series accessories in control cabinets
• Suitable for integration with S8JC series power supply units
• Ideal for setups requiring screw terminal mounting solutions
• Employed in automation and electrical system installations
• Essential for stable and secure power supply arrangements

How does the bracket kit enhance the installation of power supplies?

The mounting bracket provides a secure foundation, allowing power supplies to be firmly positioned on DIN rails, facilitating easier access and maintenance.

Is this bracket compatible with other power supply models?

While it is optimised for the S8FS and S8JC series, its design might allow compatibility with similar models, depending on the specifications.

What materials are used in the construction of this bracket?

The bracket is manufactured from high-quality materials, which contribute to its strength and durability under various operational conditions.

What type of electrical connections can be made using this bracket?

The bracket supports screw terminal connections, enabling users to make reliable and secure electrical wiring connections.

How does this bracket support efficient power management?

By securely mounting power supplies, the bracket minimises movement that could lead to loose connections, ensuring stable power delivery during operation.

Brand	Omron
Accessory Type	Mounting Bracket
For Use With	S8FS Series Switch Mode Power Supply, S8JC Series Power Supply
Series	S82Y
Terminal Type	Screw
Mounting Style	DIN Rail Mount

Mounting bracket, DIN-rail, 75W, 100W, 150W
