Omron OS32C-SP1 VER2, 0S32C Series Laser Scanner Laser Scanner, 30 mm, 40 mm, 50 mm, 70 mm Resolution

Name: Omron OS32C-SP1 VER2, 0S32C Series Laser Scanner Laser Scanner, 30 mm, 40 mm, 50 mm, 70 mm Resolution
Brand: OMRON
SKU: OS32C-SP1 VER2
Availability: OutOfStock

Part Number : OS32C-SP1 VER2

Availability: Sold out

Detailed Description
Specifications
Downloads

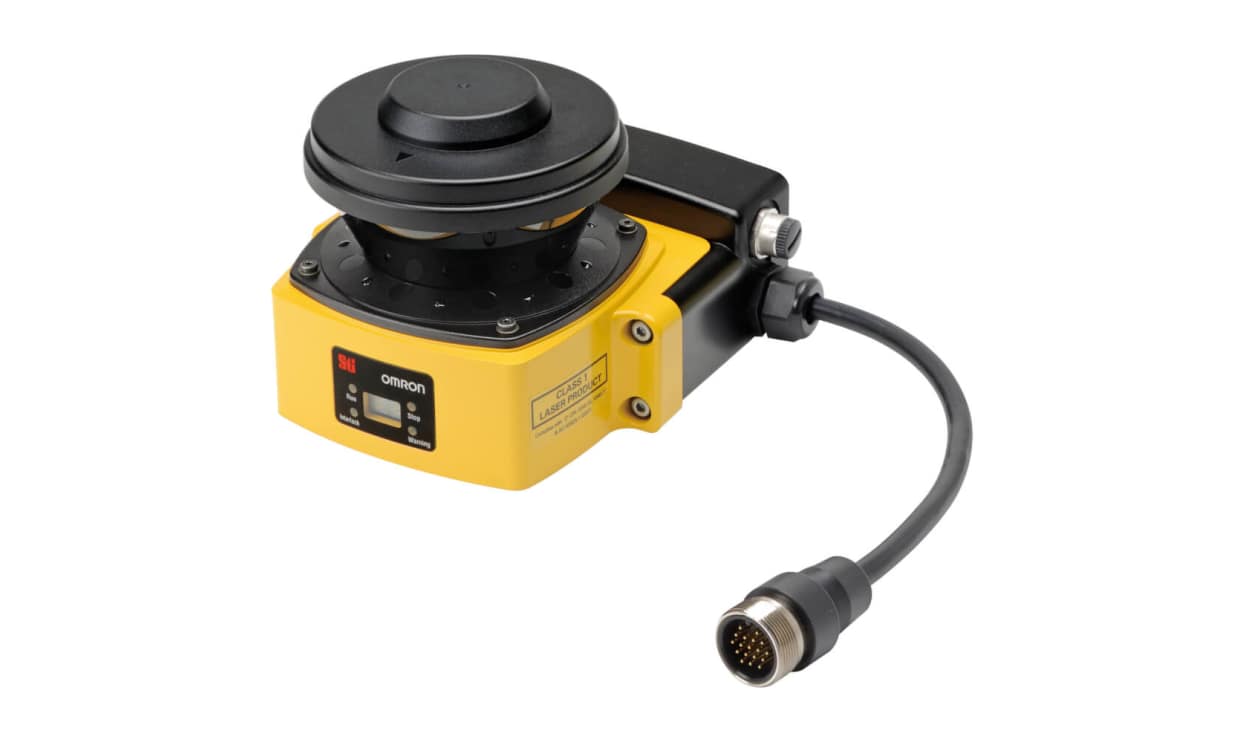

Omron 0S32C Series Laser Scanner, 30mm Beam Resolution, 3m Maximum Scanning Distance - OS32C-SP1 VER2

This laser scanner is a Type 3 safety laser scanner designed for industrial applications. With dimensions of 133mm in width, 105mm in height, and 143mm in length, it offers reliable performance for safety monitoring and distance measurement. It supports a maximum scanning distance of 3m and a minimum distance of 1.75m, making it suitable for a variety of detection applications.

Features & Benefits

• Provides configurable object resolution of 30mm to 70mm for accurate hand and arm detection
• Supports up to 70 safety and warning zone combinations for dynamic environments
• Integral reference boundary monitoring to prevent unauthorised scanner repositioning
• Fast response times, ranging from 80ms to 680ms for prompt safety actions
• Equipped with EtherNet/IP for easy connection to monitoring devices
• IP65 rating ensures durability in harsh industrial conditions

Applications

• Utilised in automated machinery for personnel protection
• Integrated into robotic cells to ensure worker safety
• Employed in assembly lines for effective hazard detection
• Used in warehouses to monitor safe zones around forklifts
• Suitable for perimeter monitoring on construction sites

How can I monitor the scanner's performance remotely?

You can connect the scanner using EtherNet/IP to compatible devices, allowing you to monitor system status and measurement data effortlessly.

What measures does this device take to ensure safety against incorrect positioning?

It incorporates a reference boundary monitoring feature designed to alert you if there are any unauthorised changes in its position, ensuring continuous operational safety.

Can it operate in varying environmental conditions?

Yes, it is designed to function in ambient temperatures from -10°C to 50°C, accommodating diverse working environments.

What power supply requirements does it have?

The scanner operates on a 24V DC supply, with specified tolerances for reliable performance even in fluctuating voltage conditions.

Are there options for customising detection zones?

Yes, it supports up to 70 sets of safety and warning zone combinations, allowing you to tailor its functionality to your specific application needs.

Brand	Omron
Series	0S32C
Beam Resolution	30 mm, 40 mm, 50 mm, 70 mm
Component Type	Scanner
Safety Type	3
SIL IEC 61508	2
PL EN ISO 13849-1	d
Minimum Scanning Distance	1.75m
Maximum Scanning Distance	3m
Maximum Response Time	680 (On to Off) ms, 780 (Off to On) ms
Length	143mm
Height	105mm
Supply Voltage	24 V dc
Features	One Safety Zone, Two Warning Zone, Up to 70 Combinations
Terminal Type	M12 Connector
Width	133mm
