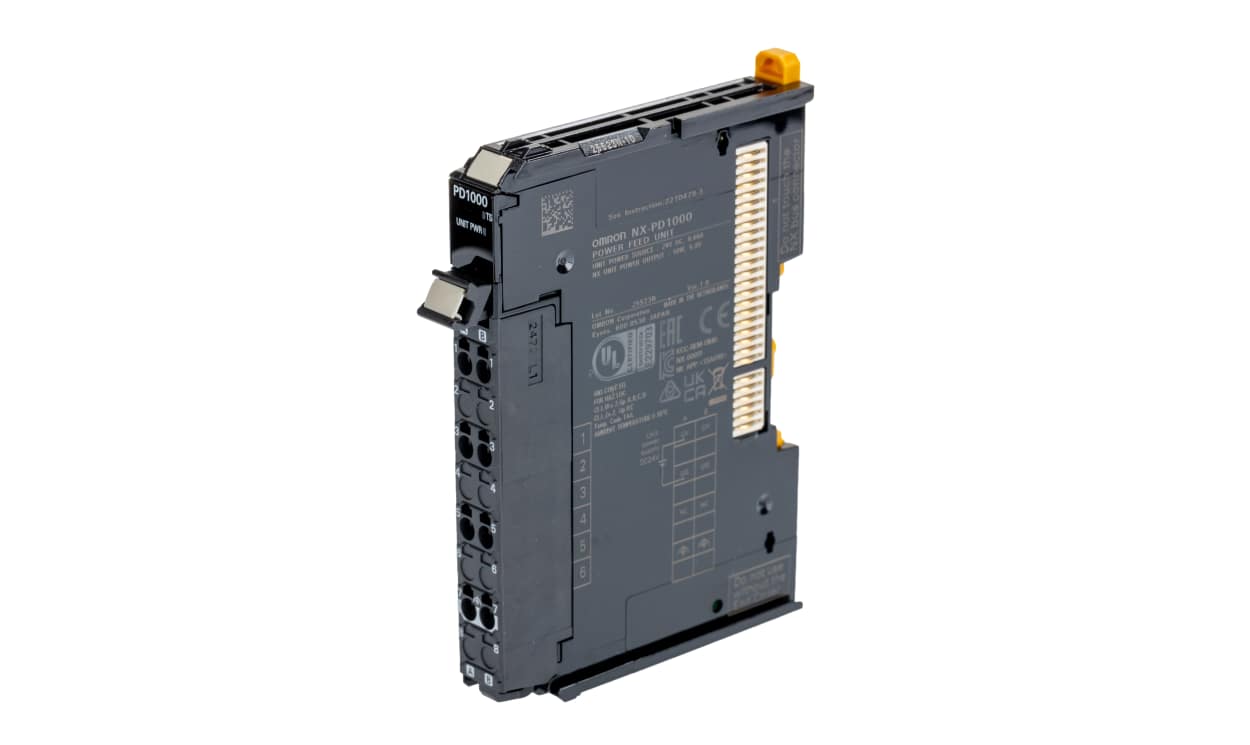

Omron NX-PD1000, NX Series I/O Unit for Use with EtherCAT Coupler Unit, NX Series CPU Unit

Name: Omron NX-PD1000, NX Series I/O Unit for Use with EtherCAT Coupler Unit, NX Series CPU Unit
Brand: OMRON
SKU: NX-PD1000
Availability: OutOfStock

Part Number : NX-PD1000

NX bus power supply unit, 24 V DC input, non-isolated, screwless push-in connector, 12 mm wide

Availability: Sold out

Detailed Description
Specifications
Features

Omron NX Bus Power Supply Unit, 1 I/O Connectors, IP20 - NX-PD1000

This I/O unit provides robust power solutions for industrial automation applications. Designed specifically for the Omron NX series, it enhances data and power connectivity, essential for optimising communication in automation systems. With EtherCAT compatibility, this unit ensures seamless integration with various controllers for effective management of I/O devices.

Features & Benefits

• Provides additional power supply for remote I/O terminals
• Space-saving design effectively utilises installation area
• Screwless terminal block simplifies wiring, enhancing ease of use
• Supports expansion beyond standard power supply limits
• Facilitates flexible I/O power distribution for connected devices
• Ground terminal expansion improves system stability

Applications

• Works with EtherCAT couplers to enhance communication
• Utilised in NX series setups for reliable power supply
• Integrated into automation systems for proficient I/O management
• Serves as an additional power source for connected sensors
• Applied across industries seeking efficient power solutions

What type of power supply is required for optimal performance?

A 24V DC power supply is required, within the range of 20.4 to 28.8 V DC.

Can this unit be used with various CPU configurations?

Yes, it is compatible with multiple CPU units within the NX series.

How does this unit facilitate easier installation?

The screwless clamp terminal block allows for quick and secure connections.

Is there a maximum current capacity for the connected devices?

The maximum NX bus power supply capacity is 10W.

What installation orientations are recommended for this unit?

It can be installed upright or in six orientations when connected to specific units.

Brand	Omron
Accessory Type	Additional NX Unit Power Supply Unit
Series	NX
For Use With	EtherCAT Coupler Unit, NX Series CPU Unit
Termination	Push-In
Dimensions	12 x 100 x 71 mm

NX bus power supply unit, 24 V DC input, non-isolated, screwless push-in connector, 12 mm wide
