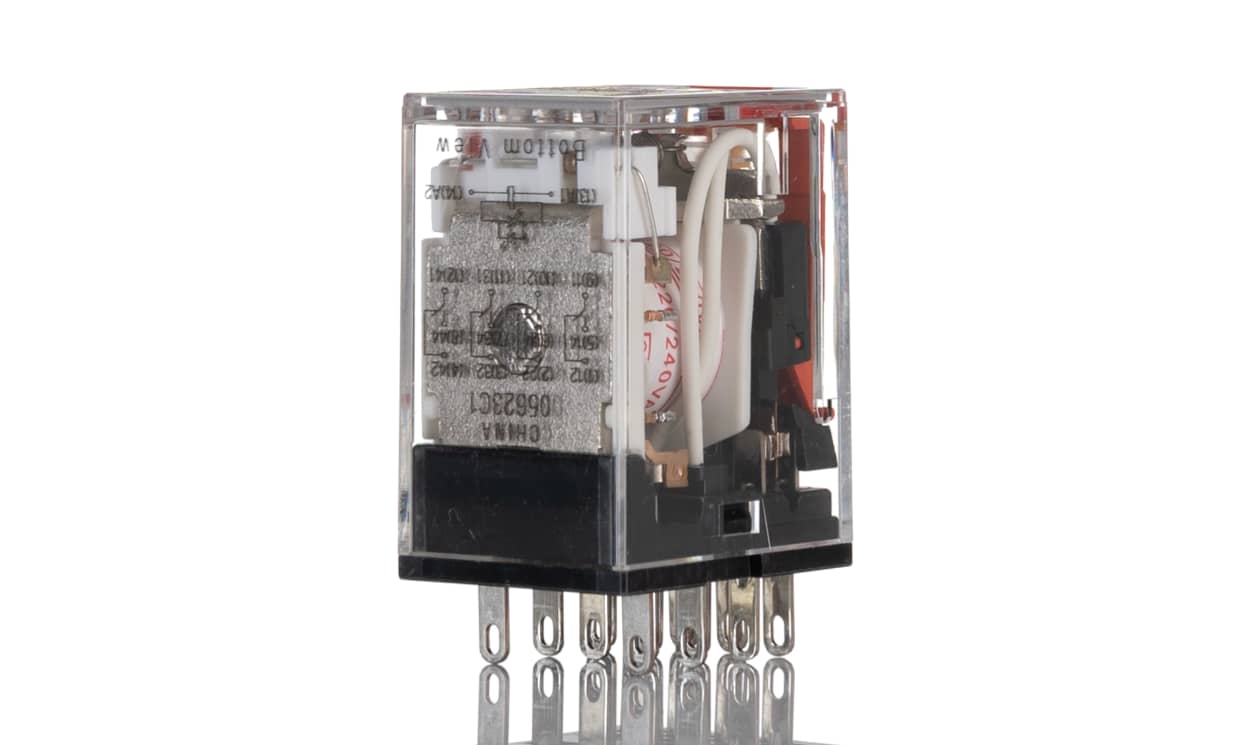

Omron MY4IN-GS-R AC220/240, Plug In Latching Power Relay, 220 → 240V ac Coil, 6A Switching Current, 4PDT

Name: Omron MY4IN-GS-R AC220/240, Plug In Latching Power Relay, 220 → 240V ac Coil, 6A Switching Current, 4PDT
Brand: OMRON
SKU: MY4IN-GS-R AC220/240
Availability: OutOfStock

Part Number : MY4IN-GS-R AC220/240

Relay, plug-in, 14-pin, 4PDT, 6 A, mechanical & LED indicators, lockable push test button, 220/240 VAC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, 900mW Coil Power, 15.92kΩ Coil Resistance - MY Series - MY4IN-GS-R AC220/240

Ready to flip the switch on your industrial devices? Install this power relay from OMRON. It controls heavy electrical flows of 220 to 240V AC to safely boot up and turn off your system. The silver contacts stand firm against corrosion and wear, giving you a reliable connection you can bank on. Thanks to a 20ms operation time, you get quick-fire responses you can trust. Use this relay to bring building automation and control systems like motors, security or logical access controllers to life.

Features & Benefits

• Integrated LED indicator makes monitoring and troubleshooting a cinch
• Safe to use in demanding settings thanks to a -55°C to +70°C operating temperature range
• Measurements of 36 (H) x 21.5 (W) x 28mm (L) take up little space in busy designs
• Consumes just 0.9W for energy-efficiency

Applications

• Automotive industry
• Telecommunications equipment
• Assembly lines
• Medical devices

What mounting methods are compatible with this relay?

You need a plug-in component to link this relay up to the rest of your system. You can use a socket (111-3063), screw terminal (196-6147) or screwless terminal (794-8218) to install it onto a DIN rail.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	220 → 240V ac
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	6A
Number of Poles	4
Latching	Yes
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	28mm
Coil Resistance	15.92 kΩ
Coil Power	900mW
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	2kV ac
Contact Material	Silver
Depth	36mm

Relay, plug-in, 14-pin, 4PDT, 6 A, mechanical & LED indicators, lockable push test button, 220/240 VAC
