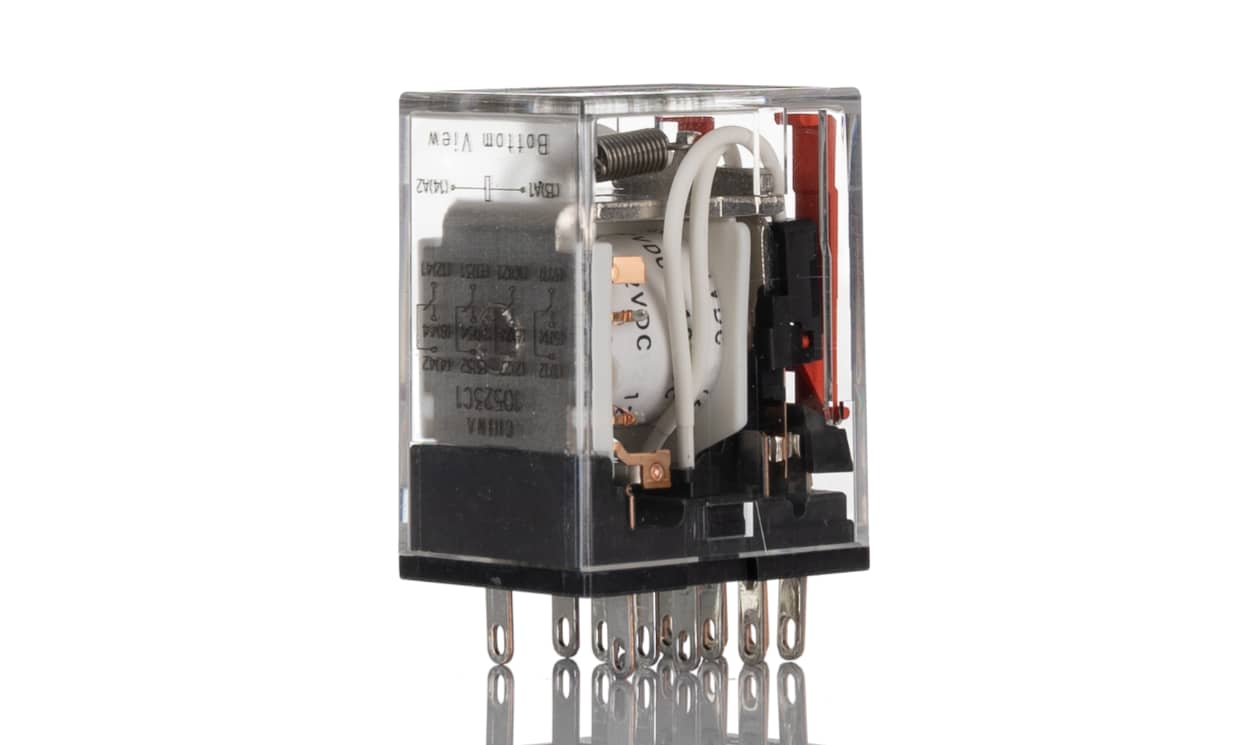

Name: Omron MY4-GS-R DC12, Plug In Power Relay, 12V dc Coil, 6A Switching Current, 4PDT
Brand: OMRON
SKU: MY4-GS-R DC12
Availability: OutOfStock

Omron MY4-GS-R DC12, Plug In Power Relay, 12V dc Coil, 6A Switching Current, 4PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY4-GS-R DC12, Plug In Power Relay, 12V dc Coil, 6A Switching Current, 4PDT

Part Number : MY4-GS-R DC12

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, 14-Pin Connector, 180W Switching Power - MY Series - MY4-GS-R DC12

Build your hardware's power distribution network in a flash with this power relay from OMRON. Thanks to its handy plug-in connectivity, it slips into a socket (264-7453) without the hassle of special tools. By handling up to 2,400 electrical operations an hour, the component makes light work of demanding control applications. A convenient four-pole design means it can handle many connections at once. Checking the relay's position is no problem, as its built-in mechanical indicators clearly show its switch status even without power.

Features & Benefits

• Compatible with solder mounting for versatile installation without a socket
• Handles current up to 6A to manage demanding loads
• Responds to signals in 20ms, providing snappy system control
• Power consumption of 900mW means it cuts down on energy use
• Insulating plastic housing prevents electric shocks

Applications

• Automotive industry
• Packing plants
• Metalworking facilities

What's the service life of this device?

This product lasts for up to 200,000 electrical operations, so it's a reliable choice for long-term switching.

Can I use this relay in wet applications?

Yes, its silver contacts resist corrosion, keeping energy rolling along in damp settings.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	6A
Number of Poles	4
Latching	No
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	28mm
Coil Resistance	165 Ω
Coil Power	900mW
Height	36mm
Isolation Coil To Contact	2kV ac
Minimum Operating Temperature	-55°C
Life	300000 cycles
