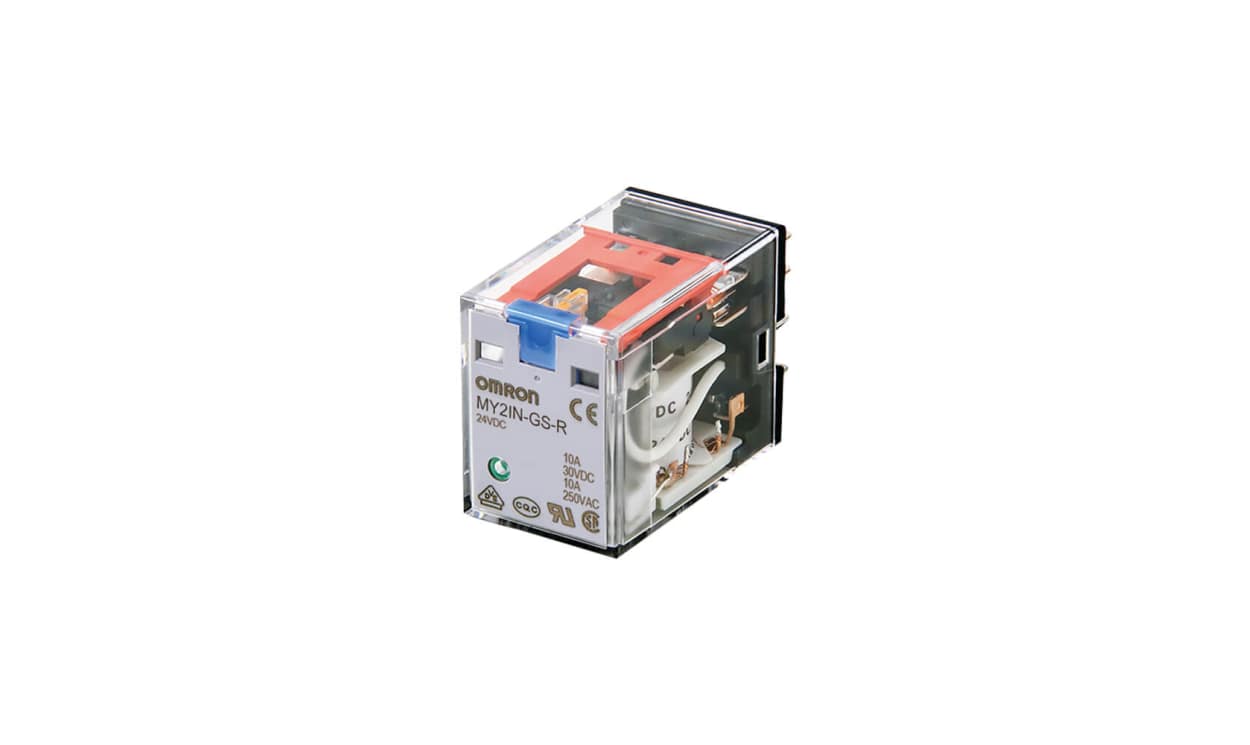

Name: Omron MY2IN-GS-R AC12, Plug In Latching Power Relay, 12V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MY2IN-GS-R AC12
Availability: OutOfStock

Omron MY2IN-GS-R AC12, Plug In Latching Power Relay, 12V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY2IN-GS-R AC12, Plug In Latching Power Relay, 12V ac Coil, 10A Switching Current, DPDT

Part Number : MY2IN-GS-R AC12

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, 250V AC/220V DC Maximum Switching Voltage, 46Ω Coil Resistance - MY Series - MY2IN-GS-R AC12

Keen to control the flow of electricity in your motors, heating equipment and lighting systems? Choose this power relay from OMRON to manage high-current loads and boost energy efficiency. When an electrical feed triggers the device, it switches your applications on in an instant. Thanks to the transparent casing, you can easily spot when something's wrong with the internal components. Once installed, you can test the relay using the lockable push button to ensure everything runs smoothly.

Features & Benefits

• Dimensions of 28 (L) x 21.5 (W) x 36mm (H) means it fits neatly into busy setups
• Highly conductive silver contacts for reliable signal transmission
• Dual-pole device handles two circuits to streamline your layout
• Plug-in mounting makes it quick and simple to fit

Applications

• HVAC systems
• Industrial generators
• Automated assembly and packaging operations
• Medical imaging devices
• Power distribution installations

At what temperatures can I use this power relay?

As it performs in temperatures between -55°C and +70°C, it's a safe bet in tough environments.

What's the lifespan of this power relay?

Thanks to a long lifespan of 500,000 cycles, you can be sure this is a long-lasting option.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	12V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	Yes
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	28mm
Coil Resistance	46 Ω
Coil Power	900mW
Height	36mm
Series	MY
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-55°C
Standards Met	CQC, CSA, IEC, UL
