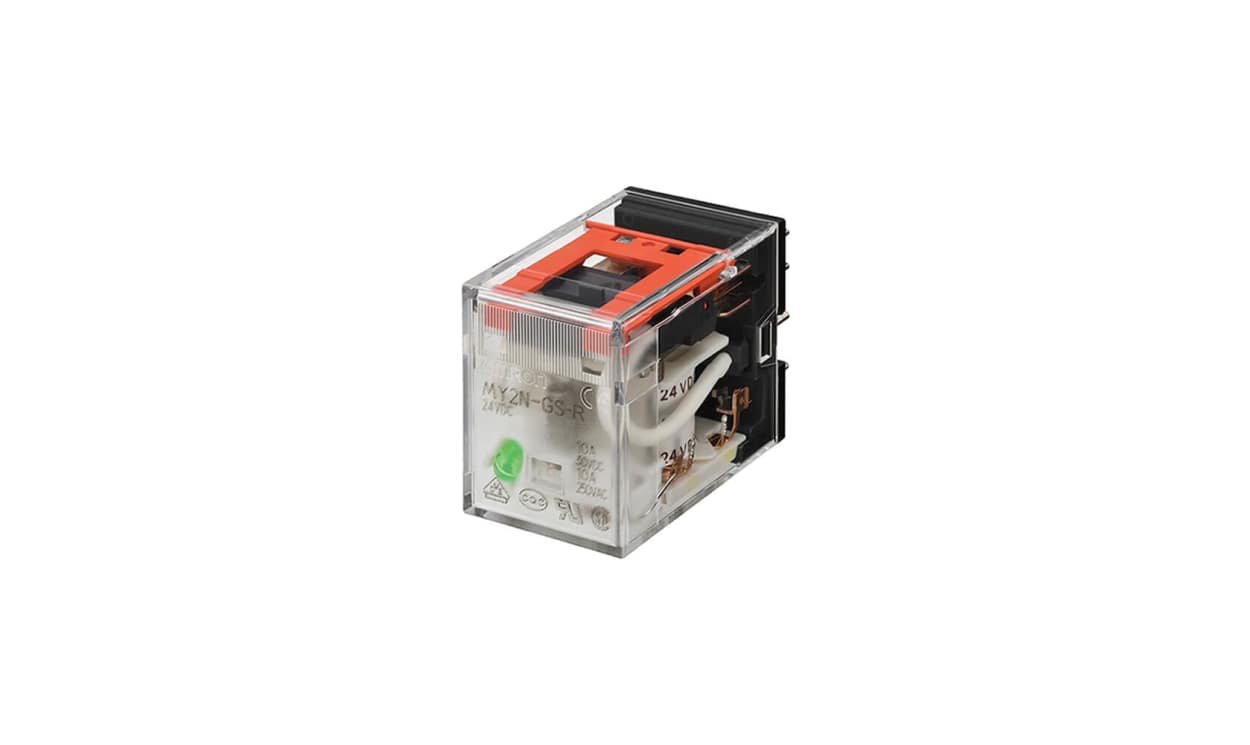

Name: Omron MY2-GS-R AC48, Plug In Power Relay, 48V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MY2-GS-R AC48
Availability: OutOfStock

Omron MY2-GS-R AC48, Plug In Power Relay, 48V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY2-GS-R AC48, Plug In Power Relay, 48V ac Coil, 10A Switching Current, DPDT

Part Number : MY2-GS-R AC48

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, Silver Contacts, 1,000MΩ Insulation Resistance - MY Series - MY2-GS-R AC48

Boost the responsiveness of your electrical system with this power relay from OMRON. When an electrical current is applied to its coil, it generates a magnetic field that attracts an armature against the force of its holding spring. This movement causes the contacts to close and open as needed, giving you precise on/off control of your appliance. With a maximum switching capacity of 2.5kVA and 300W, this unit handles the strain of heavy-duty equipment like heating systems. It comes with a handy test button that's lockable to prevent tampering.

Features & Benefits

• LED and mechanical indicators make it easy to monitor and diagnose the unit during operation
• Mechnical operating frequency of 18,000 cycles per hour for quick responses in fast-paced settings
• Light weight of 35g puts minimal strain on your mounting surface
• Simple and tool-free installation when plugged into a compatible socket

Applications

• HVAC equipment
• Robotics and automation systems
• Measurement and instrumentation devices

How durable is this power relay?

This unit delivers up to 50 million mechanical operating cycles, so you can rely on it for long-term performance, even in harsh environments.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	48V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	28mm
Coil Resistance	788 Ω
Coil Power	900mW
Contact Material	Silver
Height	36mm
Minimum Operating Temperature	-55°C
Life	500000 cycles
