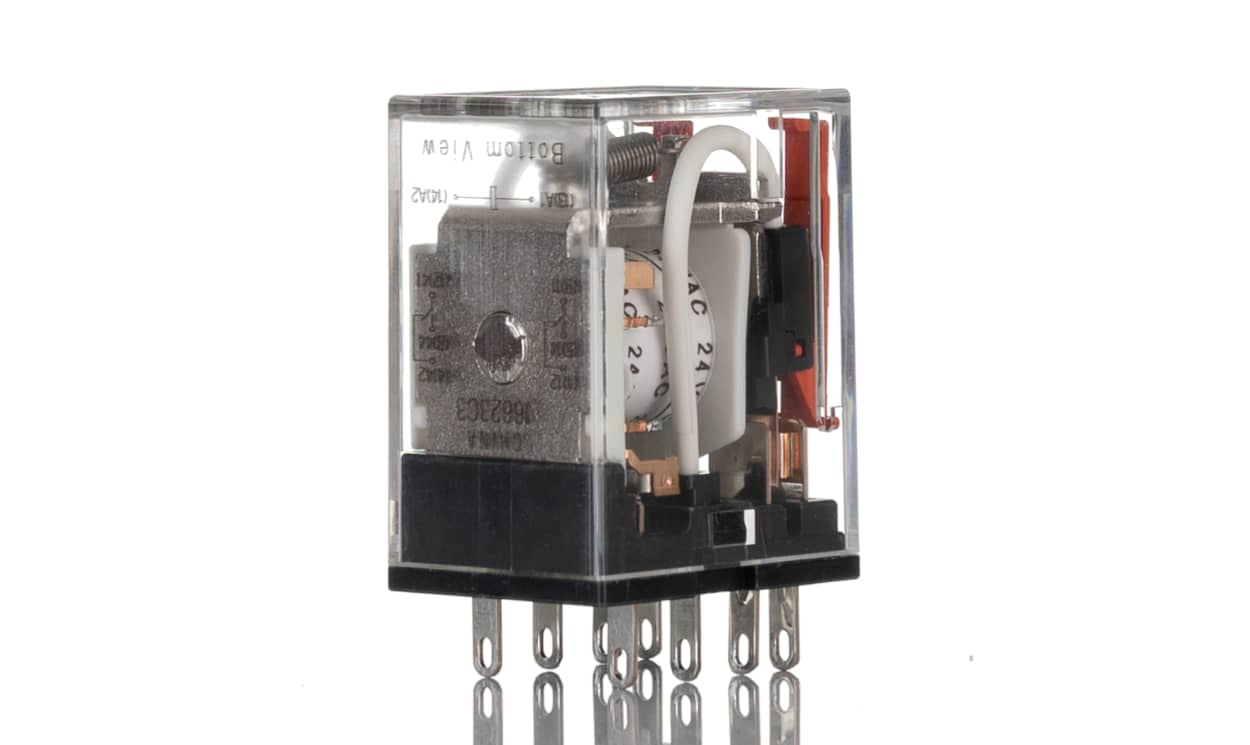

OMRON MY2-GS-R AC24 | Plug-In Power Relay | 24 V AC Coil, DPDT, 10 A

Name: OMRON MY2-GS-R AC24 | Plug-In Power Relay | 24 V AC Coil, DPDT, 10 A
Brand: OMRON
SKU: MY2-GS-R AC24
Availability: OutOfStock

Part Number : MY2-GS-R AC24

OMRON MY2-GS-R AC24 is a DPDT plug-in power relay built around a 24 V AC coil, with a 10 A switching current rating. The 8-pin plug-in base comes with a mechanical indicator, with a coil resistance of 180 Ω (coil power 900 mW).

Maximum switching voltage 250 V AC / 220 V DC
Maximum switching current 10 A AC / 10 A DC
Operating temperature -55 °C to +70 °C
Dimensions 28 x 36 x 36 mm (L x H x D)
Non-latching operation
2 poles (DPDT)

Availability: in stock

Detailed Description
Specifications
Features
Downloads

OMRON Power Relay, 2kV AC Dielectric Strength, 35g Weight - MY Series - MY2-GS-R AC24

To turn circuits on and off with ease thanks, plug in this power relay from OMRON. Its coil generates an electromagnetic field that moves its armature when energised. This movement causes a change in the position of its contacts, allowing you to precisely control the power supply to your circuit. The component's silver contacts are highly conductive with a low resistance of 100mΩ, giving you a reliable connection. Thanks to a 10A switching current, it fits the bill for medium-duty applications. As the unit weighs just 35g, it's easy to handle during assembly.

Features & Benefits

• Delivers up to 50 million mechanical operating cycles, so you can rest assured of long-lasting service
• Dielectric strength of 2kV AC means it handles high voltages without damage
• Withstands between -55°C and +70°C of operating temperature, making it safe to use in challenging settings
• Transparent housing makes it easy to inspect the internal components

Applications

• Food production industry
• Robotics systems
• Research laboratories

How do I mount this power relay?

To mount this unit, pair it with a socket. This lets you plug it in without needing tools.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MY
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	28mm
Coil Resistance	180 Ω
Coil Power	900mW
Height	36mm
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-55°C
Depth	36mm
