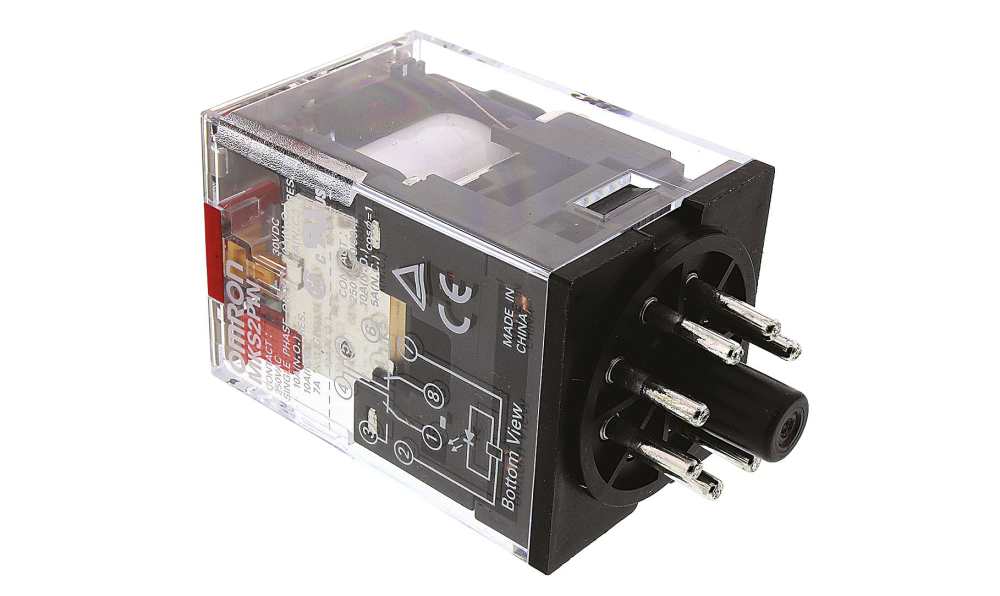

Name: Omron MKS2PIN 110VAC, Plug In Power Relay, 110V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2PIN 110VAC
Availability: OutOfStock

Omron MKS2PIN 110VAC, Plug In Power Relay, 110V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS2PIN 110VAC, Plug In Power Relay, 110V ac Coil, 10A Switching Current, DPDT

Part Number : MKS2PIN 110VAC

Availability: Sold out

Detailed Description
Specifications

Omron MKS Series Power Relay, 110V AC Coil Voltage, 10A Switching Current - MKS2PINAC110

This power relay is a versatile solution ideal for automation and industrial applications. It is a general-purpose relay featuring a contact configuration of DPDT and operates on a coil voltage of 110V AC. Measuring 34.5mm in length and depth with a height of 53.3mm, this relay offers robust switching capabilities of up to a maximum of 10A.

Features & Benefits

• Maximum switching power of 2.5kVA for reliable operation
• Plug-in terminal type ensures simple installation and maintenance
• Contact material of AgSnIn promotes long-lasting performance
• UL certified for safety and reliability in industrial use

Applications

• Used for automating control circuits in industrial machinery
• Ideal for requiring reliable circuit validation
• Utilised in control panels where robust relays are crucial
• Effective for switching operations in various electrical systems

What type of control circuits can benefit from incorporating this relay?

This relay is suitable for automating control circuits in machinery where precise switching is essential. Its specifications allow it to handle significant loads safely and efficiently.

How does the coil resistance impact overall performance in this relay?

The coil resistance of 932Ω allows for lower energy consumption while ensuring quick activation. This efficiency contributes to the relay's suitability for various applications without overheating.

Are there any limitations in operating temperature for this relay to function effectively?

The device operates effectively within a temperature range of -25°C to +60°C, ensuring reliability in harsh environmental conditions commonly encountered in industrial settings.

What benefits does the DPDT configuration offer compared to other types of contact arrangements?

The DPDT configuration enables flexibility in circuit designs, allowing for multiple control options and circuits within one relay. This versatility is essential in sophisticated automation systems.

Brand	Omron
Coil Voltage	110V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Series	MKS
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	932Ω
Minimum Operating Temperature	-25°C
Depth	34.5mm
Contact Material	Silver Alloy
Height	53.3mm
Maximum Operating Temperature	+60°C
Maximum Switching Power DC	300 W
Maximum Switching Power AC	2.5 kVA
