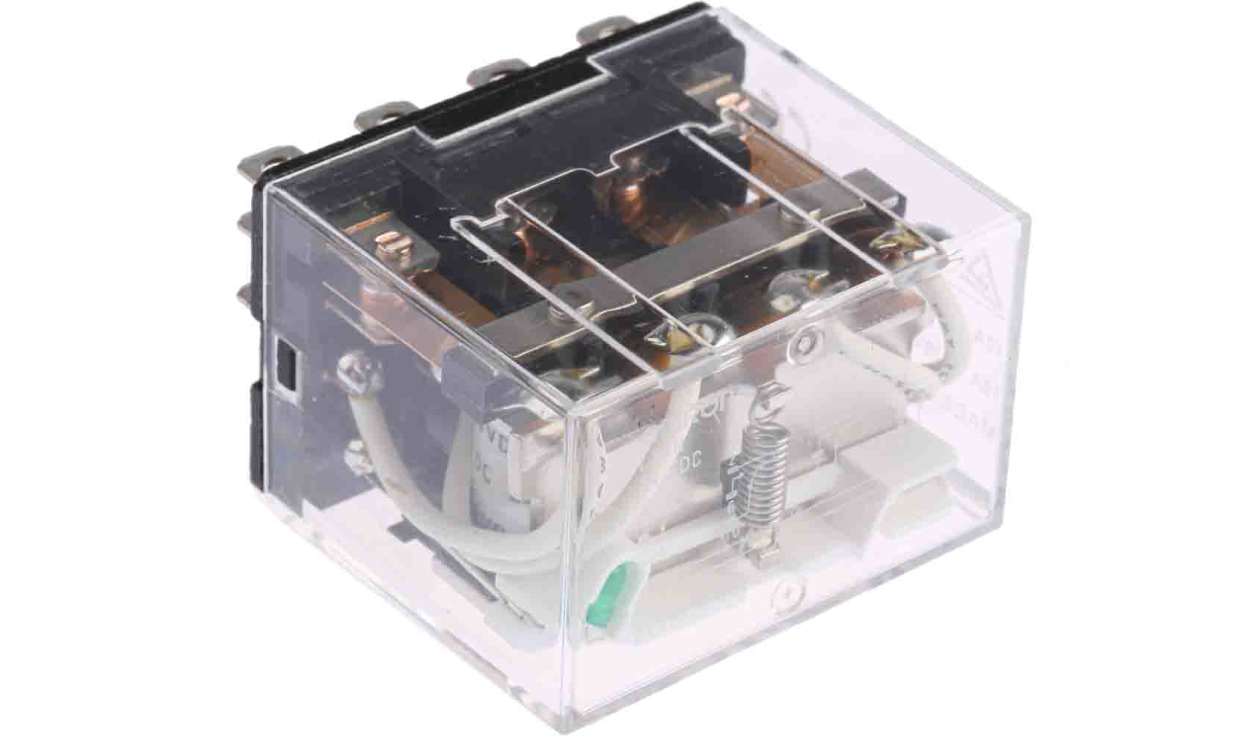

OMRON LY4N 24VDC | Plug-In Power Relay | 24 V DC Coil, 4PDT, 10 A

Name: OMRON LY4N 24VDC | Plug-In Power Relay | 24 V DC Coil, 4PDT, 10 A
Brand: OMRON
SKU: LY4N 24VDC
Availability: OutOfStock

Part Number : LY4N 24VDC

With a 24 V DC coil and 4PDT contacts, the OMRON LY4N 24VDC is a plug-in power relay rated for 10 A switching current. It uses a 14-pin plug-in base and adds an LED indicator, with a coil resistance of 350 Ω (coil power 1.5 W).

Maximum switching voltage 250 V AC / 125 V DC
Electrical life 200,000 operations, mechanical life 100,000,000 operations
Coil-to-contact isolation 2 kV AC
Standards: CE
Dimensions 41.5 x 28 x 36 mm (L x H x D)
Non-latching operation

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron LY4N Series Power Relay, Plug-in Mounting, 4PDT - LY4N DC24

This power relay by Omron is a versatile and reliable solution for a wide range of applications across different industries. With its robust construction and high-quality materials, this power relay offers exceptional performance and longevity. Ideal for general purpose and power applications, this relay is designed for a maximum switching voltage of 250 V AC and 125 V DC, along with a maximum switching power of 1.1 kVA AC and 240 W DC. Its compact size and plug-in mounting type make it easy to install and integrate into various systems.

Features & Benefits

• 4PDT configuration for versatile switching capabilities
• Silver alloy contacts ensure high conductivity and durability
• Plug-in design for easy installation
• High voltage and high current handling capacity

Applications

• Suitable for general purpose power applications in industrial machinery
• Ideal for power distribution systems in automation and control panels
• Used in safety circuits and control systems for high voltage and current switching needs
• Essential for applications requiring reliable and long-lasting power relays with high switching capacities

Can it handle high voltage applications?

This Omron power relay is designed to handle high voltage applications up to 250 V AC and 125 V DC, making it suitable for various industrial systems.

What are the typical applications of this power relay?

This power relay is used in industrial machinery, control panels, HVAC systems, lighting controls, and motor controls. Its 4PDT configuration enables reliable switching of multiple circuits or complex systems with varying voltages or signals.

Is it easy to install and integrate into existing systems?

Yes, the plug-in design of this power relay makes it easy to install and suitable for plug-in terminals or PCB pin applications, ensuring a quick integration process.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	4
Series	LY4N
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	41.5mm
Coil Resistance	350Ω
Coil Power	1.5W
Life	100000000 (Mechanical) Operations, 200000 (Electrical) Operations
Height	28mm
Standards Met	CE
Depth	36mm
Isolation Coil To Contact	2kV ac
Maximum Operating Temperature	+55°C
