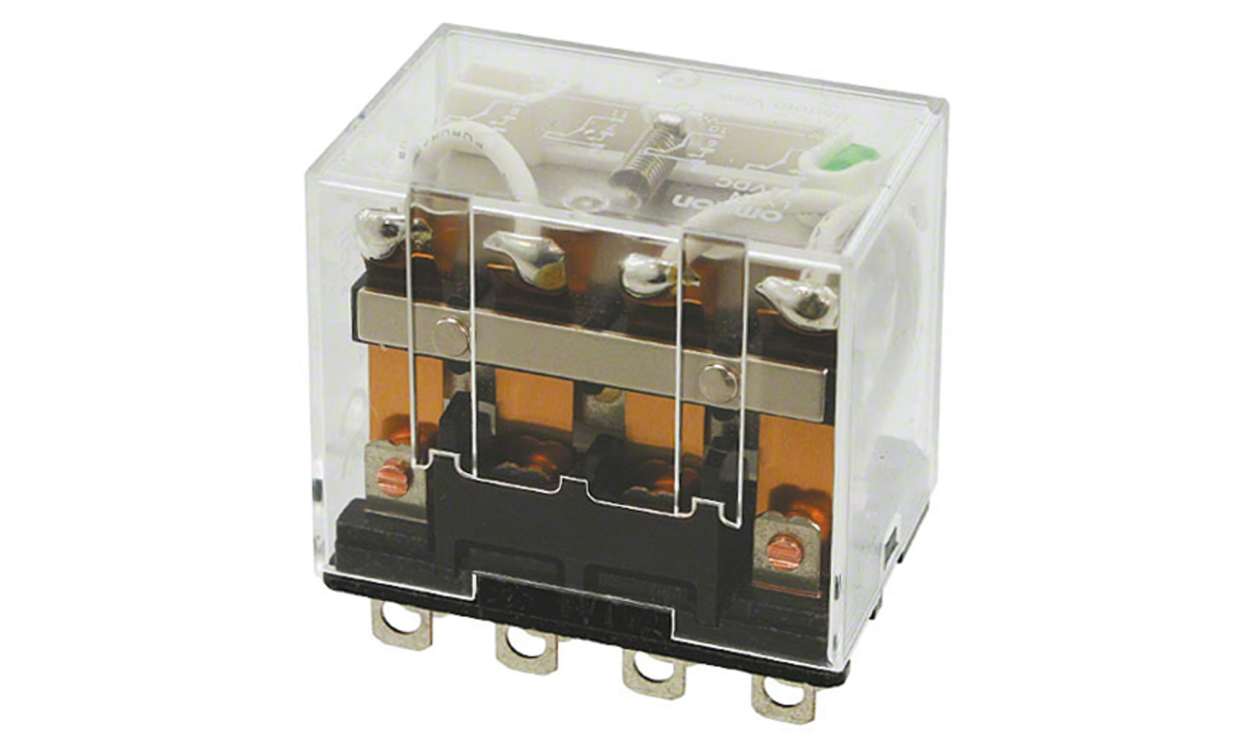

OMRON LY4N 240VAC | Plug-In Power Relay | 240 V AC Coil, 4PDT, 10 A

Name: OMRON LY4N 240VAC | Plug-In Power Relay | 240 V AC Coil, 4PDT, 10 A
Brand: OMRON
SKU: LY4N 240VAC
Availability: OutOfStock

Part Number : LY4N 240VAC

OMRON LY4N 240VAC is a 4PDT plug-in power relay built around a 240 V AC coil, with a 10 A switching current rating. Other details from the specification: PCB pin terminals and a coil resistance of 6,700 Ω (coil power 2.5 W).

Maximum switching voltage 250 V AC / 125 V DC
Silver alloy contacts
Operating temperature -25 °C to +55 °C
Coil-to-contact isolation 2 kV AC
Dimensions 41.5 x 28 x 36 mm (L x H x D)
Non-latching operation

Availability: in stock

Detailed Description
Specifications
Downloads

Omron LY4N Series Power Relay, 4PDT Contact Configuration, 10A Switching Current - LY4N AC240

This power relay is designed for general-purpose use in automation and electrical applications. The Omron LY4N is a compact and high-performance relay with a coil voltage of 240V AC. Its robust design features a PCB pin terminal type, making it an ideal choice for various mounting requirements. The relay's dimensions measure 41.5mm in length, 36mm in depth, and 28mm in height, ensuring suitability for limited space installations.

Features & Benefits

• Supports a maximum switching power of 1.1 kVA for AC operations
• Capable of handling a switching current of 10A for reliability
• Endures a maximum operating temperature of +55°C for tough conditions
• Built with a silver alloy contact material for durability and longevity
• Secured isolation of 2kV AC between coil and contacts prevents electrical failure
• Offers a mechanical life of up to 50 million operations for enhanced reliability

Applications

• Utilised in industrial control circuits for machinery
• Compatible with automated systems requiring reliable switching
• Perfect for use in HVAC systems management
• Provides control in lighting infrastructure within commercial settings

What are the operational limits regarding ambient temperature for effective performance?

The unit functions effectively within a temperature range of -25°C to +55°C, ensuring stable performance in various environmental conditions. This wide range enables installations in both cold and warm climates, accommodating diverse applications.

How does the design maximise electrical safety and durability?

The relay includes an isolation specification of 2kV AC between coil and contacts, enhancing electrical safety. Additionally, the choice of silver alloy contacts ensures reduced wear and enhances the durability of electrical connections, leading to a more sustainable product lifecycle.

What electrical characteristics should I consider when integrating this relay into my system?

It is important to account for the relay's specifications, including a maximum switching voltage of 250V AC and a coil resistance of 6700Ω, as these factors significantly influence the compatibility and performance within specific electrical systems.

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4N
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	41.5mm
Coil Resistance	6700Ω
Coil Power	2.5W
Minimum Operating Temperature	-25°C
Isolation Coil To Contact	2kV ac
Height	28mm
Depth	36mm
Contact Material	Silver Alloy
Maximum Operating Temperature	+55°C
