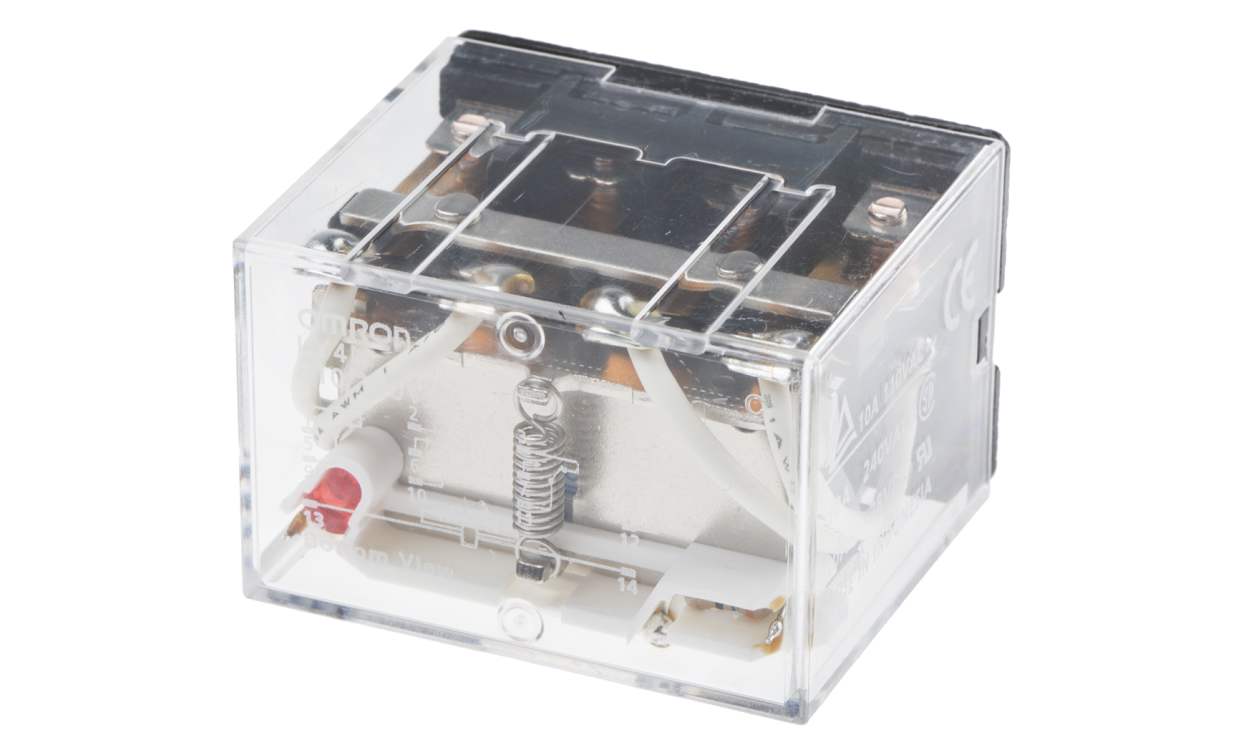

Name: Omron LY4N 110/120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT
Brand: OMRON
SKU: LY4N 110/120VAC
Availability: OutOfStock

Omron LY4N 110/120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY4N 110/120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT

Part Number : LY4N 110/120VAC

Availability: Sold out

Detailed Description
Specifications

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4N
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	41.5mm
Coil Resistance	1800Ω
Coil Power	2.5W
Height	28mm
Contact Material	Silver Alloy
Depth	36mm
Isolation Coil To Contact	2kV ac
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
