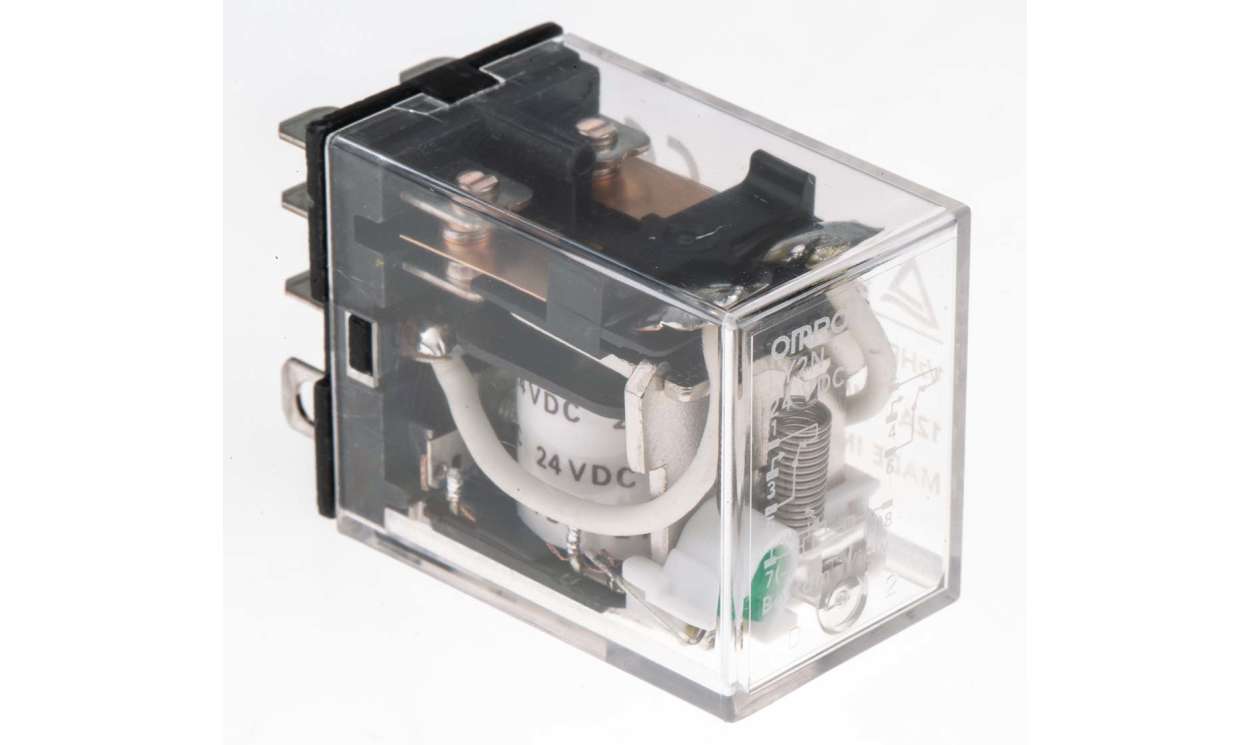

Omron LY2N 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Name: Omron LY2N 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2N 24VDC
Availability: OutOfStock

Part Number : LY2N 24VDC

Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, 24 VDC

Availability: Sold out

Detailed Description
Specifications
Features

Omron LY2N Series Power Relay, 24VDC Coil Voltage, 2 Poles - LY2N DC24

This Omron power relay is a double pole double throw (DPDT) relay designed for general purpose applications. With its high power capacity and 24 V DC coil voltage, this relay offers reliability and efficiency for a wide range of electrical and mechanical industries.

Features & Benefits

• DPDT configuration for versatile switching capabilities
• 24 V DC coil voltage for efficient power operation
• General purpose design for various applications
• Silver Alloy contacts for enhanced conductivity
• 10 A switching power for high performance requirements
• PCB Pin terminals for easy and secure installation

Applications

• Control systems in automation applications
• Power distribution and management in electrical systems
• Circuit protection in mechanical devices
• Motor control and switching in industrial machinery

What is the coil voltage of the LY2N DC24 relay?

The coil voltage of the LY2N DC24 relay is 24 VDC.

What is the contact form of the LY2N DC24 relay?

The LY2N DC24 relay has a DPDT (Double Pole Double Throw) contact form.

Does the LY2N DC24 relay have an operating indicator?

Yes, the LY2N DC24 relay features an LED operating indicator.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	LY2N
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	650Ω
Coil Power	900mW
Minimum Operating Temperature	-25°C
Contact Material	Silver Alloy
Height	28mm
Maximum Operating Temperature	+55°C
Depth	36mm
Isolation Coil To Contact	2kV ac

Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, 24 VDC
