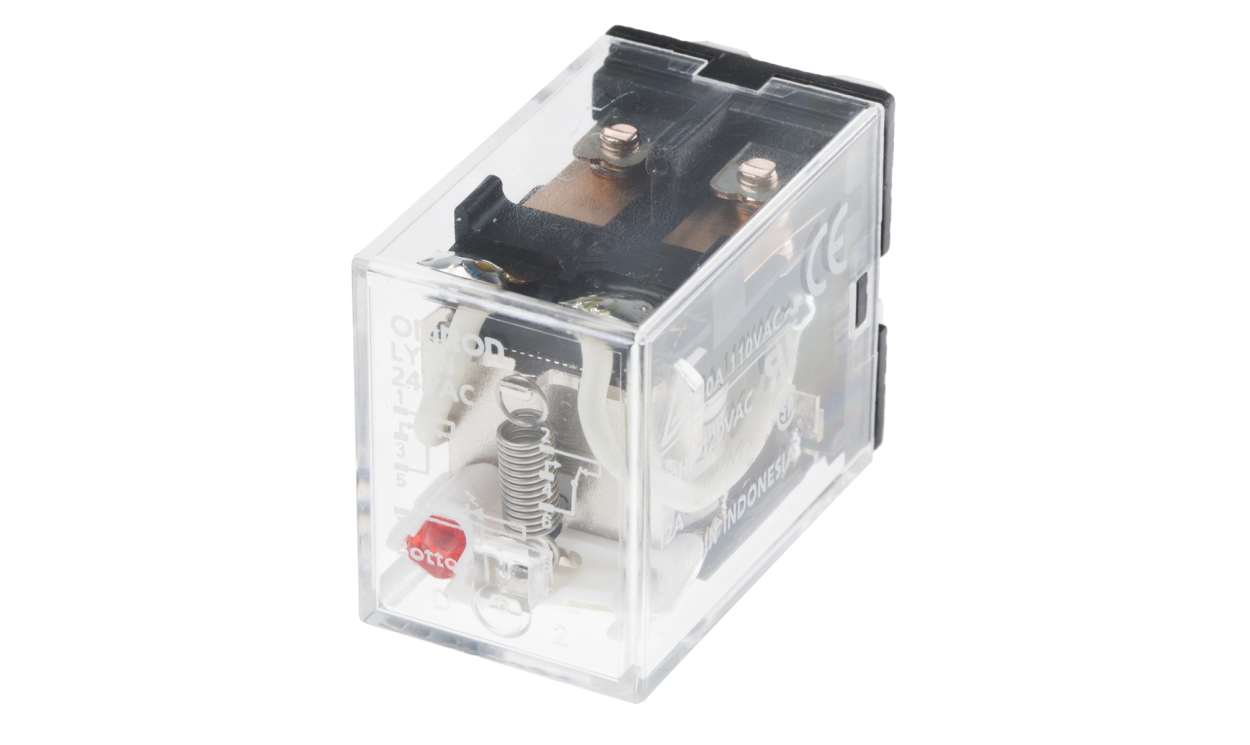

OMRON LY2N 24VAC | Plug-In Power Relay | 24 V AC Coil, DPDT, 10 A

Name: OMRON LY2N 24VAC | Plug-In Power Relay | 24 V AC Coil, DPDT, 10 A
Brand: OMRON
SKU: LY2N 24VAC
Availability: OutOfStock

Part Number : LY2N 24VAC

With a 24 V AC coil and DPDT contacts, the OMRON LY2N 24VAC is a plug-in power relay rated for 10 A switching current. Features include an LED indicator, on an 8-pin plug-in base; it has a coil resistance of 180 Ω (coil power 1.2 W).

Maximum switching voltage 250 V AC / 125 V DC
Silver alloy contacts
Operating temperature -25 °C to +40 °C
Electrical life 500,000 operations, mechanical life 50,000,000 operations
Coil-to-contact isolation 2 kV AC
Non-latching operation

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron LY2N Series Power Relay, DPDT Contact Configuration, 24V AC Coil Voltage - LY2N AC24

This power relay serves as a versatile component suitable for general-purpose applications, efficiently managing a range of electrical tasks. It operates at a coil voltage of 24V AC and utilises a double pole double throw (DPDT) configuration, making it ideal for high voltage switching needs. With compact dimensions of 21.5mm in length, 36mm in depth, and 28mm in height, it can be easily integrated into various systems. The relay is designed to handle substantial power loads while ensuring dependable operation under diverse conditions.

Features & Benefits

• High voltage switching capacity of 250V AC
• Durable silver alloy contacts for enhanced performance
• Low relay coil resistance of 180Ω for energy efficiency
• Fast response with a maximum operating frequency of 1,800 operations/hour
• Supports a wide temperature range (-25 to +40°C)
• 500,000 electrical operation lifespan promotes extended usage

Applications

• Utilised with automation devices to manage machinery
• Implemented in electrical panels for efficient power control
• Suitable for mechanical systems requiring dependable switching
• Applied in various general-purpose across industries

Can it operate at high temperatures?

Yes, it functions effectively up to +40°C.

Will it handle both AC and DC voltages?

It is specifically tailored for AC voltage handling.

Is it suitable for automation?

Yes, it can efficiently control automation systems.

Can the contacts handle inductive loads?

Yes, it can manage inductive loads as per specifications.

Is this relay easy to install?

Its plug-in design simplifies installation in compatible sockets.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	LY2N
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	180Ω
Coil Power	1.2W
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+40°C
Isolation Coil To Contact	2kV ac
Depth	36mm
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
