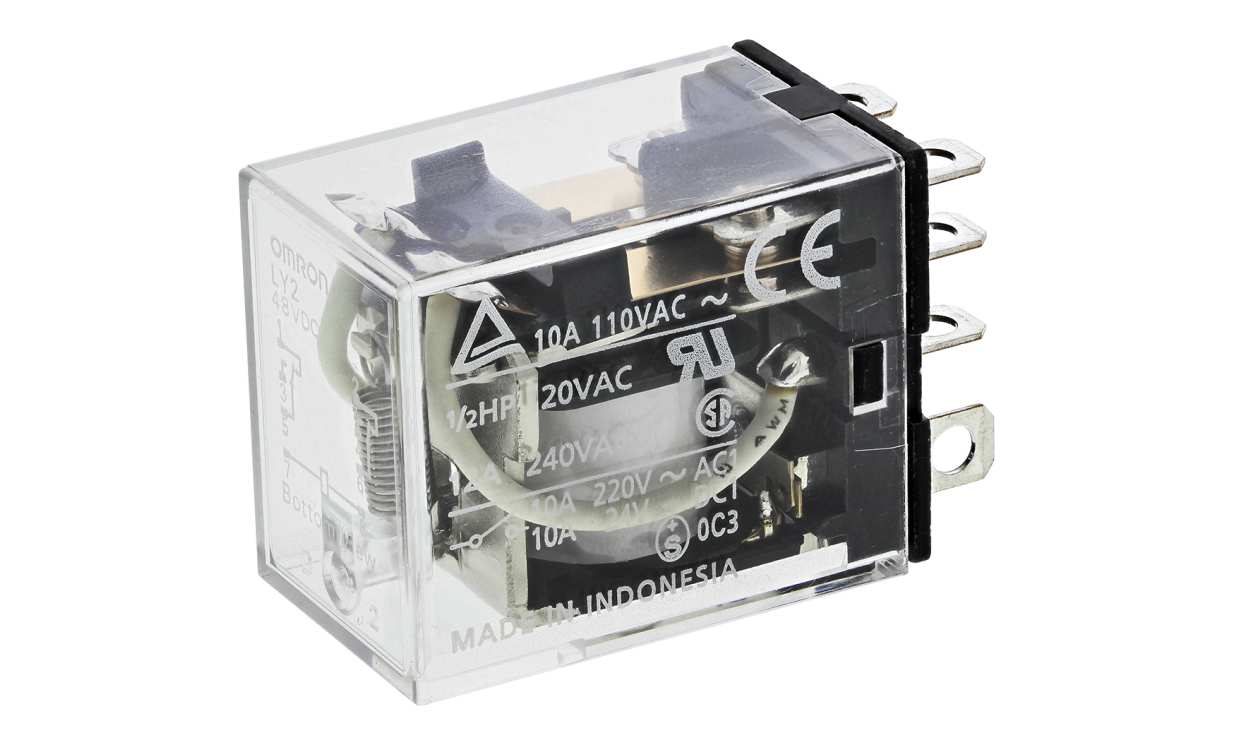

OMRON LY2 48VDC | PCB Mount Power Relay | 48 V DC Coil, DPDT, 10 A
Part Number : LY2 48VDC
With a 48 V DC coil, the OMRON LY2 48VDC power relay switches 10 A through DPDT contacts. As a non-latching LY2-series relay, the LY2 48VDC uses PCB mounting and quick-connect terminals.
- Switching power up to 1.1 kVA (AC) / 240 W (DC)
- Works in ambient temperatures −25 °C to +55 °C
- Silver alloy (Ag alloy) contacts
- Size: length 28 mm, depth 21.5 mm, height 42.4 mm
- Listed application: general purpose
- Coil: 900 mW power, 2,600 Ω resistance
For pricing, please contact our experts.
Omron LY2 Series Power Relay, 48V DC Coil Voltage, DPDT Contact Configuration - LY2 DC48
This power relay is a robust component, specifically designed to ensure reliable electrical switching. It utilises a DPDT configuration allowing for flexible applications, particularly in automation and control tasks. With dimensions of 28mm in length, 21.5mm in depth, and a height of 42.4mm, this PCB mount relay is designed for straightforward installation in various circuits.
Features & Benefits
• Operates at a coil voltage of 48V DC to suit diverse applications
• Quick connect terminal design enables faster installation
• Handles a maximum switching current of 10A for general-purpose use
• Rated for a maximum switching power of 1.1 kVA (AC) and 240W (DC)
• Features Ag alloy contacts for enhanced durability and performance
• Capable of withstanding temperatures ranging from -25°C to +55°C
• Quick connect terminal design enables faster installation
• Handles a maximum switching current of 10A for general-purpose use
• Rated for a maximum switching power of 1.1 kVA (AC) and 240W (DC)
• Features Ag alloy contacts for enhanced durability and performance
• Capable of withstanding temperatures ranging from -25°C to +55°C
Applications
• Ideal for controlling motors and lamps in industrial settings
• Utilised for switching in automation control systems
• Suitable for use in electrical panels and circuits
• Commonly used in building management systems and safety equipment
• Utilised for switching in automation control systems
• Suitable for use in electrical panels and circuits
• Commonly used in building management systems and safety equipment
What is the expected lifespan of this relay under standard operating conditions?
The relay can endure up to 500,000 operations under rated load conditions, ensuring long-term reliability in various applications.
How does the relay manage in high-voltage environments?
It is designed to withstand voltages up to 2,000V, allowing it to function safely in industrial environments with high electrical demands.
Is the relay capable of handling inductive loads?
Yes, it can manage inductive loads with a capacity of 10A, making it suitable for diverse electrical switching tasks.
What type of connections does this relay support for mounting?
It supports PCB mounting, allowing for easy integration within electronic systems and circuit boards.
Can the relay be used in varying temperature conditions?
It operates effectively in temperatures from -25°C to +55°C, making it suitable for a wide range of environments.
