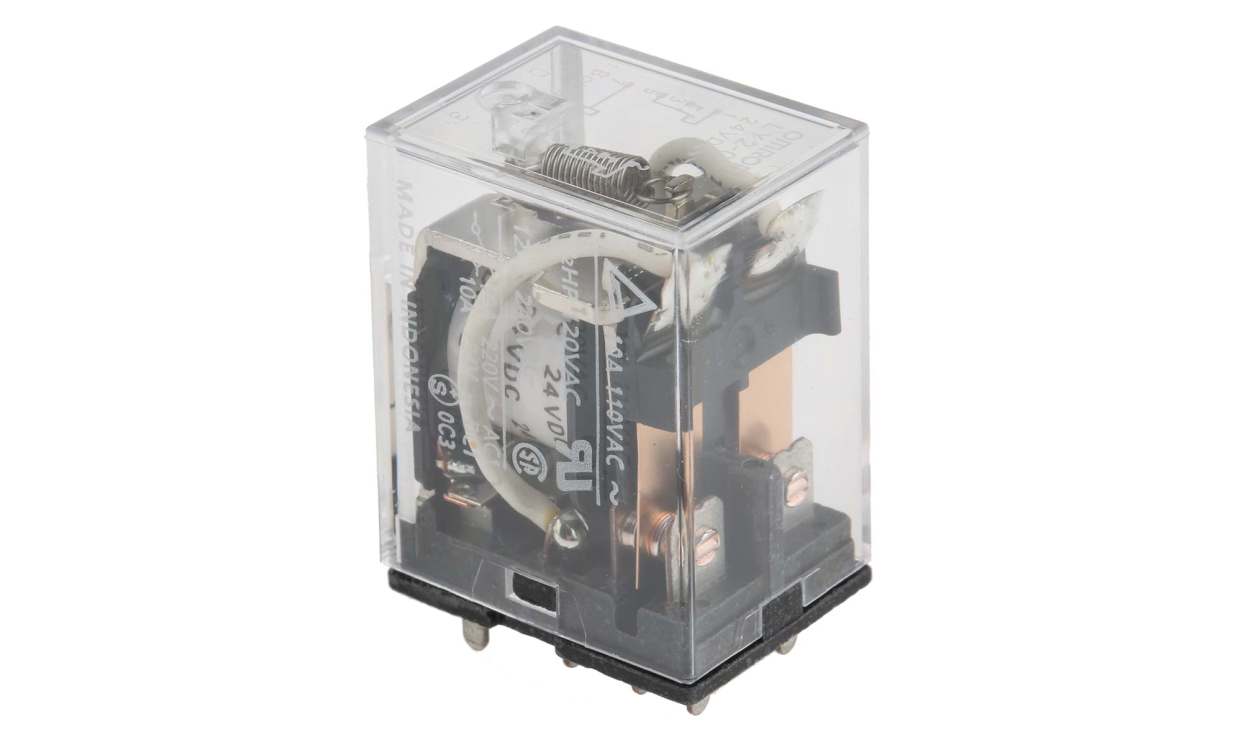

Name: Omron LY2-0 24VDC, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2-0 24VDC
Availability: OutOfStock

Omron LY2-0 24VDC, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY2-0 24VDC, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Part Number : LY2-0 24VDC

Availability: Sold out

Detailed Description
Specifications

Omron LY2 Series Power Relay, DPDT Contact Configuration, 10A Switching Current - LY2-0 DC24

This power relay efficiently manages electrical circuits and is suitable for various automation and control applications, particularly in industrial environments where precise control and dependable performance are critical for safety and operational efficiency.

Features & Benefits

• Coil voltage of 24V DC optimises power management
• DPDT configuration offers flexible switching options
• PCB mount simplifies installation in compact spaces
• Rated switching current of up to 10A provides robust performance
• Silver alloy contact material improves conductivity and durability
• Enhanced electrical isolation between coil and contacts reduces the risk of failure

Applications

• Automation control in manufacturing systems
• Power distribution for lighting
• Control panels for machinery management
• Relay switching operations in electronic devices
• HVAC systems to control heavy loads

How does coil resistance affect performance?

Lower coil resistance improves the relay's responsiveness and reduces power consumption, enhancing efficiency in control applications.

Can this product be used in high-temperature environments?

It operates effectively within a temperature range of -25 to +55°C, making it suitable for most industrial settings.

What should be considered when installing this relay?

Proper mounting on the PCB and adherence to specified wiring diagrams are essential for optimal performance and safety.

Is there a limit on the number of operations it can perform?

The mechanical life is rated for 100 million operations, while it can handle 500,000 electrical cycles, ensuring long-term reliability.

Can this relay switch both AC and DC loads?

Yes, it is designed to switch both AC and DC loads up to its specified maximum voltage and current ratings.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	2
Latching	No
Series	LY2
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	21.5mm
Coil Resistance	650Ω
Coil Power	900mW
Height	28mm
Contact Material	Silver Alloy
Maximum Operating Temperature	+55°C
Isolation Coil To Contact	2kV ac
