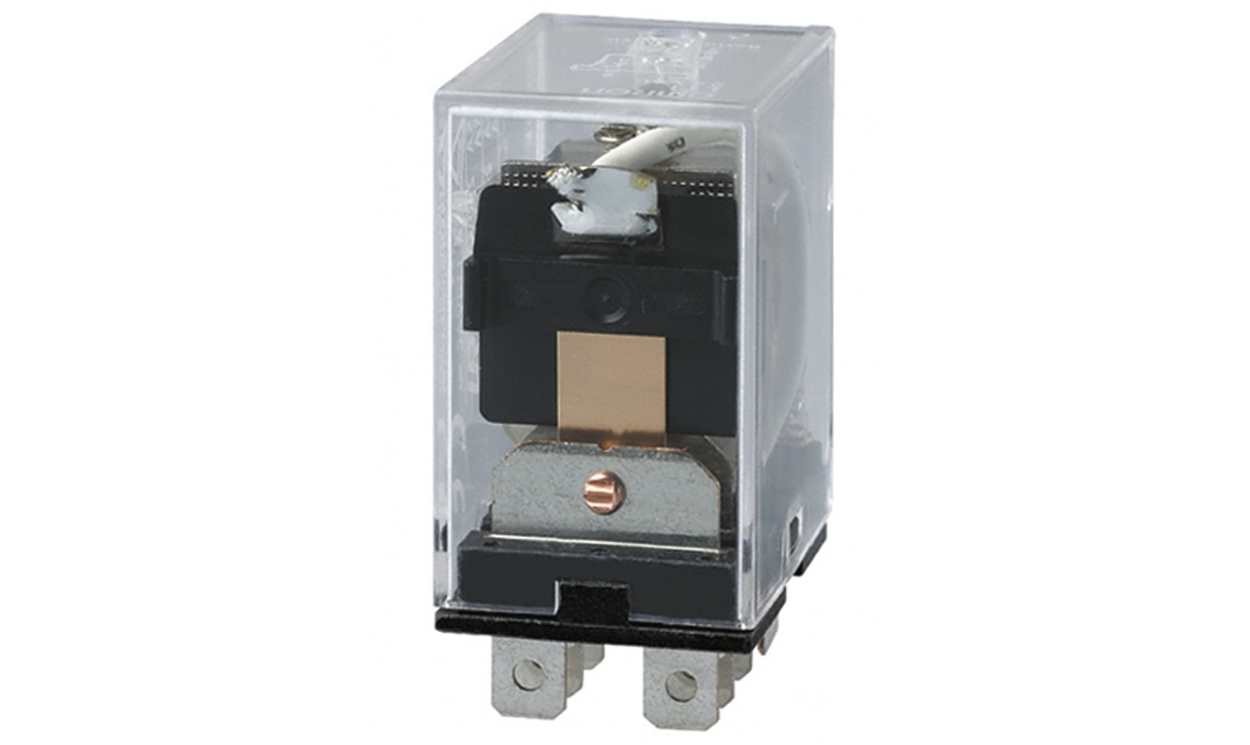

Name: Omron LY1F 24VAC, Plug In Power Relay, 24V ac Coil, 15A Switching Current, SPDT
Brand: OMRON
SKU: LY1F 24VAC
Availability: OutOfStock

Omron LY1F 24VAC, Plug In Power Relay, 24V ac Coil, 15A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY1F 24VAC, Plug In Power Relay, 24V ac Coil, 15A Switching Current, SPDT

Part Number : LY1F 24VAC

Availability: Sold out

Detailed Description
Specifications

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	15A
Number of Poles	1
Series	LY1
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	22.5mm
Coil Resistance	180Ω
Coil Power	1.2W
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Isolation Coil To Contact	2kV ac
Depth	35.5mm
Life	200000 (Electrical) Operations, 50000000 (Mechanical) Operations
