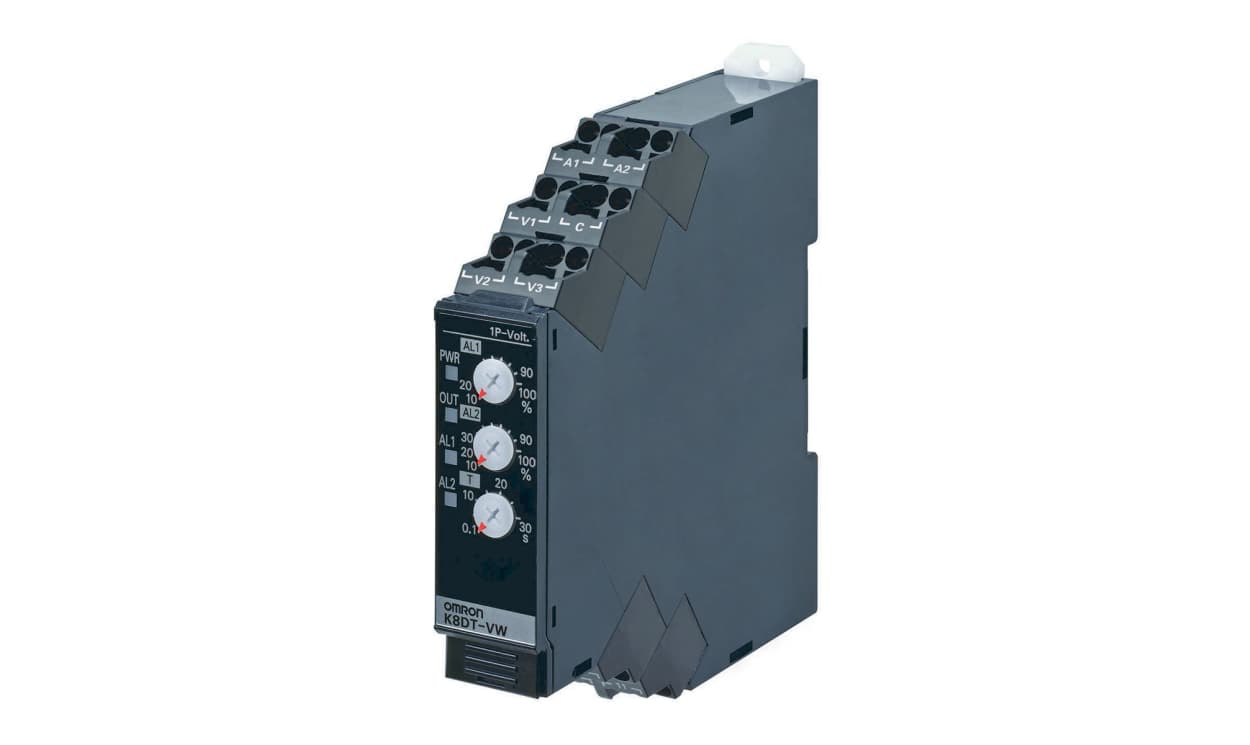

Omron K8DT-VW3CD, Voltage Monitoring Relay, 1 Phase, SPDT, 200 V, 300 V, 600 V, DIN Rail

Name: Omron K8DT-VW3CD, Voltage Monitoring Relay, 1 Phase, SPDT, 200 V, 300 V, 600 V, DIN Rail
Brand: OMRON
SKU: K8DT-VW3CD
Availability: OutOfStock

Part Number : K8DT-VW3CD

Availability: in stock

Detailed Description
Specifications
Downloads

K8DT-VW Single Phase Under/Over Voltage Relay

Omron K8DT-VW single phase voltage monitor relay detects abnormal voltages applies to equipment to protect against equipment failure. Can be used in either overvoltage or undervoltage mode simultaneously.

Monitor AC or DC currents with one Relay.
Settings for the operating value, hysteresis, and operating time
Width of 17.5 mm to reduce space required in panels
Push-In Plus Terminal that reduce wiring work
Double-insertion holes for crossover wiring (all terminals)

K8DT-VW Single-Phase Voltage Monitoring Relay.

• Downsize control panels.
• Reduced wiring.
• Detects errors in Motors and other equipment.
• Use in either over current or under current mode.
• Function as an alarm.
• Set threshold values.
• Alarm output can be set as a relay or transistor output.
• Input signal – Voltage, current, water level electrode and temperature (thermocouple or platinum resistance thermometer) can be input.
• Lower power consumption.
• Side by side mounting is possible.
• Long term contact reliability.
• Reliable in poor noise environments.
• Slim profile 17.5 mm

K8DT-VW3CD Single Phase Over and under Voltage Relay.

• Power supply 24 V ac/dc.
• Detects abnormal voltages
• Use in over voltage or under voltage mode.
• Protects from over and under voltages with one relay.
• Protects you from equipment failures.
• SPDT Contact output.
• Single phase.
• Power ON lock time 1 s or 5 s (switched using DIP switch)
• Current capacity 10 A (per pole)
• Insertions 50 times.
• Setting range – 20 to 200 V ac/dc, 30 to 300 V ac/dc, 60 to 600 V ac/dc

Features and Benefits.

• Automatic / Manual reset (switchable) (Manual reset turn OFF the power supply)
• Green LED Power (PWR) power
• Yellow LED Relay output (RY)
• Red LED output (ALM) alarm output1
• Red LED output (ALM) alarm output2
• One SPDT contact relay. Switchable between NO (normally open) and NC (normally closed) using DIP switch.
• DIN Rail Mounted or Screw Mounted.
• Weight 100 g
• Case material PC, UL 94 V-0.
• Colour N1.5
• Protection IP20 (terminals)

What is a Monitoring / Measuring Relay?

A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.

Types of Monitoring Relays Available?

• Motor protection relays
• Temperature monitoring relays
• Water level control relays
• Voltage
• Current

Standards

EN60947-5-1, UL 60947-5-1, IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Voltage Sensing Range	200 V, 300 V, 600 V
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Time Delay	250ms
Series	K8DT-VW
Terminal Type	Screw
Number of Poles	1
Minimum Operating Temperature	-20°C
Operating Temperature Range	+60°C
Length	90mm
Width	17.5mm
Height	90mm
Maximum Voltage Sensed	200 V, 300 V, 600V
Dimensions	90 x 17.5 x 90mm
Maximum Operating Temperature	+60°C
