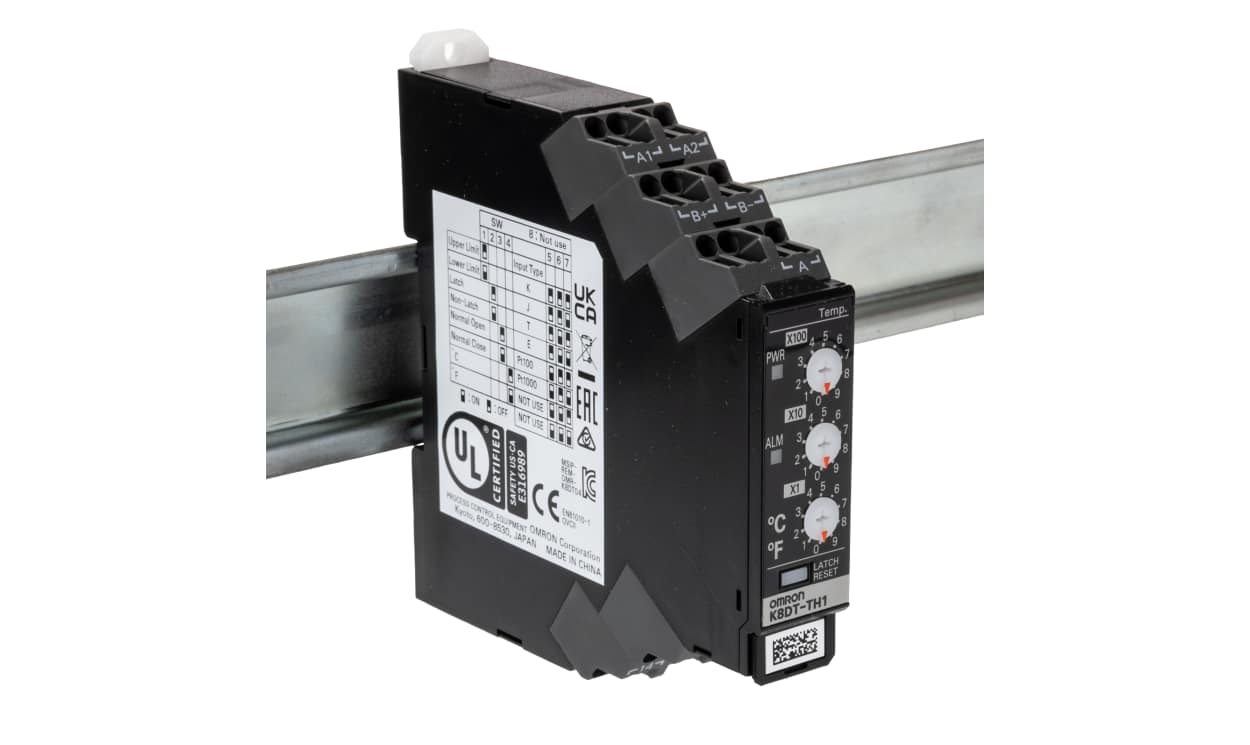

Omron K8DT-TH1CD, Temperature Monitoring Relay, SPDT, DIN Rail

Name: Omron K8DT-TH1CD, Temperature Monitoring Relay, SPDT, DIN Rail
Brand: OMRON
SKU: K8DT-TH1CD
Availability: OutOfStock

Part Number : K8DT-TH1CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron K8DT-TH Series Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - K8DT-TH1CD

This monitoring relay is specifically designed for temperature applications, ensuring precise temperature control in various industrial environments. Its advanced overtemperature sensitivity is crucial for maintaining safety and efficiency in processes that depend on effective temperature monitoring. With a sensing range of 0 to +999°C, this device is suitable for diverse settings, guaranteeing consistent management of critical parameters.

Features & Benefits

• Overtemperature sensitivity provides a swift response to critical conditions
• SPDT relay configuration offers flexibility in control Applications
• Robust DIN rail mounting streamlines installation in control panels
• IP20 rated terminal provides adequate protection from environmental factors
• Push-in terminal design allows for quick and secure wiring connections

Applications

• Used for precise monitoring in heating systems
• Employed in industrial ovens for temperature regulation
• Utilised in HVAC systems for air temperature control
• Beneficial for maintaining proper temperatures in refrigerated units
• Ideal for temperature monitoring in manufacturing processes

How can I ensure proper installation of the device?

For optimal installation, ensure the relay is securely mounted on the DIN rail and that all connections are tight.

What types of sensors are compatible with it?

It is compatible with various temperature sensors, ensuring versatile application across different setups.

Can it be adjusted for different temperature thresholds?

Yes, the sensitivity settings can be adjusted to accommodate specific temperature thresholds based on your needs.

What safety standards does this device adhere to?

It meets CE and UL safety standards, ensuring reliable operation in various environments.

Standards

EN61010-1, EN 61326-1, UL 61010-1 IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Temperature
Contact Configuration	SPDT
Mounting Type	DIN Rail
Temperature Sensitivity	Overtemperature
Temperature Sensing Range	0 → +999°C
Series	K8DT-TH
Minimum Temperature Sensed	0°C
Height	90mm
Length	90mm
Terminal Type	Push In
Number of Poles	1
Standards Met	CE, UL
Operating Temperature Range	-20 → +60°C
Maximum Temperature Sensed	+999°C
Width	17.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-20°C
Special Features	IP20 Terminal
Dimensions	90 x 17.5 x 90mm
