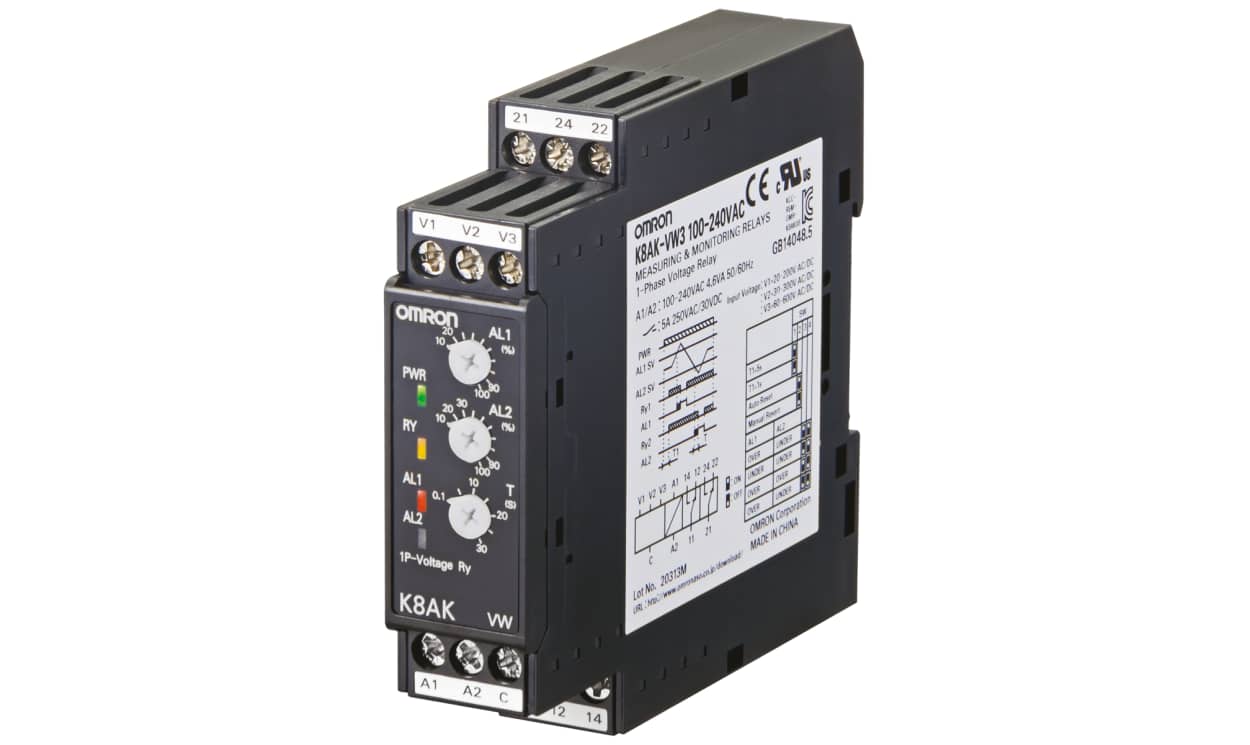

OMRON K8AK-VW3 100-240VAC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT

Name: OMRON K8AK-VW3 100-240VAC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT
Brand: OMRON
SKU: K8AK-VW3 100-240VAC
Availability: OutOfStock

Part Number : K8AK-VW3 100-240VAC

OMRON K8AK-VW3 100-240VAC single-phase voltage monitoring relay: voltage ranges of 20 to 200 V AC/DC, 30 to 300 V AC/DC and 60 to 600 V AC/DC, plus overvoltage and undervoltage detection. This unit switches two SPDT outputs and mounts on DIN rail in a 22.5 mm wide housing. Per the product description, the K8AK-VW3 100-240VAC handles AC or DC input. The description lists 100-240 VAC for the K8AK-VW3 100-240VAC.

Voltage ranges: 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC
Detection: Overvoltage, undervoltage
Contacts: 2 x SPDT
Time delay: 0.1 to 30 s
Operating temperature: -20 to +60 °C

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron K8AK-VW Series Monitoring Relay, 1 Electrical Phase, 2 x SPDT Contact Configuration - K8AK-VW3 100-240VAC

This monitoring relay is designed for effective voltage monitoring in industrial environments. The compact relay measures 22.5 x 100 x 95 mm and can detect both overvoltage and undervoltage conditions, ensuring optimal performance of connected equipment. It supports a voltage sensing range of 20 to 600 V AC/DC, making it versatile for various applications.

Features & Benefits

• Monitors overvoltage and undervoltage simultaneously for comprehensive protection
• Manual and automatic reset options for flexible operation
• Two SPDT output relays rated at 5A for reliable signalling
• LED indicators for quick status monitoring of input signals and alarms
• Supports input frequencies from 40 to 500 Hz, ensuring adaptability

Applications

• Ideal for protecting electrical systems in manufacturing facilities
• Used for monitoring voltage levels in automation systems
• Utilised with industrial equipment to prevent damage from voltage fluctuations
• Applicable in sectors requiring consistent voltage oversight, such as mechanical and electrical industries

What is the time delay range for this product?

The time delay settings can be adjusted between 0.1 to 30 seconds, allowing for tailored responses to voltage changes.

How does this relay facilitate user control for settings?

It features knobs for easily setting the operating values for overvoltage and undervoltage, enhancing usability without complex programming.

What voltage sensing ranges does it cover?

It accommodates a voltage sensing range from 20V to 600V AC/DC, providing ample coverage for various industrial applications.

Is there a specific mounting requirement for installation?

Yes, it is designed for DIN rail mounting, which facilitates straightforward installation in electrical cabinets.

Standards

UL 60947-5-1, UL 508, IP 20

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Contact Configuration	2 x SPDT
Voltage Sensing Range	20 → 200 V ac/dc, 30 → 300 V ac/dc, 60 → 600V ac/dc
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Time Delay	0.1 → 30s
Series	K8AK-VW
Minimum Voltage Sensed	20 V ac/dc, 30 V ac/dc, 60V ac/dc
Length	22.5mm
Operating Temperature Range	+60°C
Maximum Voltage Sensed	200 V ac/dc, 300 V ac/dc, 600V ac/dc
Height	90mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C
Width	22.5mm
Dimensions	22.5 x 100 x 95mm

Monitoring relay 22.5mm wide, Single phase over or under voltage 20 to 600V AC or DC, Two SPDT, 100-240 VAC
