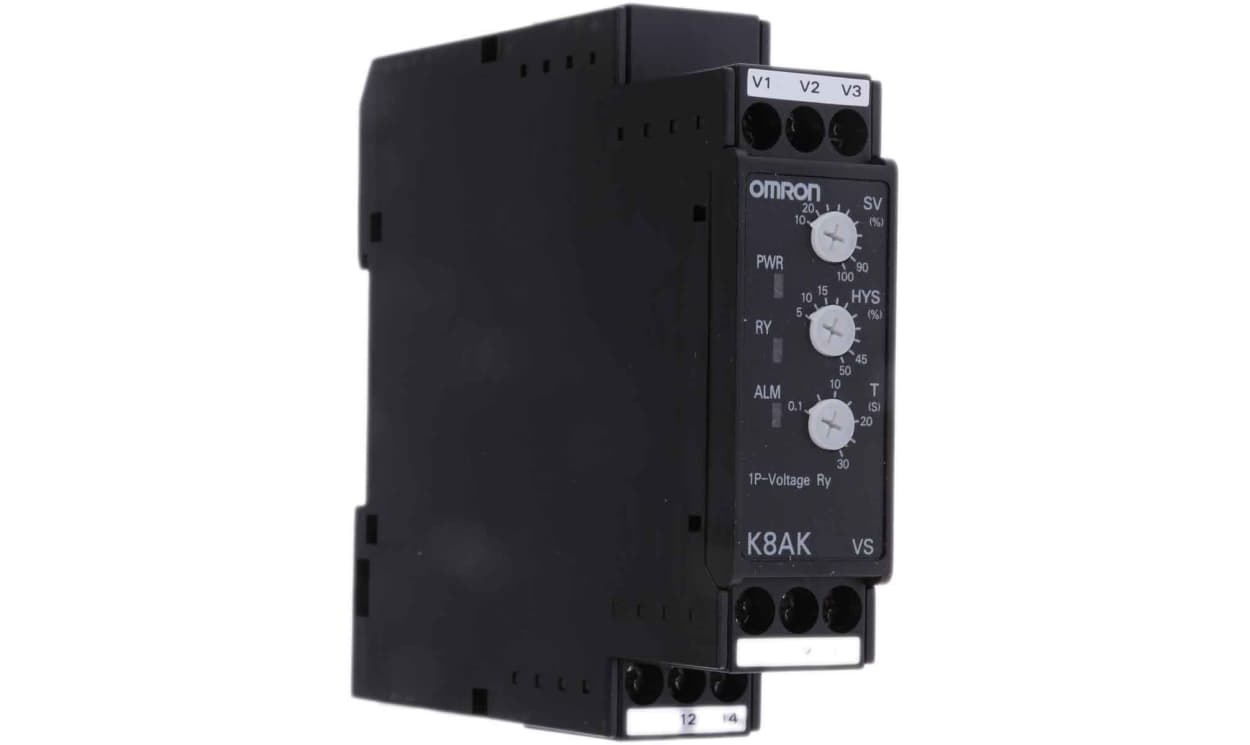

OMRON K8AK-VS2 24VAC/DC | Voltage Monitoring Relay | 1 to 150 V AC/DC, 1 Phase, SPDT

Name: OMRON K8AK-VS2 24VAC/DC | Voltage Monitoring Relay | 1 to 150 V AC/DC, 1 Phase, SPDT
Brand: OMRON
SKU: K8AK-VS2 24VAC/DC
Availability: OutOfStock

Part Number : K8AK-VS2 24VAC/DC

Offering voltage ranges of 1 to 10 V AC/DC, 3 to 30 V AC/DC and 15 to 150 V AC/DC, plus overvoltage and undervoltage detection, the OMRON K8AK-VS2 24VAC/DC is a single-phase voltage monitoring relay. The K8AK-VS2 24VAC/DC switches an SPDT output and is 22.5 mm wide.

Voltage ranges: 1 to 10 V AC/DC, 3 to 30 V AC/DC, 15 to 150 V AC/DC
Detection: Overvoltage, undervoltage
Contacts: SPDT
Time delay: 0.1 to 30 s
Terminals: Screw
Operating temperature: -20 to +60 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron K8AK Series Monitoring Relay, SPDT Contact Configuration, Voltage Monitoring - K8AK-VS2 24VAC/DC

This monitoring relay is designed for effective voltage monitoring in industrial settings. With dimensions of 22.5x90x100mm, it is suitable for detecting both overvoltage and undervoltage, ensuring efficient electrical performance. It operates within a temperature range of -20 to +60°C, making it appropriate for various environments.

Features & Benefits

• Monitors AC/DC voltage for accurate voltage management
• SPDT relay output allows for flexible control options
• Manual and automatic reset options enhance usability
• LED indicator provides clear visibility of output status
• Supports isolated input frequencies of 40 to 500Hz
• Screw terminals ensure secure wiring connections

Applications

• Suitable for monitoring voltage levels in industrial machinery
• Provides protection against electrical phase failure
• Applicable in control systems within automation environments
• Ideal for equipment requiring continuous voltage assessment

Can it monitor both AC and DC voltage?

Yes, it effectively supports AC/DC voltage sensing.

Will it provide alerts for voltage fluctuations?

Yes, it features an LED indicator for clear alerts.

Can it be used in automation systems?

Yes, it is effective in various automation applications.

Can this relay differentiate between normally open and normally closed outputs?

Yes, the output relay can easily toggle between the two.

Standards

UL 60947-5-1, UL 508, IP 20

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Contact Configuration	SPDT
Voltage Sensing Range	1 → 10 V ac/dc, 15 → 150 V ac/dc, 3 → 30V ac/dc
Voltage Sensitivity	Overvoltage, Undervoltage
Time Delay	0.1 → 30s
Series	K8AK
Dimensions	22.5 x 90 x 100mm
Maximum Voltage Sensed	10 V ac/dc, 30 V ac/dc, 150V ac/dc
Length	22.5mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C
Width	22.5mm
Height	90mm
Operating Temperature Range	-20 → +60°C
Terminal Type	Screw
Minimum Voltage Sensed	1 V ac/dc, 3 V ac/dc, 15V ac/dc

OMRON K8AK-VS2 24VAC/DC | Voltage Monitoring Relay | 1 to 150 V AC/DC, 1 Phase, SPDT

DOWNLOAD CATALOG

K8AK-VS2 24VAC DC Brochure - K8 Series A700000012598829
