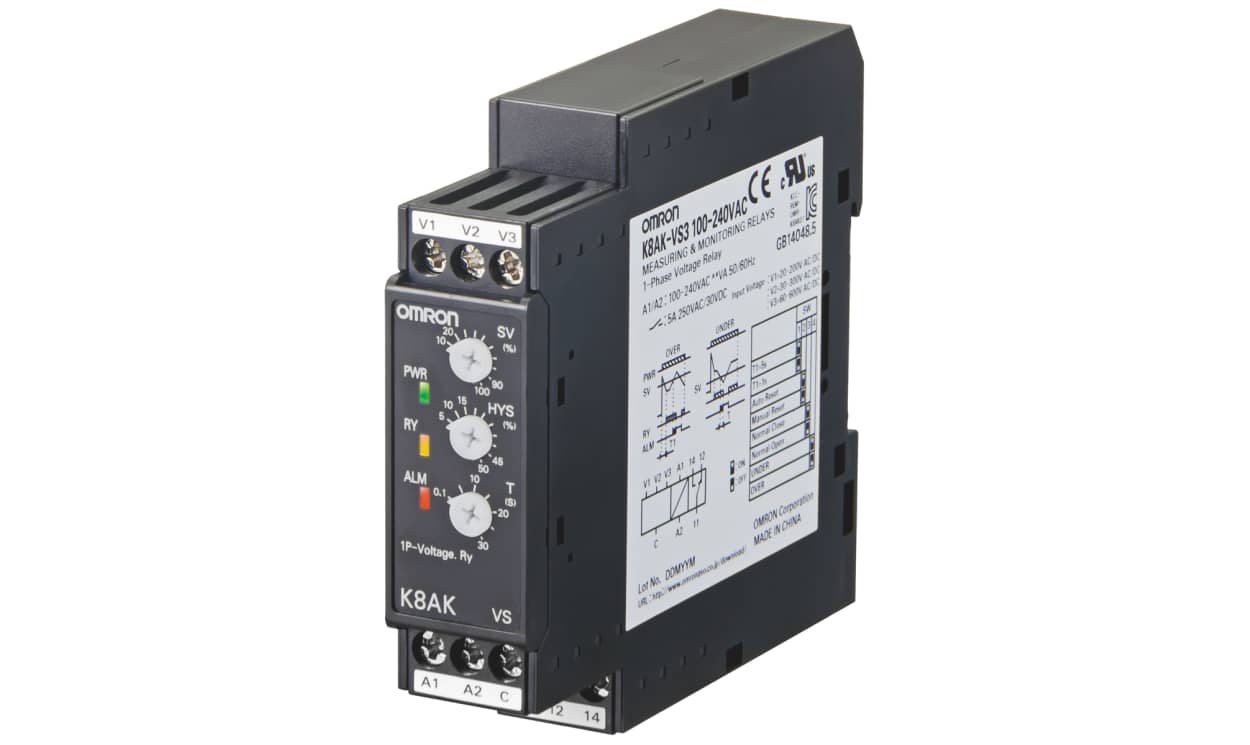

Omron K8AK-VS2 100-240VAC, Voltage Monitoring Relay, 1 Phase, SPDT, 1 → 10V ac/dc, DIN Rail

Name: Omron K8AK-VS2 100-240VAC, Voltage Monitoring Relay, 1 Phase, SPDT, 1 → 10V ac/dc, DIN Rail
Brand: OMRON
SKU: K8AK-VS2 100-240VAC
Availability: OutOfStock

Part Number : K8AK-VS2 100-240VAC

Monitoring relay 22.5mm wide, Single phase over or under voltage 1 to 150V AC or DC, One SPDT, 100-240 VAC

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron K8AK-VS Series Monitoring Relay, 1 Electrical Phase, SPDT Contact Configuration - K8AK-VS2

This monitoring relay is designed for precise voltage monitoring in industrial settings. Compact in size, measuring 22.5mm in width, 95mm in height, and 100mm in depth, it enhances safety by detecting overvoltage and undervoltage conditions. Equipped with IP20 touch-safe terminals, it can be easily mounted on DIN rail systems.

Features & Benefits

• Supports both manual and automatic resetting with a single relay
• Includes a clear LED indicator for output status monitoring
• Capable of sensing frequencies from 40Hz to 500Hz
• Compact design fits standard DIN rail mounts for easy integration

Applications

• Used for comprehensive voltage monitoring in industrial facilities
• Ideal for integrating into automation and control systems
• Suitable for equipment requiring overload and under-voltage protection
• Utilised in process control with current splitter input

What voltage ranges can this relay manage effectively?

It can handle voltage sensing ranges of 1 to 10 V AC/DC, 3 to 30 V AC/DC, and 15 to 150 V AC/DC, making it versatile for various applications.

How does the relay handle response times in voltage fluctuations?

The adjustable operating time allows for fine-tuning response to fluctuations, with settings from 0.1 to 30 seconds based on specific needs.

Is there a specific wiring method recommended for installation?

The relay supports screw terminal connections and is compatible with solid wire or twisted wire configurations, ensuring a reliable and secure installation.

What types of load can the relay manage?

The specified output relay can manage a resistive load of up to 5A at 250VAC and up to 3A with a 50,000 operation life rating in electrical applications.

Standards

UL 60947-5-1, UL 508, IP 20

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Contact Configuration	SPDT
Voltage Sensing Range	1 → 10 V ac/dc, 15 → 150 V ac/dc, 3 → 30V ac/dc
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Time Delay	0.1 → 30s
Frequency Sensing Range	40 → 500Hz
Series	K8AK-VS
Height	95mm
Dimensions	22.5 x 100 x 95mm
Minimum Operating Temperature	-20°C
Special Features	IP20 Touch Safe Terminals
Width	100mm
Maximum Operating Temperature	+60°C
Standards Met	CCC, CE, CSA, cURus
Minimum Frequency Sensed	40Hz
Maximum Voltage Sensed	10 V ac/dc, 30 V ac/dc, 150V ac/dc
Operating Temperature Range	+60°C

Monitoring relay 22.5mm wide, Single phase over or under voltage 1 to 150V AC or DC, One SPDT, 100-240 VAC

Omron K8AK-VS2 100-240VAC, Voltage Monitoring Relay, 1 Phase, SPDT, 1 → 10V ac/dc, DIN Rail

DOWNLOAD CATALOG

K8AK-VS2 100-240VAC Brochure - The Smart Way to Protect Your System A700000013470663
