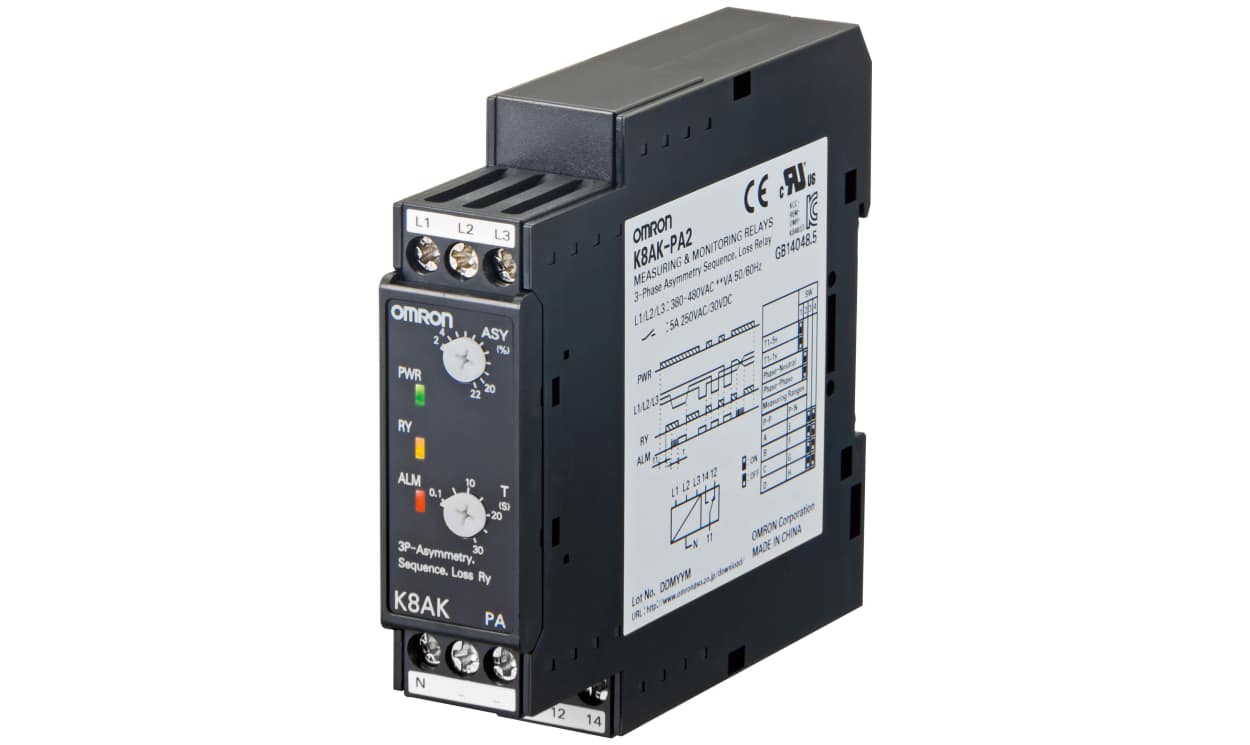

Omron K8AK-PA2, Phase, Voltage Monitoring Relay, SPDT, 220 → 480V ac, DIN Rail

Name: Omron K8AK-PA2, Phase, Voltage Monitoring Relay, SPDT, 220 → 480V ac, DIN Rail
Brand: OMRON
SKU: K8AK-PA2
Availability: OutOfStock

Part Number : K8AK-PA2

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron three-phase asymmetry and phase-sequence phase-loss relay K8AK-PA ideal for 3-phase voltage asymmetry monitoring for industrial facilities and equipment. Switch setting for 3-phase 3-wire or 3-phase 4-wire power supply.

Greater resistance to inverter noise
One SPDT output relay, 5 A at 250 VAC (resistive load)
World-wide power specifications supported by one unit (switchable)
Relay status can be monitored using LED indicator

Brand	Omron
Monitoring Application	Phase, Voltage
Contact Configuration	SPDT
Voltage Sensing Range	220 → 480V ac
Mounting Type	DIN Rail
Frequency Sensing Range	10 → 55Hz
