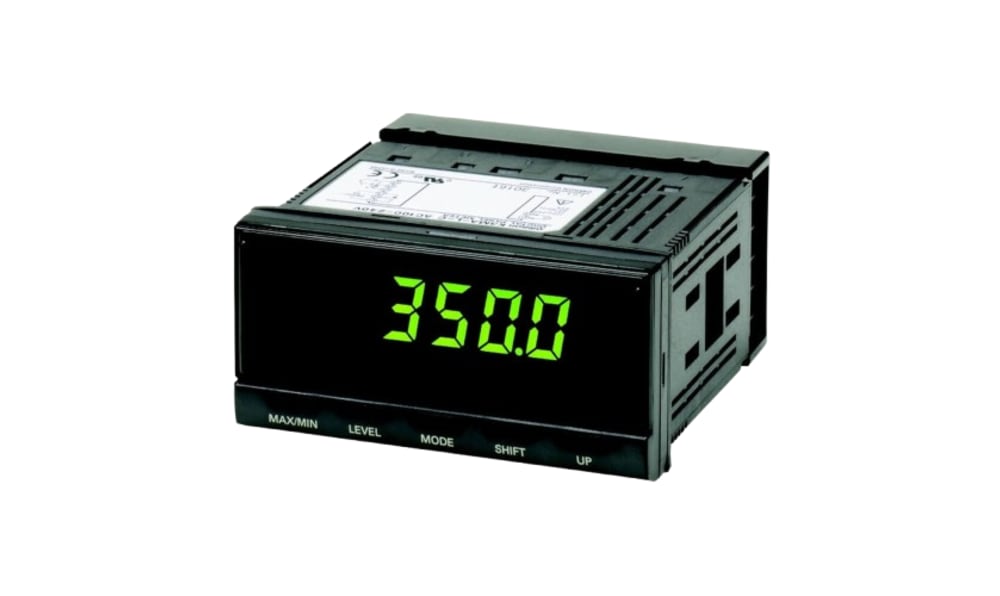

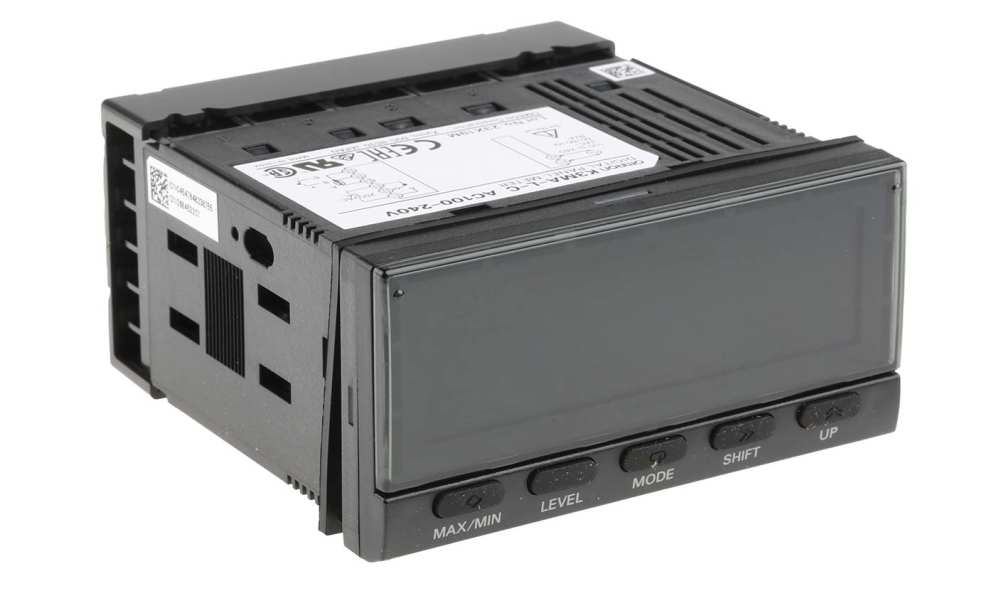

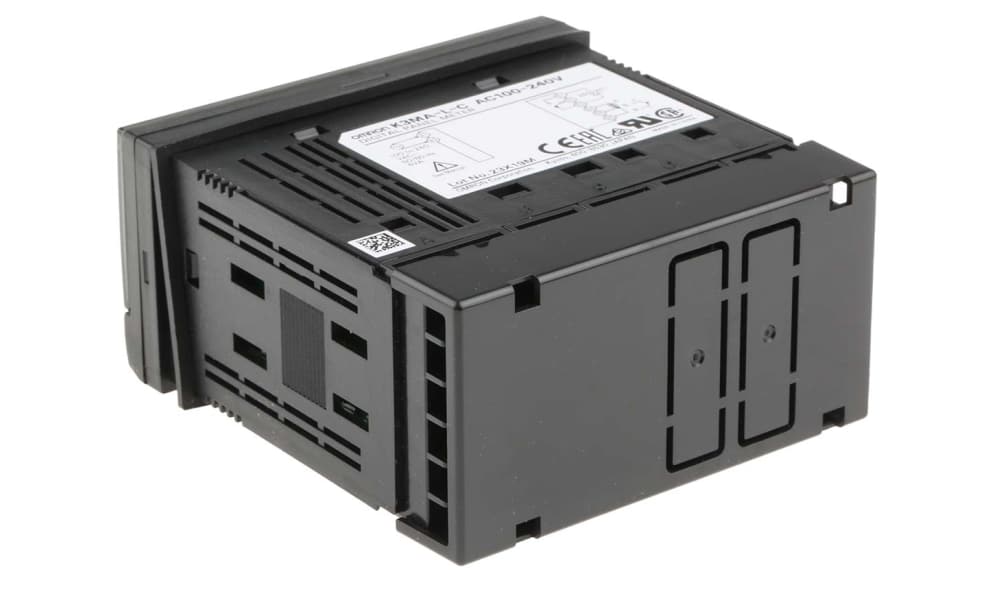

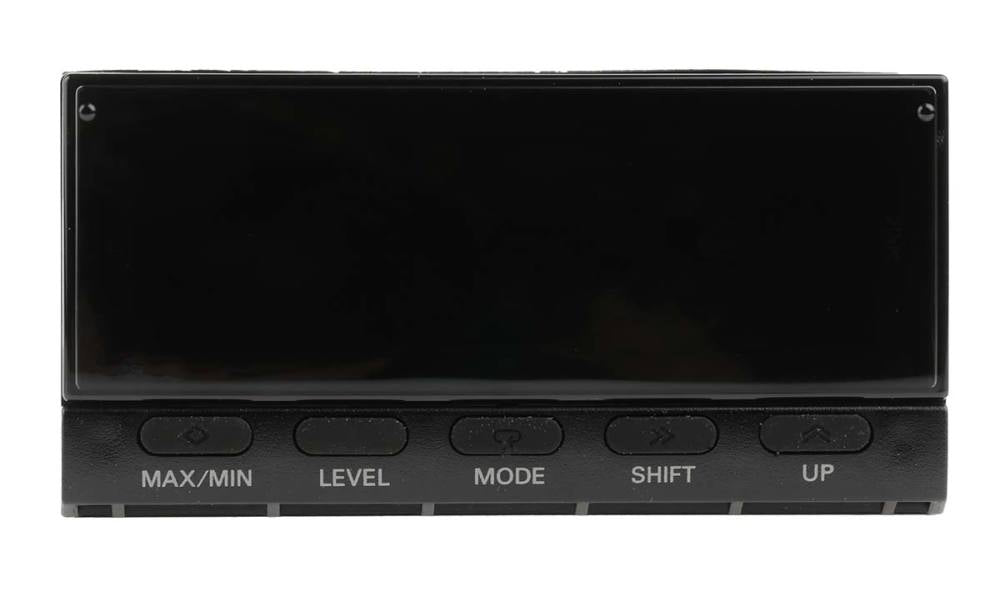

Omron K3MA-L-C 100-240VAC, K3MA LCD Digital Panel Multi-Function Meter for Temperature, 48mm x 96mm

Part Number : K3MA-L-C 100-240VAC

Availability: Sold out

Detailed Description
Specifications

Omron K3MA Series Digital Panel Multi-Function Metre, 4-Digit LCD Display, 100 to 240 V AC Supply Voltage - K3MA-L-C AC100-240

This digital panel multi-function meter is designed for precise temperature measurement. The LCD temperature meter features a compact size with a cut-out dimension of 48mm x 96mm, making it suitable for panel mounting in various industrial applications. It operates on an input voltage range of 100 to 240 V AC, providing versatility for different environments.

Features & Benefits

• Highly visible dual-colour LCD display enhances readability
• Average processing function reduces signal flicker for accurate readings
• Front-panel key operation simplifies user settings and adjustments
• Non-volatile memory retains settings even during power loss

Applications

• Monitoring industrial furnace temperatures
• Temperature display in moulding equipment
• Temperature tracking for generator motor bearings
• Suitable for HVAC systems and temperature-critical

Which types of temperature sensors can be connected to this device?

It supports a range of inputs including various thermocouples (K, J, T, E, L, U, N, R, S, B) and platinum resistance thermometers like Pt100 and JPt100, allowing for diverse measurement capabilities.

How does the average processing feature improve measurement accuracy?

The average processing function stabilises displayed readings by averaging fluctuating input signals, which helps eliminate sudden spikes or noise in the measurement results.

What ensures the device’s durability in tough industrial conditions?

The water- and dust-proof front panel, rated at NEMA4X (IP66 equivalent), protects against harsh environmental factors, while the provided finger protective cover adds an extra layer of safety against electric shock.

How easy is it to install the meter in a control panel?

Installation involves inserting the meter into the panel cut-out, securing it with the provided adaptor, and attaching a rubber gasket for waterproofing, making setup straightforward and efficient.

Brand	Omron
Properties Measured	Temperature
Display Type	LCD
Cutout Height	48mm
Cutout Width	96mm
Depth	80mm
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Series	K3MA
