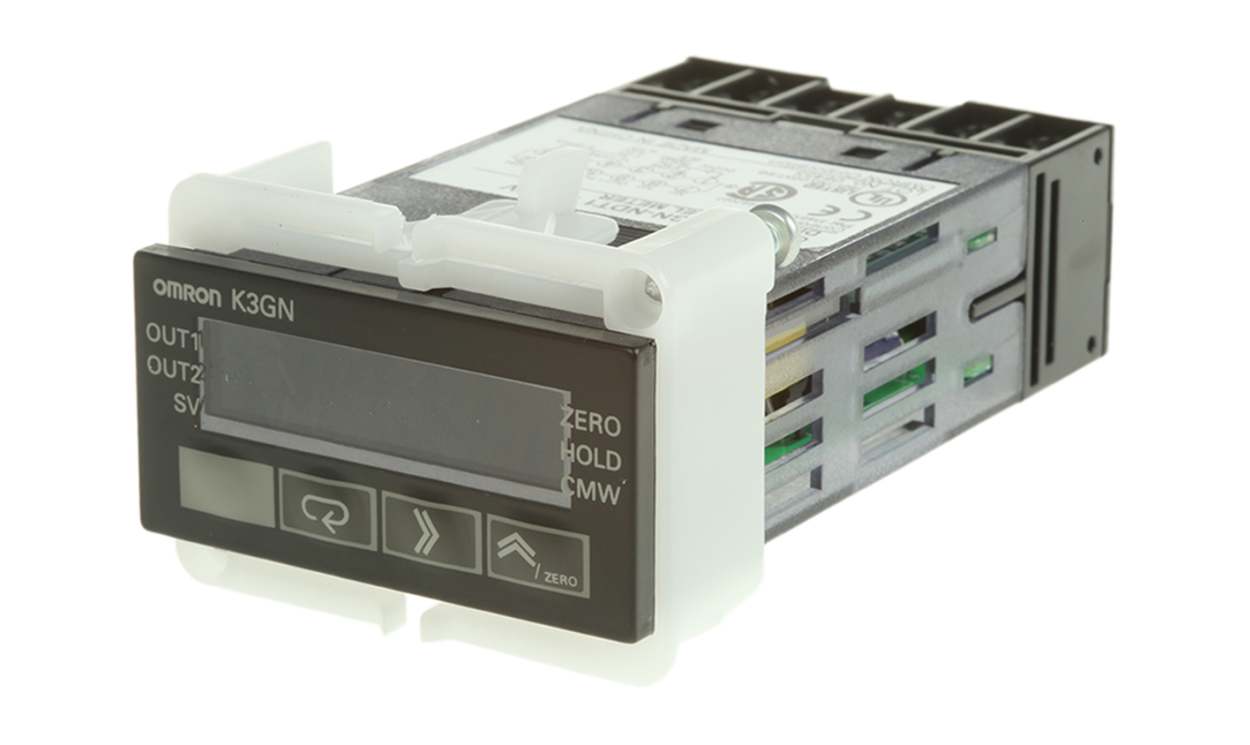

OMRON K3GN-NDT1 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 24 V dc

Name: OMRON K3GN-NDT1 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 24 V dc
Brand: OMRON
SKU: K3GN-NDT1 24VDC
Availability: OutOfStock

Part Number : K3GN-NDT1 24VDC

Running on a 24 V dc supply, the OMRON K3GN-NDT1 24VDC is a K3GN LCD panel meter for current and voltage. It mounts in a 22 x 44.8 mm cutout.

Supply voltage: 24 V dc
Properties measured: current, voltage
Display: LCD
Cutout: 22 x 44.8 mm
Operating temperature: -10 to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron K3GN Series Digital Panel Multi-Function Meter, 24V DC Supply Voltage, 22mm Cutout Height - K3GNNDT1DC24

This digital panel multi-function meter is an intelligent device perfect for measuring current and voltage across various applications. With a compact design, it features an LCD display that enhances visibility in different lighting conditions, ensuring clear measurements. The meter operates at a supply voltage of 24V DC, making it ideal for industrial settings.

Features & Benefits

• Multi-range input accommodates standard analogue signals
• High contrast backlit LCD ensures excellent visibility
• High protection rating against dust and moisture
• Programmable output actions provide tailored functionality
• Operates efficiently within a wide temperature range

Applications

• Used for precise current and voltage measurements in control panels
• Ideal for industrial automation systems requiring digital data display
• Suitable for monitoring RPM in various machinery
• Applicable in maintaining operational parameters for PLCs and PCs
• Effective for measuring and displaying sensor outputs in real-time

How does the multi-range input feature enhance usability in different settings?

The multi-range input allows the meter to accommodate various standard signals, making it versatile for different applications, from measuring low currents to higher voltage levels.

What types of outputs can be programmed with this meter?

The device supports multiple output configurations including two relay outputs and three transistor outputs, tailored to meet specific control needs based on the user's setup.

Can this meter be used in environments with extreme temperatures?

Yes, the meter operates efficiently in ambient temperatures ranging from -10°C to +55°C, making it suitable for diverse industrial environments.

How does the backlit LCD display contribute to operational efficiency?

The high-contrast backlit LCD display ensures that measurements are easily readable in various lighting conditions, enabling users to monitor processes effectively throughout the day.

Is it possible to connect the meter for remote monitoring and control?

Yes, with RS-485 communication capabilities, the meter allows for seamless integration with other systems, facilitating remote monitoring and data logging for enhanced operational efficiency.

Omron K3N Series

Brand	Omron
Properties Measured	Current, Voltage
Display Type	LCD
Cutout Height	22mm
Cutout Width	44.8mm
Supply Voltage	24 V dc
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Series	K3GN

OMRON K3GN-NDT1 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 24 V dc

DOWNLOAD CATALOG

K3GN-NDT1 24VDC Manual - K3GNNDT1DC24 A700000014068397
