OMRON K3GN-NDC-FLK 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 22 x 44.8 mm

Name: OMRON K3GN-NDC-FLK 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 22 x 44.8 mm
Brand: OMRON
SKU: K3GN-NDC-FLK 24VDC
Availability: OutOfStock

Part Number : K3GN-NDC-FLK 24VDC

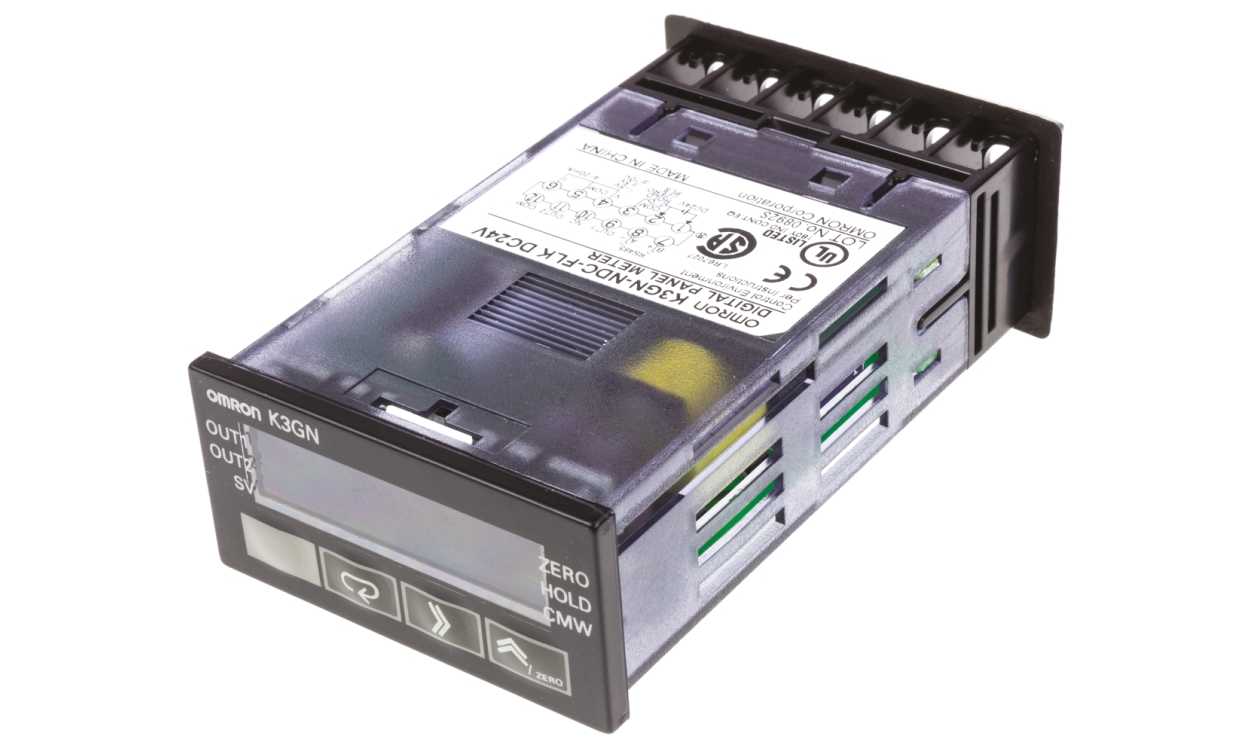

OMRON K3GN-NDC-FLK 24VDC is an LCD digital panel multi-function meter for current and voltage, sized for a 22 x 44.8 mm panel cutout.

Properties measured: current, voltage
Display: LCD
Cutout: 22 x 44.8 mm
Operating temperature: -10 to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Process Panel Meters

Back lit 7mm high 5 digit LCD display (-19999 to 99999)
Configurable analogue inputs: 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs
Supply voltage: 24V d.c.
Non-voltage and open collector inputs suitable for sensors, encoders and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz
All inputs are simple to scale by setting the lower and upper limits and what they are to represent which are automatically linearised to the required scale
Accuracy ±0.1% Full Scale
Front panel protected to NEMA 4 (IP66)
Programmable display changes colour when activation or de-activation of outputs
Panel cut-out: 45 x 22.2mm
Dimensions: H24mm x W48mm x D83mm; depth behind panel: 80mm
CE marked in compliance with all current European noise and emissions regulations

Approvals

UL and CSA

Omron K3N Series

Brand	Omron
Properties Measured	Current, Voltage
Display Type	LCD
Cutout Height	22mm
Cutout Width	44.8mm
Minimum Temperature	-10°C
Maximum Temperature	+55°C

OMRON K3GN-NDC-FLK 24VDC | Digital Panel Multi-Function Meter | Current, Voltage, 22 x 44.8 mm

DOWNLOAD CATALOG

K3GN-NDC-FLK 24VDC Datasheet 0900766b8157e470
