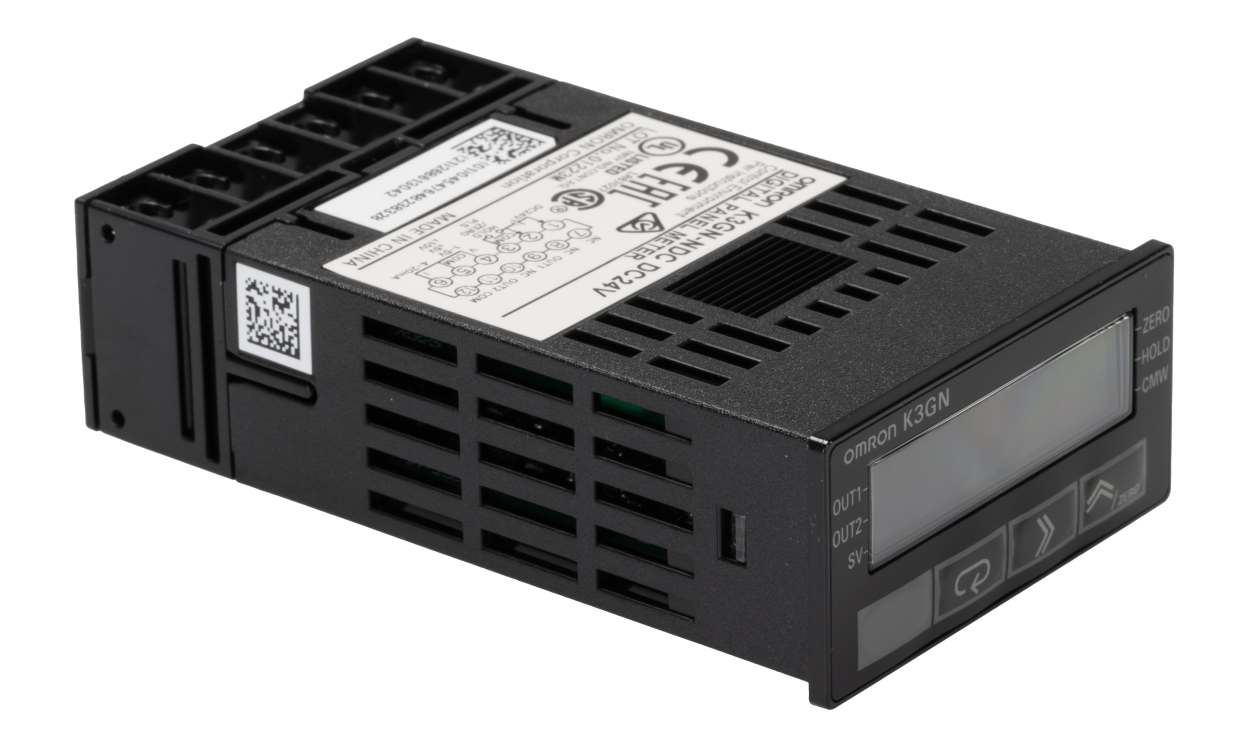

Omron K3GN-NDC 24VDC, K3GN 7 Segment LCD Digital Panel Multi-Function Meter for Current, Pulse, Voltage, 22.2mm x 45mm

Name: Omron K3GN-NDC 24VDC, K3GN 7 Segment LCD Digital Panel Multi-Function Meter for Current, Pulse, Voltage, 22.2mm x 45mm
Brand: OMRON
SKU: K3GN-NDC 24VDC
Availability: OutOfStock

Part Number : K3GN-NDC 24VDC

Availability: in stock

Detailed Description
Specifications
Downloads

Omron K3GN Series Digital Panel Multi-Function Meter, 7-Segment LCD Display - K3GN-NDC 24 VDC

This digital panel multi-function metre is designed for accurate measurements across various industrial applications. It features a clear 7 segment LCD display for current, voltage, and pulse readings, helping users effectively monitor their systems. Operating within a temperature range of -10 to +55°C, this metre is suitable for different environments, ensuring dependability for professionals in automation and electrical fields.

Features & Benefits

• Electromechanical design enhances measurement accuracy
• Multiple measurement ranges support versatility
• Easy-to-read display allows for quick assessments
• Compact cut-out dimensions enable seamless installation
• Robust approvals confirm compliance with industry standards

Applications

• Utilised in automation systems for monitoring electrical performance
• Ideal for testing and diagnostics in electrical installations
• Employed in control panels for real-time operational data

What voltage and current ranges can be measured?

It can measure from 0 to 10V DC and 0 to 20mA.

How do I install the device in a control panel?

The device fits into a cut-out of 22.2mm height by 45mm width for easy integration.

Can it operate in extreme temperature conditions?

Yes, it operates between -10°C and +55°C, suitable for various environments.

Omron K3N Series

Brand	Omron
Properties Measured	Current, Pulse, Voltage
Display Type	7 Segment LCD
Cutout Height	22.2mm
Cutout Width	45mm
Depth	83mm
Number of Digits	5
Digit Height	7 mm
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Measurement Range	0 → 10 V dc, 0 → 20 mA, 0 → 5 V dc, 1 → 5 V dc, 4 → 20 mA
Series	K3GN
Approvals	CSA C22.2, UL 508
Minimum Measurement	0 V dc, 0 mA, 1 V dc, 4 mA, 5 V dc
Meter Type	Electromechanical

Omron K3GN-NDC 24VDC, K3GN 7 Segment LCD Digital Panel Multi-Function Meter for Current, Pulse, Voltage, 22.2mm x 45mm

DOWNLOAD CATALOG

K3GN-NDC 24VDC Manual - K3GN-NDC 24 VDC A700000012229399
