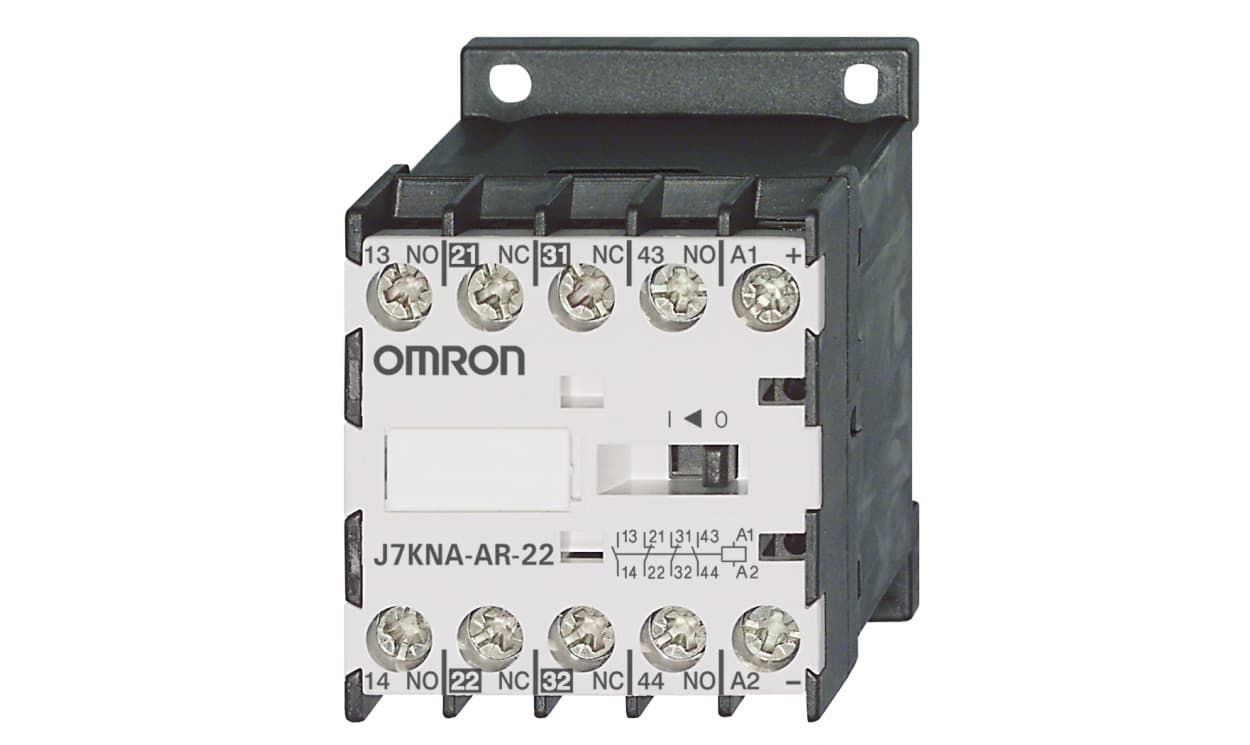

Name: Omron J7KNA-AR-22 24D, J7KNA Contactor Relay, 24 V dc Coil, 4-Pole, 10 A, 2NC + 2NO
Brand: OMRON
SKU: J7KNA-AR-22 24D
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron J7KNA-AR-22 24D, J7KNA Contactor Relay, 24 V dc Coil, 4-Pole, 10 A, 2NC + 2NO

Part Number : J7KNA-AR-22 24D

Availability: Sold out

Detailed Description
Specifications

Omron J7KNA Series Contactor Relay, 24V DC Coil Voltage, Screw Terminal - J7KNA-AR-22 24D

This contactor relay is designed for efficient electrical control in automated systems, ensuring safety and effectiveness in electrical circuits. With robust features, it meets the requirements of the automation and electrical industries.

Features & Benefits

• Rated for contact current up to 10A for handling significant loads
• Normal state configuration of 2NC + 2NO for efficient control
• Equipped with four auxiliary contacts for added functionality
• Designed with screw terminals for secure and easy wiring

Applications

• Used for motor control in industrial equipment
• Suitable for controlling lighting circuits in commercial buildings
• Ideal for automated machinery to enhance process control

What is the maximum operating temperature for this relay?

The maximum operating temperature is +60°C and can reach +90°C during high-performance scenarios.

How many auxiliary contacts does it support?

It features four auxiliary contacts configured as 2NO + 2NC, allowing for additional functionality in controlling other devices.

What type of terminal does it come with?

It is equipped with screw terminals, ensuring stable and durable connections during operation.

Is this suitable for use in automation systems?

Yes, it is specifically designed for automation applications, providing dependable switching capabilities in various electronic systems.

Brand	Omron
Coil Voltage	24 V dc
Number of Poles	4
Contact Current Rating	10 A
Series	J7KNA
Normal State Configuration	2NC + 2NO
Auxiliary Contact Configuration	2NO + 2NC
Number Of Auxiliary Contacts	4
Terminal Type	Screw
Width	45mm
Depth	49mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+60 °C, +90 °C
Pole and Throw Configuration	4P
