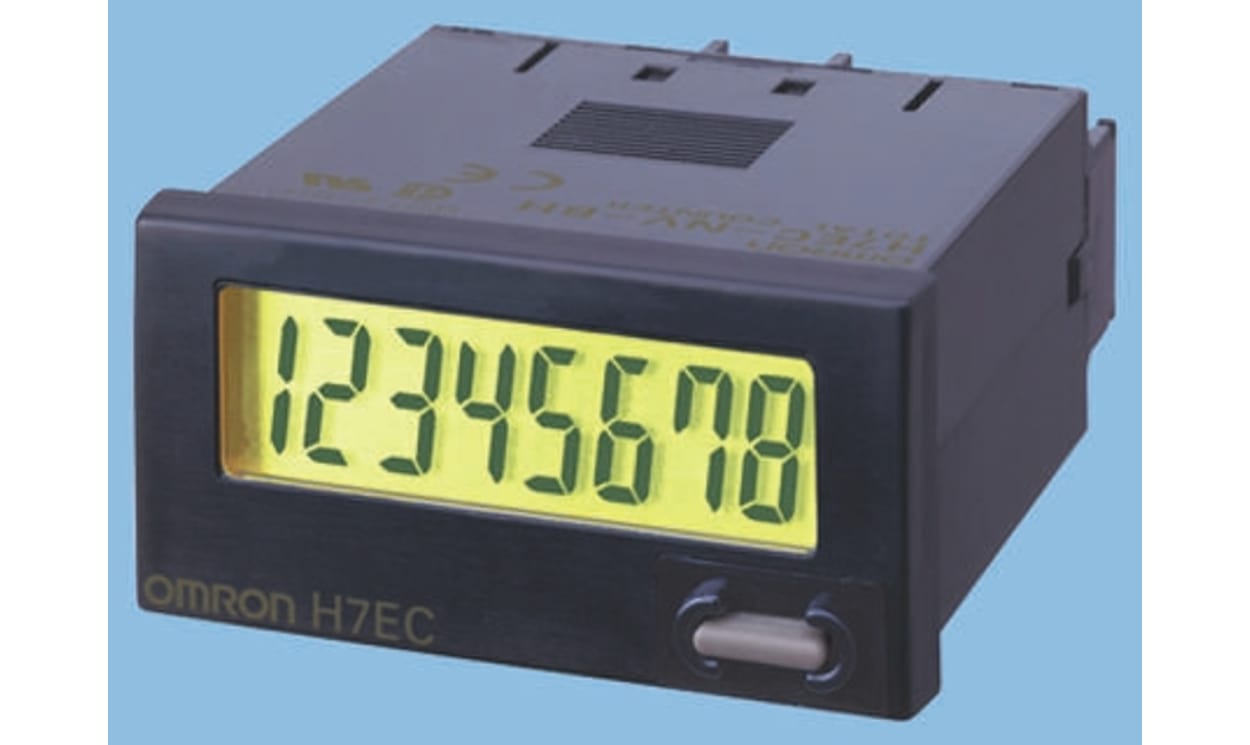

Name: Omron H7ET-NV1-BH, H7E Timer, 7 Digit LCD, 24 V dc
Brand: OMRON
SKU: H7ET-NV1-BH
Availability: OutOfStock

Omron H7ET-NV1-BH, H7E Timer, 7 Digit LCD, 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H7ET-NV1-BH, H7E Timer, 7 Digit LCD, 24 V dc

Part Number : H7ET-NV1-BH

Availability: Sold out

Detailed Description
Specifications

Omron H7E Series Counter, LCD Display, 0 to 999 h 59 m 59 s - H7ET-NV1-BH

This counter is a self-powered totaliser designed for high precision time measurements. Featuring a clear LCD display, this unit operates on a supply voltage of 24V DC. It is suitable for various installation environments thanks to its flush mount capabilities and compatibility with NEMA4/IP66 standards. Weighing only 60g, it is compact yet efficient, perfect for tight spaces without sacrificing performance.

Features & Benefits

• Backlit LCD enhances visibility in dimly lit environments
• Programmemable time counter with selectable display ranges
• Manual reset functionality for precise control
• PNP/NPN universal DC voltage input for versatile connections
• Screw terminal connections simplify setup and maintenance
• Dual operation modes improve usability for different applications

Applications

• Ideal for industrial timer solutions in manufacturing settings
• Used for tracking time in laboratory experiments and testing
• Suitable for mechanical assemblies needing precise countdowns
• Employed in projects requiring reliable performance in electrical systems

How does the dual operation mode enhance functionality in specific tasks?

The dual operation mode allows users to switch between different counting modes easily, enabling flexibility in operational tasks. This feature is particularly beneficial in applications requiring either time measurement or counting functions, tailored to varying project needs.

What kind of maintenance is required for optimal performance?

Regular checks on the battery lifespan are essential for maintaining functionality. The unit is designed for easy battery replacement, allowing continued use without significant downtime. Ensure connections remain secure and free of corrosion to prolong serviceability.

Can this counter be integrated into existing automation systems?

Yes, its PNP/NPN input compatibility enables seamless integration into most modern automation systems. Simply connect using the provided screw terminals, ensuring correct voltage levels to avoid damage to the unit.

Brand	Omron
Supply Voltage	24 V dc
Display Type	LCD
Function	Timer
Input Type	Voltage
Connection Type	Screw
Reset Method	Manual
Number of Digits	7
Mounting Type	Flush Mount
Count Direction	Up
Digit Height	8.6 mm
Backlighting	Yes
Display Range	0 → 999 h 59 m 59 s, 0 → 9999 h 59.9 m
Measurement Range	0 → 999 h 59 m 59 s, 0 → 9999 h 59.9 m
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Minimum Measurement	0 s
Series	H7E
Weight	60g
