Omron H3DT-A1 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.1 s → 1200 h, 1-Function, SPDT

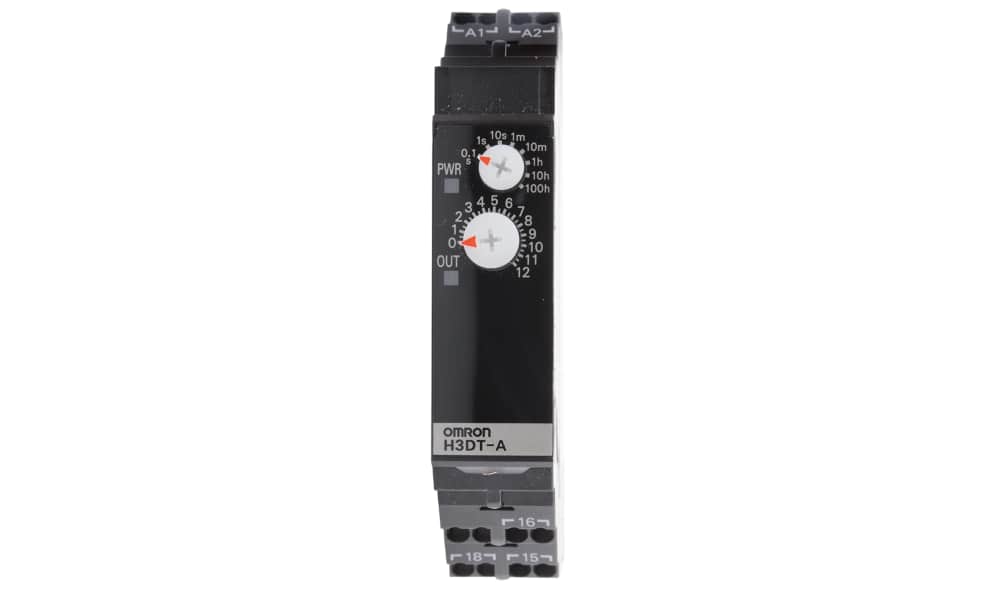

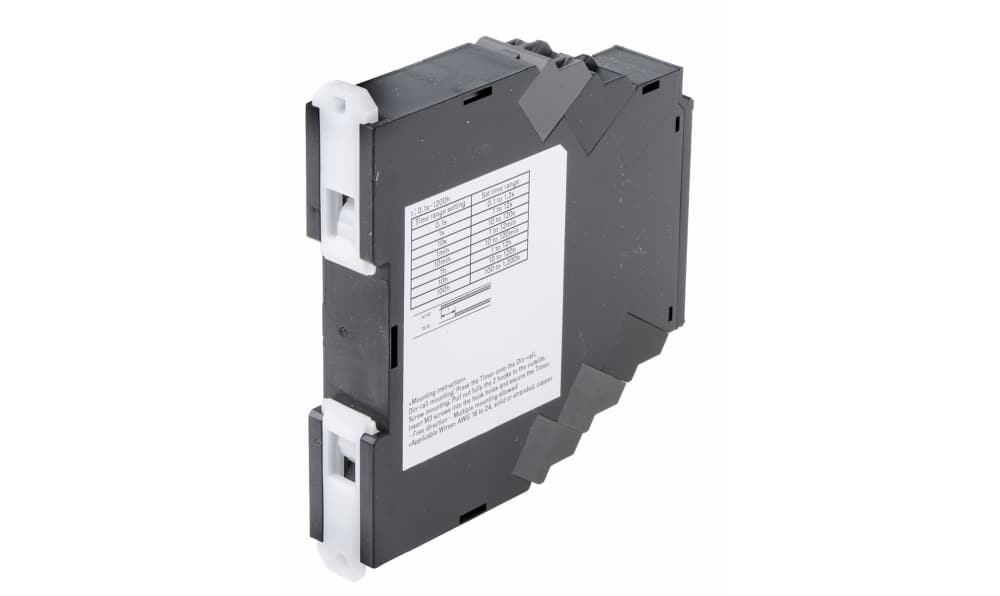

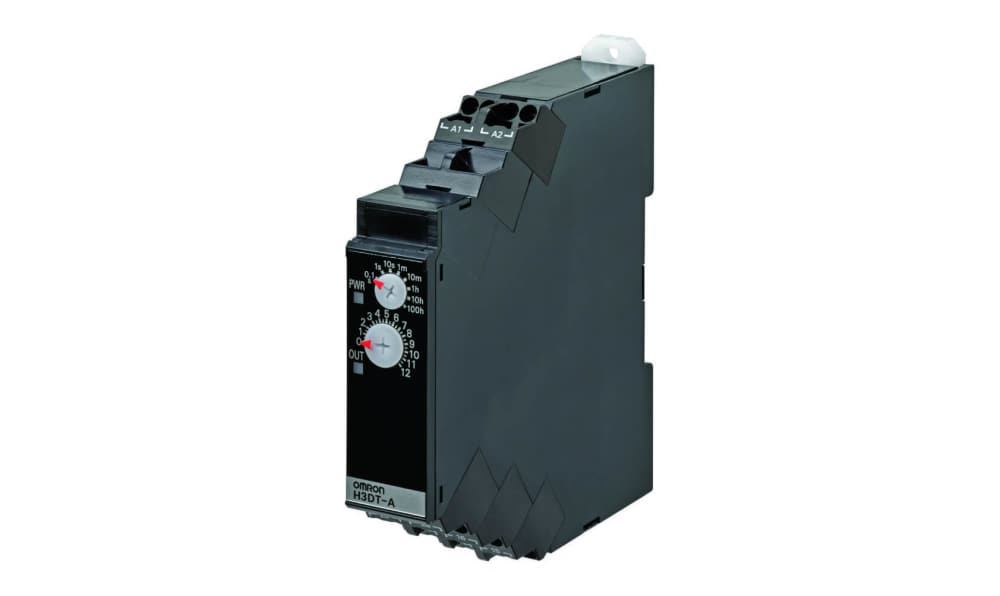

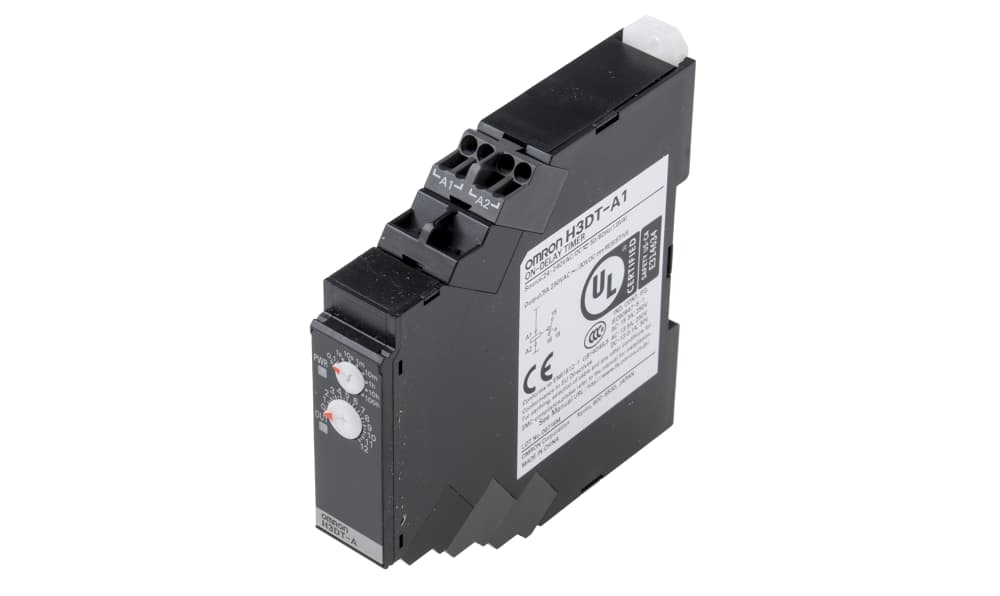

Name: Omron H3DT-A1 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.1 s → 1200 h, 1-Function, SPDT
Brand: OMRON
SKU: H3DT-A1 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DT-A1 24-240VAC/DC

Availability: Sold out

Detailed Description
Specifications

H3DT-A On Delay Timer

Solid-sate timer delay relays with push in plus technology are used for in-panel applications. They are ideal in space saving applications due to their slim design and help reduce work in control panels. The timers reduce power consumption by up to 60% to help reduce heat generation in control panels.

• Single mode function (ON delay)
• Slim design, 17.5 mm width
• Fast wiring due to push in plug technology
• Relay output
• 24-240 V ac/dc supply voltage
• DIN Rail mounting

Omron H3DT Series Timer Relay, 24 to 240 V AC/DC Supply Voltage, 5A Maximum Current - H3DT-A1

This timer relay is designed for automation and control applications within the electrical industry. Offering a supply voltage range of 24 to 240V AC/DC, this device is ideal for a variety of environments. With compact dimensions of 90mm in width, 100mm in depth, and a length of 17.5mm, it is easily mountable on DIN rails. This product operates in an ON delay mode, ensuring precise timing control for industrial processes.

Features & Benefits

• Single timer function simplifies operational setup
• SPDT contact configuration enables versatile connections
• Time range from 0.1s to 1200h allows for flexible timing
• Push-in terminal type ensures rapid and secure installation
• Operates effectively within a temperature range of -20°C to +60°C
• Maximum current rating of 5A supports many electrical applications

Applications

• Utilised in industrial machinery for timing control
• Suitable for HVAC systems to manage operational cycles
• Integrated into process control systems for precise timing
• Employed in lighting control for energy saving
• Ideal for automation tasks in manufacturing lines

What is the typical current rating that can be handled?

The maximum current that can be accommodated is 5A, making it suitable for various electrical applications.

How does the device maintain performance across temperature extremes?

It operates reliably within a temperature spectrum of -20°C to +60°C, allowing it to function in diverse environments.

What installation method is recommended for optimal performance?

The push-in terminal type allows for straightforward connections, promoting ease during installation on DIN rails.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.1 s → 1200 h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	240V
Terminal Type	Push In
Switch Configuration	SPDT
Minimum Voltage	24V
Width	90mm
Power Supply	External
Maximum Operating Temperature	+60°C
Depth	100mm
Length	17.5mm
Series	H3DT
