Omron H3CR-F8 24-48VAC/12-48VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 24V ac/dc, 2-Contact, 0.05 s → 30h, 1-Function, DPDT

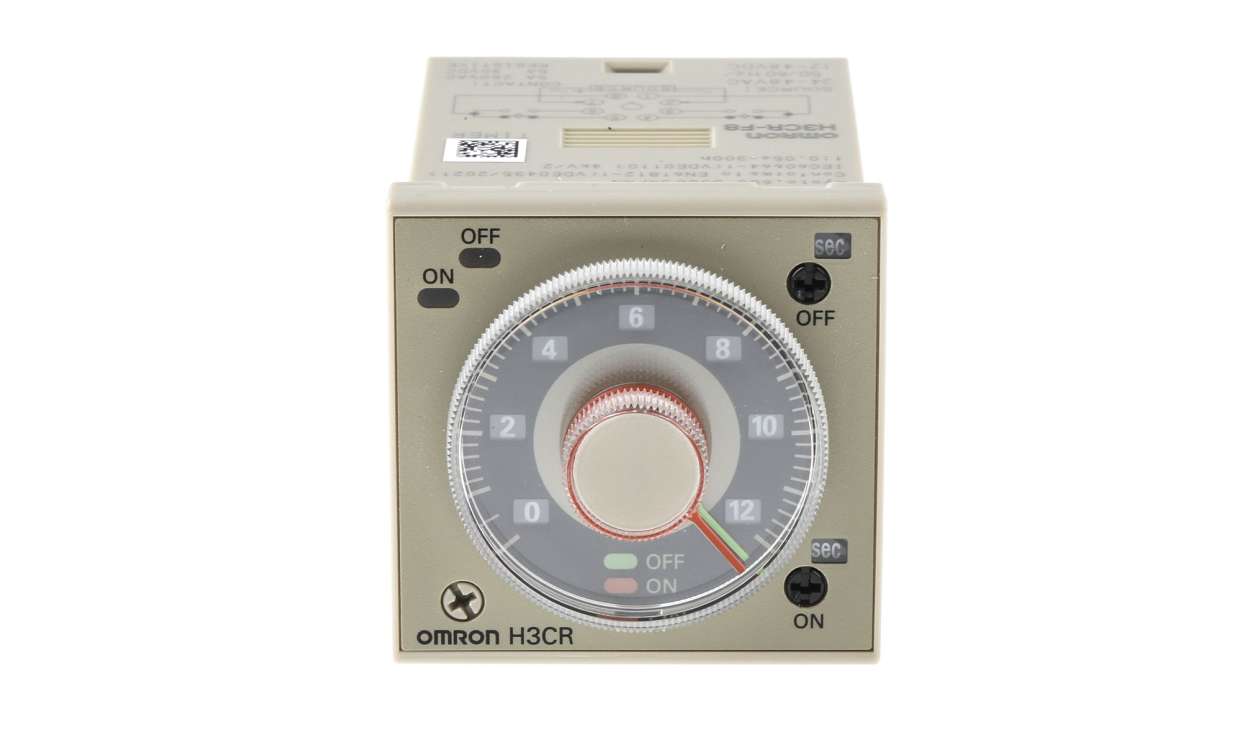

Name: Omron H3CR-F8 24-48VAC/12-48VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 24V ac/dc, 2-Contact, 0.05 s → 30h, 1-Function, DPDT
Brand: OMRON
SKU: H3CR-F8 24-48VAC/12-48VDC
Availability: OutOfStock

Part Number : H3CR-F8 24-48VAC/12-48VDC

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker OFF start, 0.05s-300h, DPDT, 5A, 24-48VAC, 12-48VDC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Timer Relay, Flicker OFF Type, ±0.2%FS Maximum Operating Time Accuracy - H3CR Series - H3CR-F8 AC/DC24

Make or break your electric circuit at just the right moment with this timer relay from OMRON. It has a flicker OFF function that causes its status output to gradually blink before it turns off. You'll find this component handy for applications when you need to indicate an impending shutdown, like an alarm system. With a maximum operating time accuracy of ±0.2%FS, you can be sure that this relay always keeps to time with minimal risk of errors.

Features & Benefits

• Integrated LED indicators for convenient status monitoring
• Mechanical lifespan of 20 million operations, so it's highly durable
• Resists shock and vibration for safe use in demanding conditions
• Compatible with DIN rail and panel mounting for versatile assembly

Applications

• Industrial automation
• Transport and logistics
• Laboratories
• Conveyor systems

What setting range does this relay have?

You can adjust the time delay of this relay to any setting between 0.05 seconds and 30 hours, depending on your needs.

How quickly does this relay reset after each operation?

With a maximum reset time of 0.1s, this relay swiftly returns to its original state after each operation.

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24V ac/dc
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF
Time Range	0.05 s → 30h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	DPDT
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	8-Pin Connector
Switch Configuration	DPDT
Power Supply	External
Width	48mm
Maximum Operating Temperature	+55°C
Length	48mm
Series	H3CR
Depth	84mm
Contact Material	Ag Alloy

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker OFF start, 0.05s-300h, DPDT, 5A, 24-48VAC, 12-48VDC
