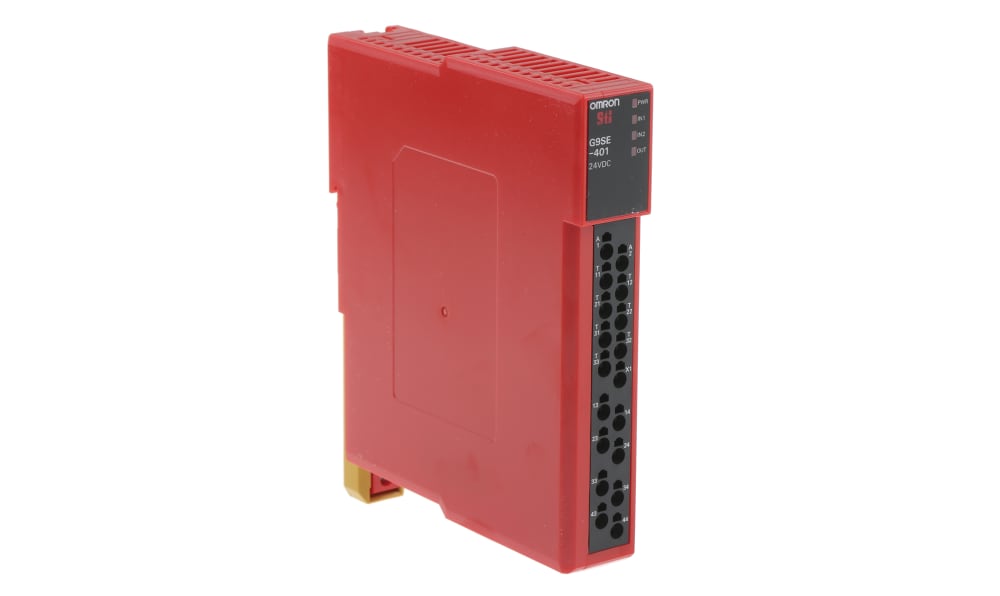

Omron G9SE-401 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 4 Safety Contacts

Name: Omron G9SE-401 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 4 Safety Contacts
Brand: OMRON
SKU: G9SE-401 DC24
Availability: OutOfStock

Part Number : G9SE-401 DC24

Safety relay unit, 24 VDC, 4 safety outputs 5 A max, aux. output

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron G9SE Safety Relay

The G9SE safety relay from Omron is ideal for a variety of safety input devices such as emergency stop switches, door switches, and light curtains. The screw-less terminals on the front of the G9SE makes installation quick and easy, even in a small control panel where space is limited. Intuitive LED indicators on the safety relay show the operating status of safety inputs and outputs, enabling faster and more accurate troubleshooting when the equipment stops.

Easy and reliable installation and maintenance
Simple wiring using screw-less terminals
Faster troubleshooting with status indicators
Applicable safety standards
OFF-delayed safety output models are also available (stock no. 890-3386 & 890-3395)
Slim design of only 17.5 or 22.5 mm saves space in the control panel

Standards

EN ISO 13849-1: PLe/Safety Category 4, IEC 62061: SIL3, EN81-1/-2.

Approvals

CE, UL, TUV, CCC.

OMRON Safety Relay, Push-In Terminals, 22.5 (W) x 144.5 (H) x 111.6mm (D) - G9SE Series - G9SE-401 DC24

Keen to catch process issues before they become dangerous? Use this OMRON safety relay to cut them off. With its emergency stop function, the unit halts appliances if a problem crops up so workers can safely inspect faulty machinery. By responding to signals in under 15ms, the device engages safety measures in a flash, safeguarding your fast-moving packing and machining setups. Wiring the component is a breeze thanks to its simple push-in terminals. For hassle-free inspections, the relay clearly displays its power and input status via handy LED indicators.

Features & Benefits

• Snap-on rail mounting ensures easy tool-free installation
• Compact dimensions of 22.5 (W) x 144.5 (H) x 111.6mm (D) to slide into busy systems
• Electrical lifespan of over 50,000 cycles for long-lasting control
• Dual-channel input to monitor two circuits at once
• Works with cables up to 100m in length, supporting flexible layout

Applications

• Automated assembly lines
• Aerospace engineering
• Construction industry

Does this product signal my control device when it switches?

Yes, this relay comes with an auxiliary contact, so it automatically notifies a controller to switch linked components if it trips.

Brand	Omron
Supply Voltage	24V dc
Number of Channels	2
Safety Contacts	4
Function	Emergency Stop
Auxiliary Contacts	1
Reset Method	Automatic & Manual
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
SIL IEC 61508	3
Terminal Type	Screw
Standards Met	CE, UL
Configurable	Yes
Depth	112mm
Safety Category	4
Width	22.5mm
Series	G9SE
Length	144.5mm
