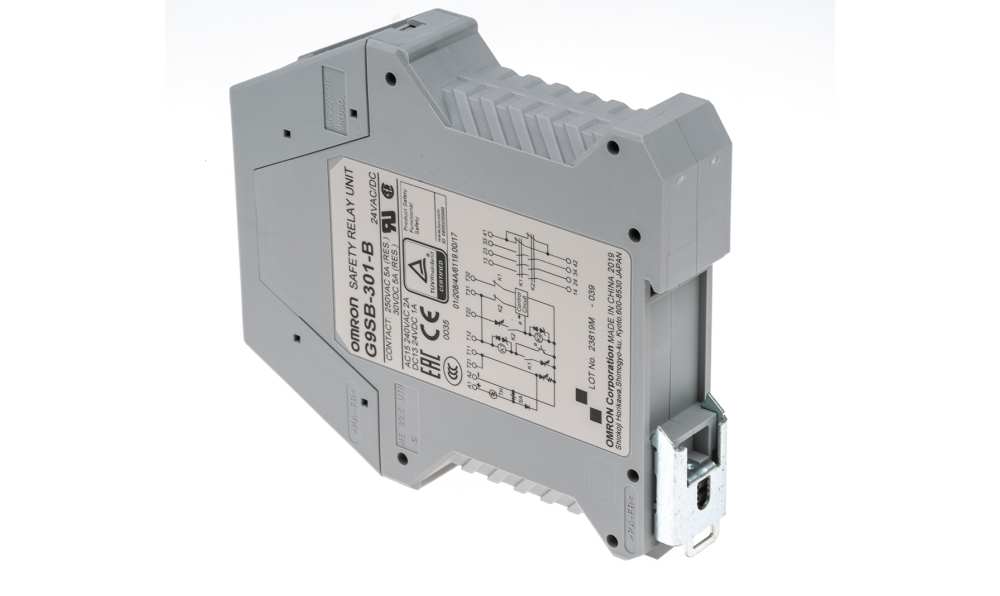

OMRON G9SB-301-B AC/DC24 | Emergency Stop Safety Relay | 24 V AC/DC, 3 Safety Contacts, Auto Reset
The OMRON G9SB-301-B AC/DC24 is a 22.5 mm DIN-rail emergency stop safety relay with 3PST-NO safety outputs (5 A) and an SPST-NC auxiliary contact. It uses automatic reset with common input and runs on 24 V AC/DC.
- Outputs: 3PST-NO, 5 A; auxiliary SPST-NC
- Supply voltage: 24 V AC/DC
- Safety category 4 (ISO 13849-1)
- Reset: automatic
- Dimensions (L x W x D): 100 x 23 x 112 mm
- Approvals: CE, CSA, cURus
- Detailed Description
- Specifications
- Features
- Downloads
G9SB, Safety Relays, Ultra Slim
Manual and automatic reset units
Certification up to category 4 according to EN954-1 (depending on the application)
Can also be used with safety sensors F3SN, F3SH, F3S-B, F3STGR, F3SL, F3S-J
Conforms to EN standards (TUV approval)
Note
Approvals
OMRON Safety Relay, DIN Rail Mounting, 22.5 (W) x 100 (H) x 112mm (D) - G9SB Series - G9SB-301-B AC/DC24
Features & Benefits
• Electrical service life of at least 100,000 operations to provide long-term safety measure control
• Low maximum power usage of 1.7W to cut down on energy consumption
• Screw terminals means fingers stay clear of conductors
Applications
• Process control
• Packaging industry
How do I reset this safety relay?
| Brand | Omron |
| Series | G9SB |
| Supply Voltage | 24V ac/dc |
| Function | Emergency Stop |
| Safety Contacts | 3 |
| Auxiliary Contacts | 1 |
| Number of Channels | 2 |
| Safety Category ISO 13849-1 | 4 |
| Depth | 112 mm (4.41 in) |
| Width | 23 mm (0.906 in) |
| Length | 100 mm (3.94 in) |
| Reset Method | Automatic |
| Standards Met | CE, CSA, cURus |
| Safety Category | 3 |
Safety relay unit, DIN 22.5mm, 3PST-NO (Category 4), 5 A, SPST-NC aux, 1 or 2 channel input, auto-reset (+ common input)
