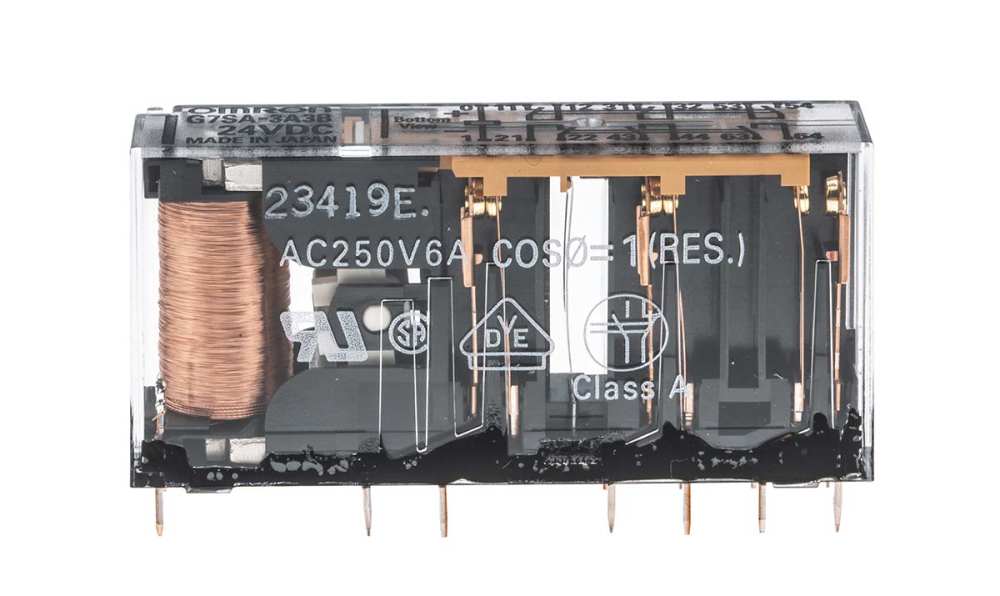

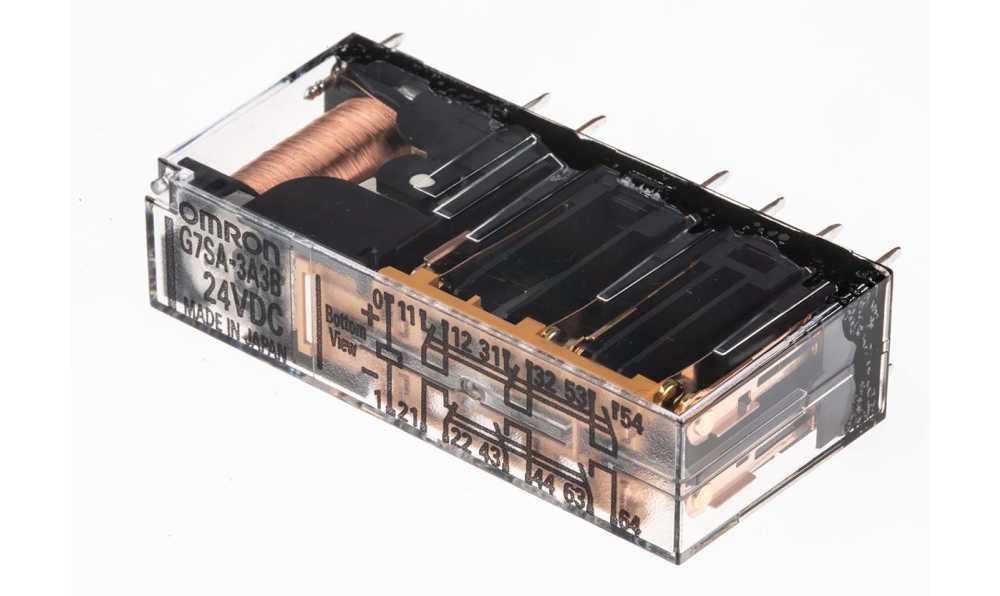

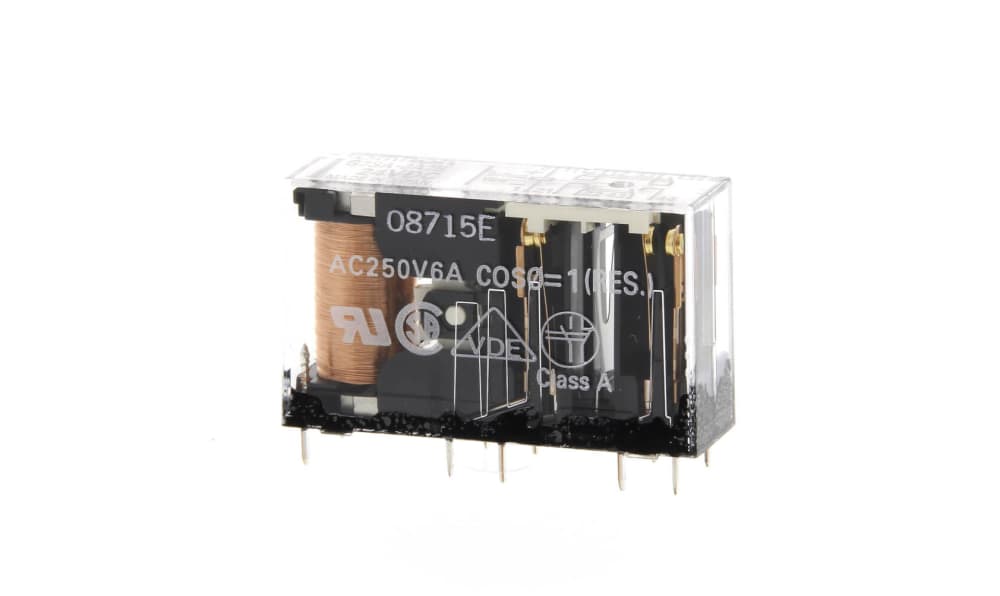

Omron G7SA-3A3B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT

Name: Omron G7SA-3A3B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT
Brand: OMRON
SKU: G7SA-3A3B 24VDC
Availability: OutOfStock

Part Number : G7SA-3A3B 24VDC

Availability: in stock

Detailed Description
Specifications
Downloads

OMRON Force-Guided Relay, Reinforced Insulation, 6A Rated Carry Current - G7S Series - G7SA-3A3B DC24

Sync the movement of your switching mechanism using this force-guided relay from OMRON. It has multiple sets of linked contacts, all of which change state simultaneously. This prevents hazards caused by a contact partially opening or closing, leaving a dangerous process active when it shouldn't be. You'll find it's handy as a fail-safe solution in your interlock switches, emergency shutdown systems and light curtains. An operating time of 20ms and response time of 10ms accommodate rapid switching to change the contact's state in a jiffy.

Features & Benefits

• Reinforced insulation between input and output poles for reduced risk of hazards
• Handles 36,000 operations per hour for reliable performance and speedy switching
• Withstands challenging conditions, thanks to its resistance to shock and vibration
• Mechanical durability rating of 10 million cycles for long-lasting use

Applications

• Oil and gas industry
• Medical equipment
• Railway infrastructure

How quickly does this relay return to its original state?

A 20ms release time indicates that this relay quickly returns to its resting state after the control signal is removed, so it's highly responsive to the demands of your safety-critical applications.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	3PDT
Number of Poles	6
Coil Resistance	1.152 kΩ
Switching Current	6A
Coil Power	800mW
Maximum Switching Current AC	6 A
Maximum Switching Current DC	6 A
Maximum Switching Voltage DC	125V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Approvals	CSA, UL
Standards Met	CQC, CSA, UL
Depth	13mm
Contact Material	Ag Alloy
Minimum Operating Temperature	-40°C
Series	G7S
Maximum Operating Temperature	+85°C

Omron G7SA-3A3B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT

DOWNLOAD CATALOG

G7SA-3A3B 24VDC G7SA Datasheet 0900766b816cd56d

G7SA-3A3B 24VDC Guide - Safety Solution A700000010489194

G7SA-3A3B 24VDC Brochure - Machine Safety Solutions A700000010489211
