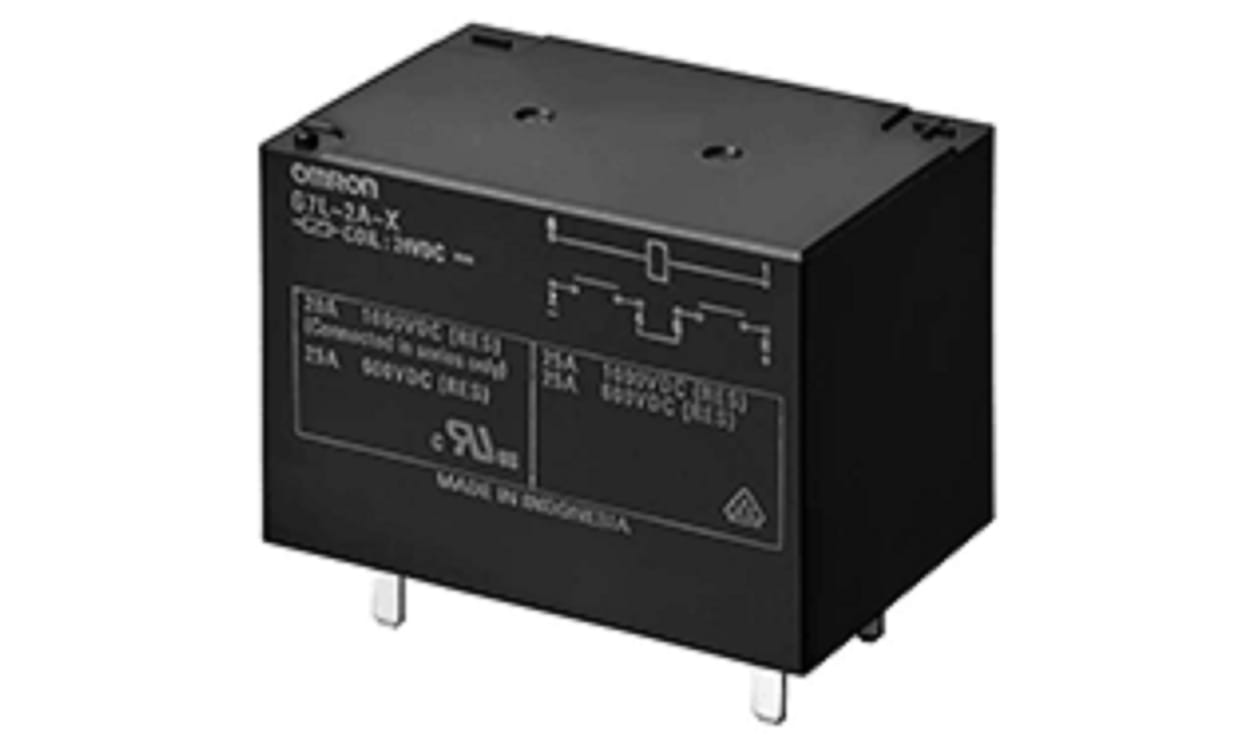

OMRON G7L-2A-X-L DC24 | PCB Mount Power Relay | 24 V DC Coil, DPST, 20 A

Name: OMRON G7L-2A-X-L DC24 | PCB Mount Power Relay | 24 V DC Coil, DPST, 20 A
Brand: OMRON
SKU: G7L-2A-X-L DC24
Availability: OutOfStock

Part Number : G7L-2A-X-L DC24

The DPST OMRON G7L-2A-X-L DC24 power relay handles 20 A and runs from a 24 V DC coil. This non-latching relay (G7L-2A-X-L DC24) is specified for PCB mounting.

Coil voltage: 24 V DC
Contact configuration: DPST (2 poles)
Switching current: 20 A

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron power relay is compact power relay capable of switching 1,000 VDC loads, dc high capacIty switching for both normal and reverse polarIty available by adding reverse polarIty specification addItion.

Two poles wired in series to break or switch 600 to 1,000 VDC
Contribute for lower power consumption(low power consumption of approx 600 mW at 50% reduced coil voltage)
UL and EN conformed
Designed for safety with 6.0-mm contact gap (two-pole series wiring)
