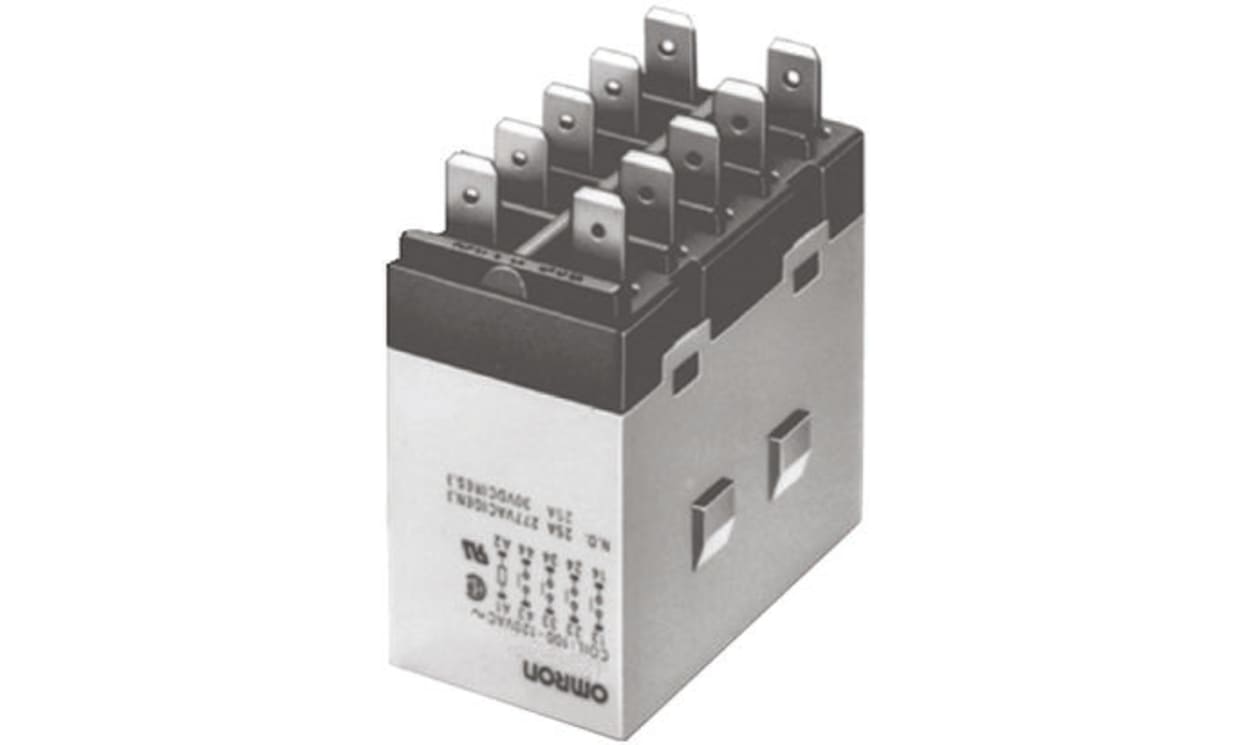

Name: Omron G7J-4A-T AC100/120, Panel Mount Power Relay, 120V ac Coil, 25A Switching Current, 4PST-NO
Brand: OMRON
SKU: G7J-4A-T AC100/120
Availability: OutOfStock

Omron G7J-4A-T AC100/120, Panel Mount Power Relay, 120V ac Coil, 25A Switching Current, 4PST-NO

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7J-4A-T AC100/120, Panel Mount Power Relay, 120V ac Coil, 25A Switching Current, 4PST-NO

Part Number : G7J-4A-T AC100/120

Availability: Sold out

Detailed Description
Specifications

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	4PST-NO
Mounting Type	Panel Mount
Switching Current	25A
Number of Poles	4
Series	G7J
Latching	No
Terminal Type	Quick Connect
Length	51.5mm
Height	64mm
Contact Material	Silver
Depth	34.5mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Maximum Switching Power DC	750 W
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
