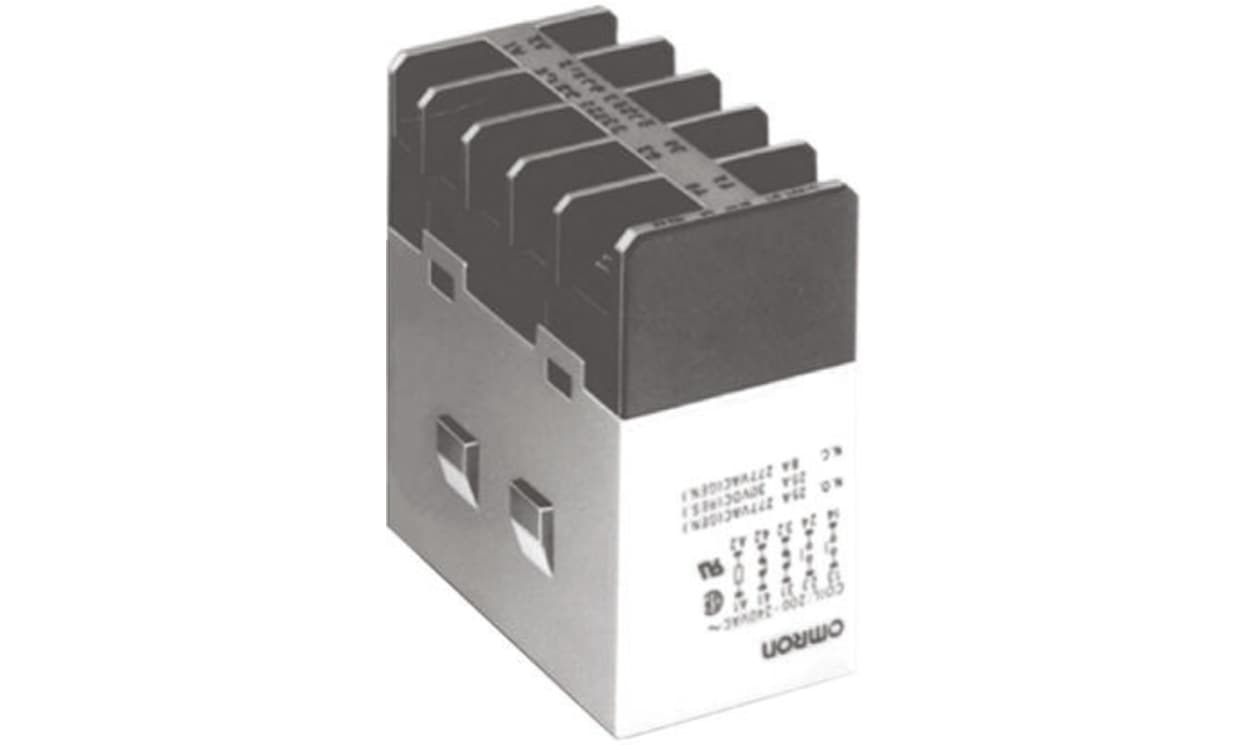

Name: Omron G7J-3A1B-B 12VDC, Panel Mount Power Relay, 12V dc Coil, 25A Switching Current, 3PDT
Brand: OMRON
SKU: G7J-3A1B-B 12VDC
Availability: OutOfStock

Omron G7J-3A1B-B 12VDC, Panel Mount Power Relay, 12V dc Coil, 25A Switching Current, 3PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7J-3A1B-B 12VDC, Panel Mount Power Relay, 12V dc Coil, 25A Switching Current, 3PDT

Part Number : G7J-3A1B-B 12VDC

Availability: Sold out

Detailed Description
Specifications

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	3PDT
Mounting Type	Panel Mount
Switching Current	25A
Series	G7J
Latching	No
Terminal Type	Screw
Length	51.5mm
Coil Resistance	72Ω
Height	64mm
Depth	34.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Maximum Switching Power DC	750 W
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
