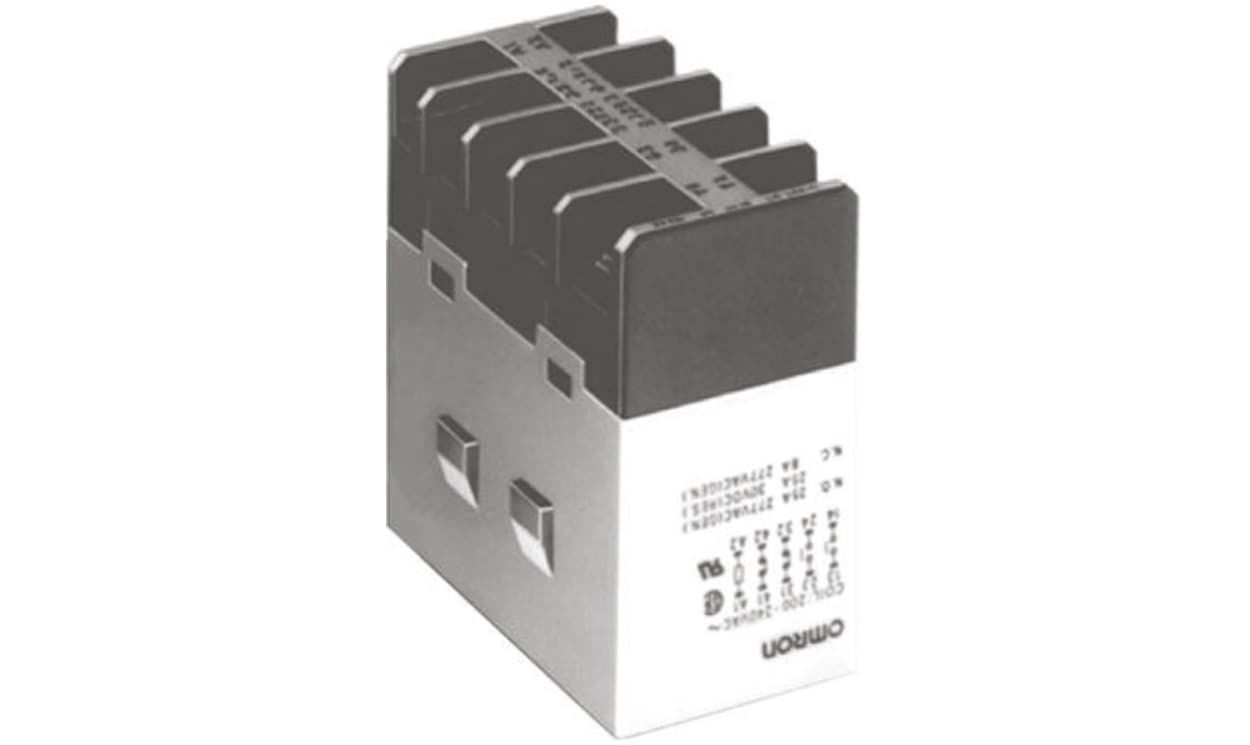

Omron G7J-3A1B-B 100/120VAC, Panel Mount Power Relay, 120V ac Coil, 25A Switching Current, 3PDT

Name: Omron G7J-3A1B-B 100/120VAC, Panel Mount Power Relay, 120V ac Coil, 25A Switching Current, 3PDT
Brand: OMRON
SKU: G7J-3A1B-B 100/120VAC
Availability: OutOfStock

Part Number : G7J-3A1B-B 100/120VAC

Availability: in stock

Detailed Description
Specifications
Downloads

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	3PDT
Mounting Type	Panel Mount
Switching Current	25A
Series	G7J
Latching	No
Terminal Type	Screw
Length	51.5mm
Height	64mm
Contact Material	Silver
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Depth	34.5mm
Maximum Switching Power DC	750 W
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
