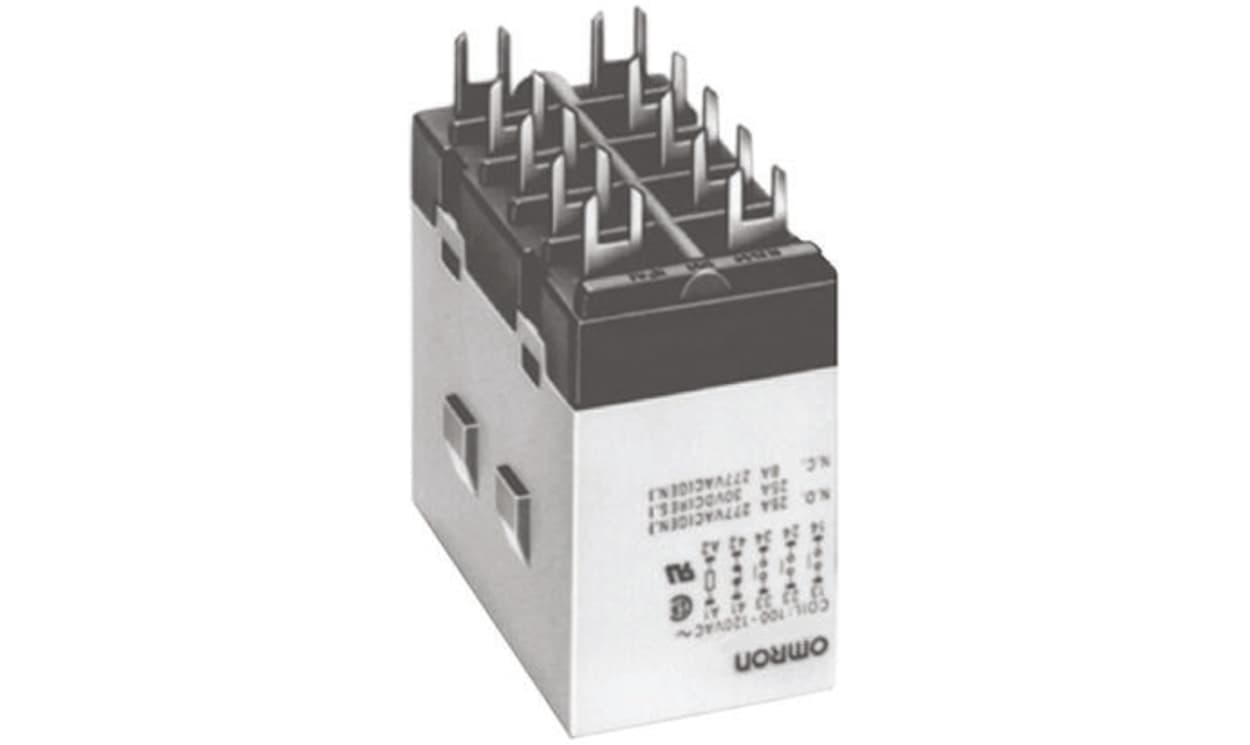

Omron G7J-2A2B-P AC200/240, PCB Mount Power Relay, 240V ac Coil, 25A Switching Current, DPDT

Name: Omron G7J-2A2B-P AC200/240, PCB Mount Power Relay, 240V ac Coil, 25A Switching Current, DPDT
Brand: OMRON
SKU: G7J-2A2B-P AC200/240
Availability: OutOfStock

Part Number : G7J-2A2B-P AC200/240

Availability: Sold out

Detailed Description
Specifications

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	25A
Number of Poles	2
Series	G7J
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	51.5mm
Coil Power	2.6W
Minimum Operating Temperature	-25°C
Height	51mm
Isolation Coil To Contact	4kV ac
Maximum Operating Temperature	+60°C
Life	1000000 (Mechanical) cycles
Depth	33.5mm
Maximum Switching Power AC	5.5 kVA

Omron G7J-2A2B-P AC200/240, PCB Mount Power Relay, 240V ac Coil, 25A Switching Current, DPDT

Omron G7J-2A2B-P AC200/240, PCB Mount Power Relay, 240V ac Coil, 25A Switching Current, DPDT

PCB Mounting & Screw Terminal - Power Relays - G7J Series

Approvals

Omron G2RL-1A DC12, PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, SPST

Omron G5NB-1A4 DC24, PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

Omron G5LE-1-36 DC5, PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT

Omron G5NB-1A4-E DC12, PCB Mount Relay, 12V dc Coil, SPST

Omron G5RL-1-E AC230/240, PCB Mount Power Relay, 240V ac Coil, 16A Switching Current, SPDT

Omron G9EA-1-B-CA DC24, Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

Omron G2RL-2-HA DC5, PCB Mount Power Relay, 5V dc Coil, DPDT

Omron G5RL-1A-E-HR DC5, PCB Mount Power Relay, 5V dc Coil, 16A Switching Current, SPST

Meet Us F2F

Chicago Pneumatic CP8848-2 Pack US 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Chicago Pneumatic CP8848-2 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Mitutoyo 293-821-30 Digital Micrometer, Range 0-25mm

Mitutoyo HH-338-10 : Hardmatic Durometer Shore D

Omron G7J-2A2B-P AC200/240, PCB Mount Power Relay, 240V ac Coil, 25A Switching Current, DPDT

PCB Mounting & Screw Terminal - Power Relays - G7J Series

Approvals

Related Products

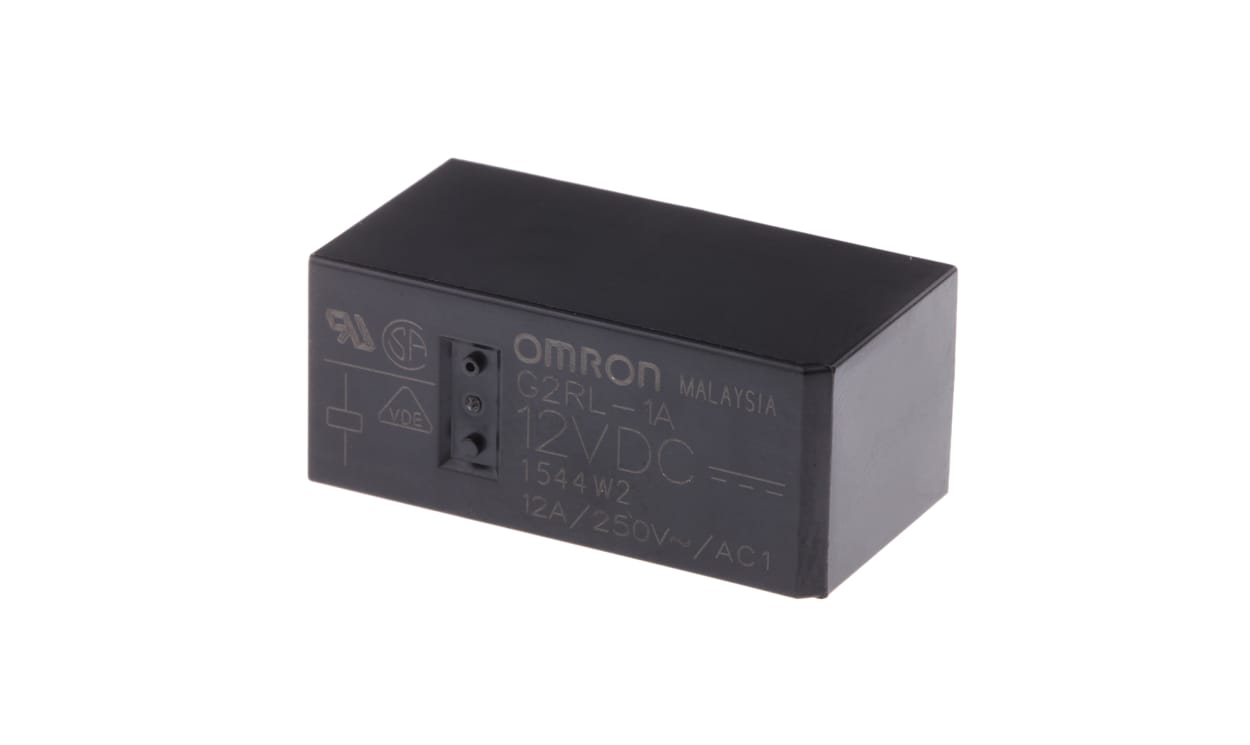

Omron G2RL-1A DC12, PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, SPST

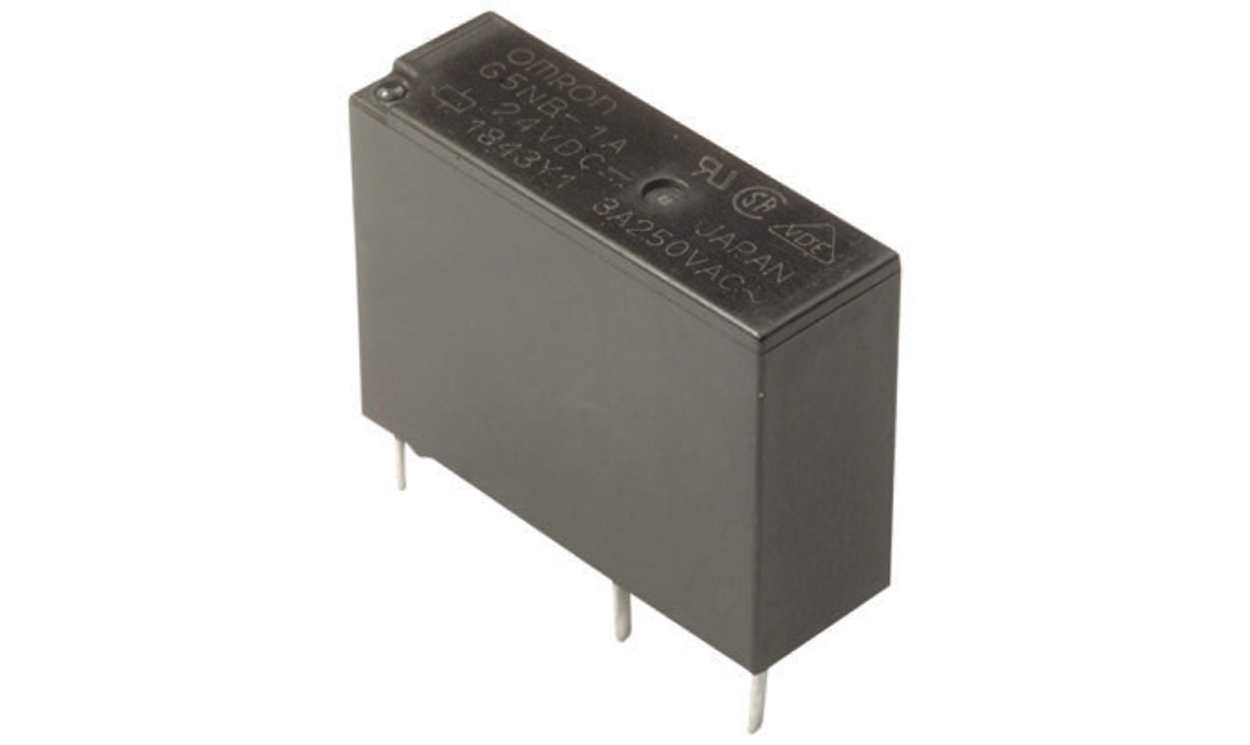

Omron G5NB-1A4 DC24, PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

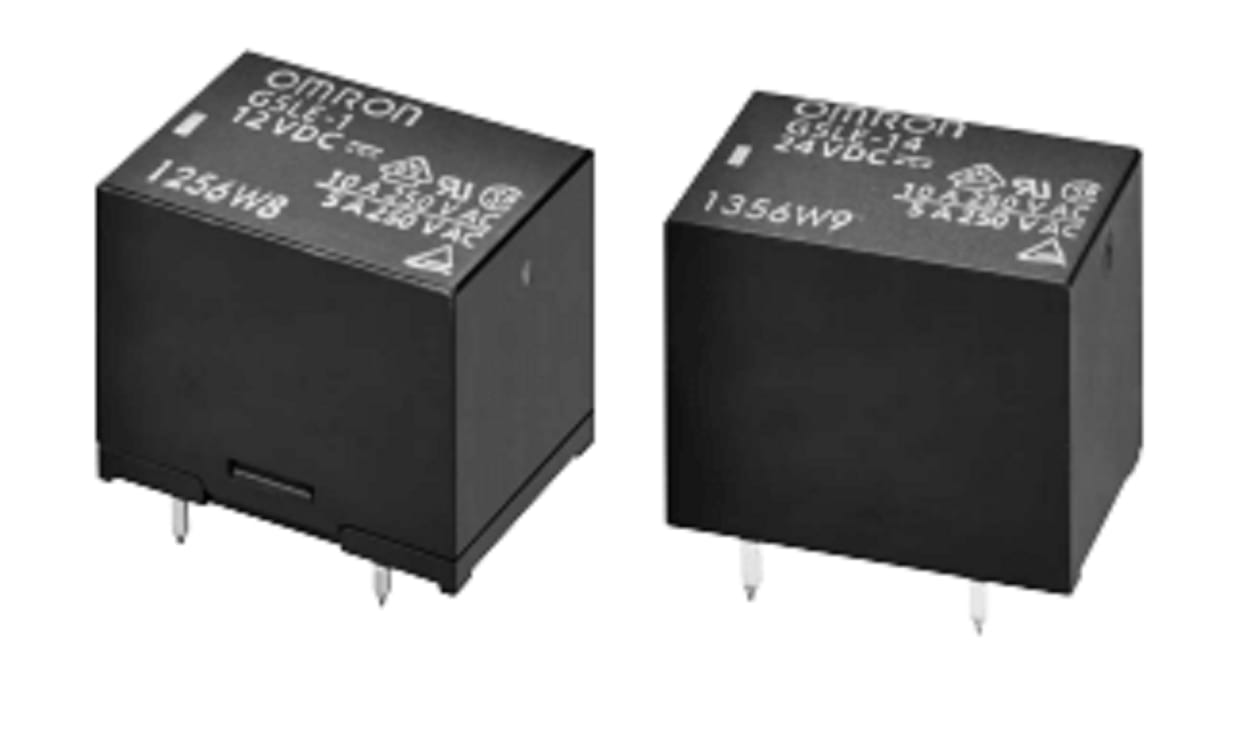

Omron G5LE-1-36 DC5, PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT

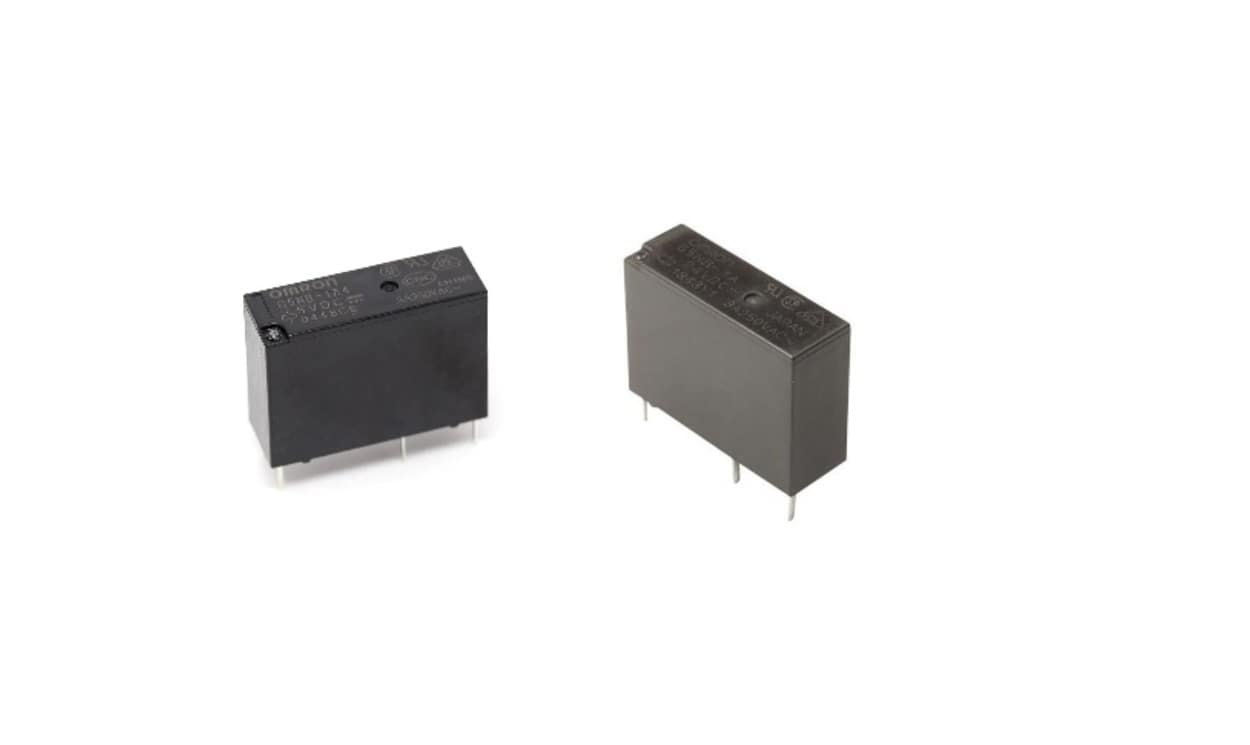

Omron G5NB-1A4-E DC12, PCB Mount Relay, 12V dc Coil, SPST

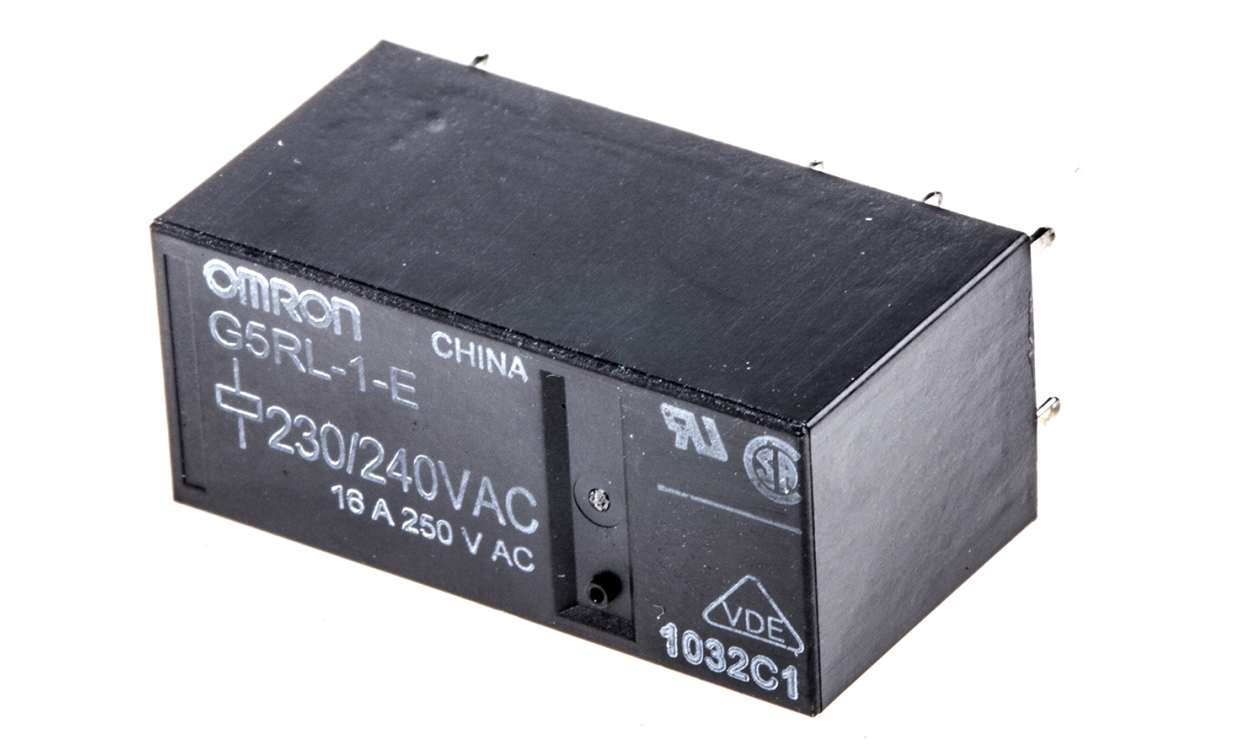

Omron G5RL-1-E AC230/240, PCB Mount Power Relay, 240V ac Coil, 16A Switching Current, SPDT

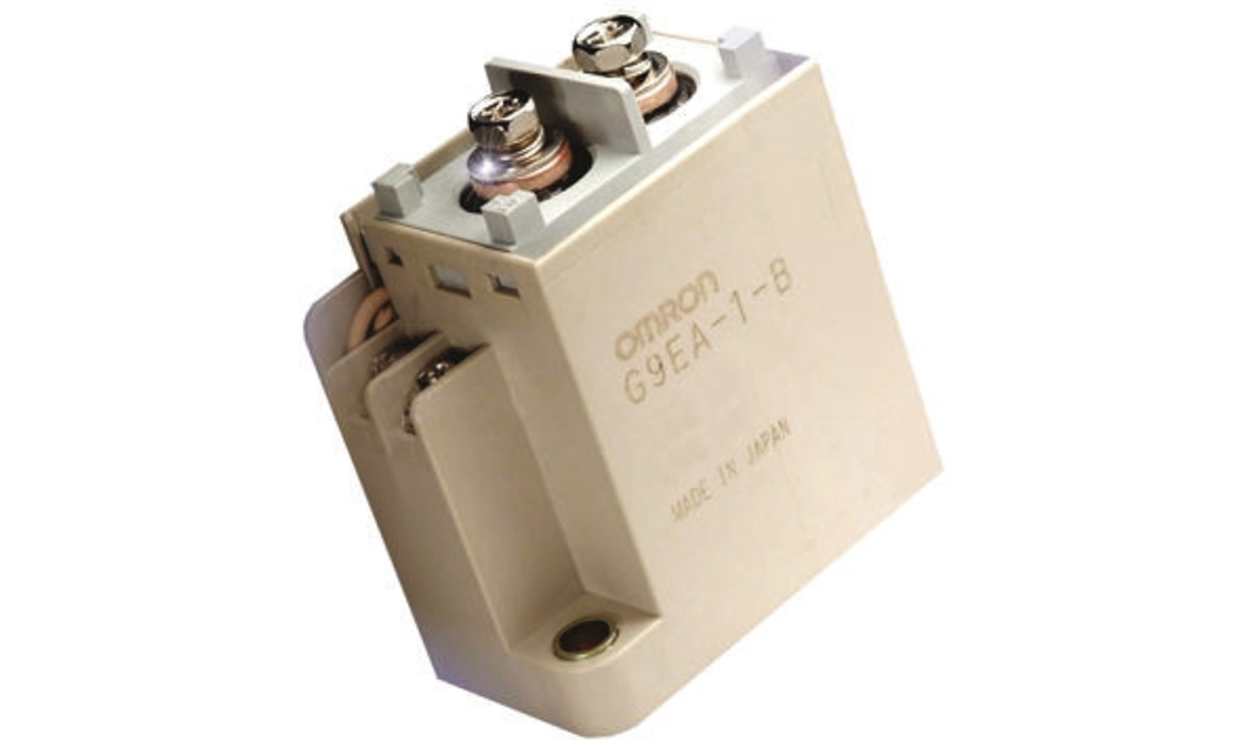

Omron G9EA-1-B-CA DC24, Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

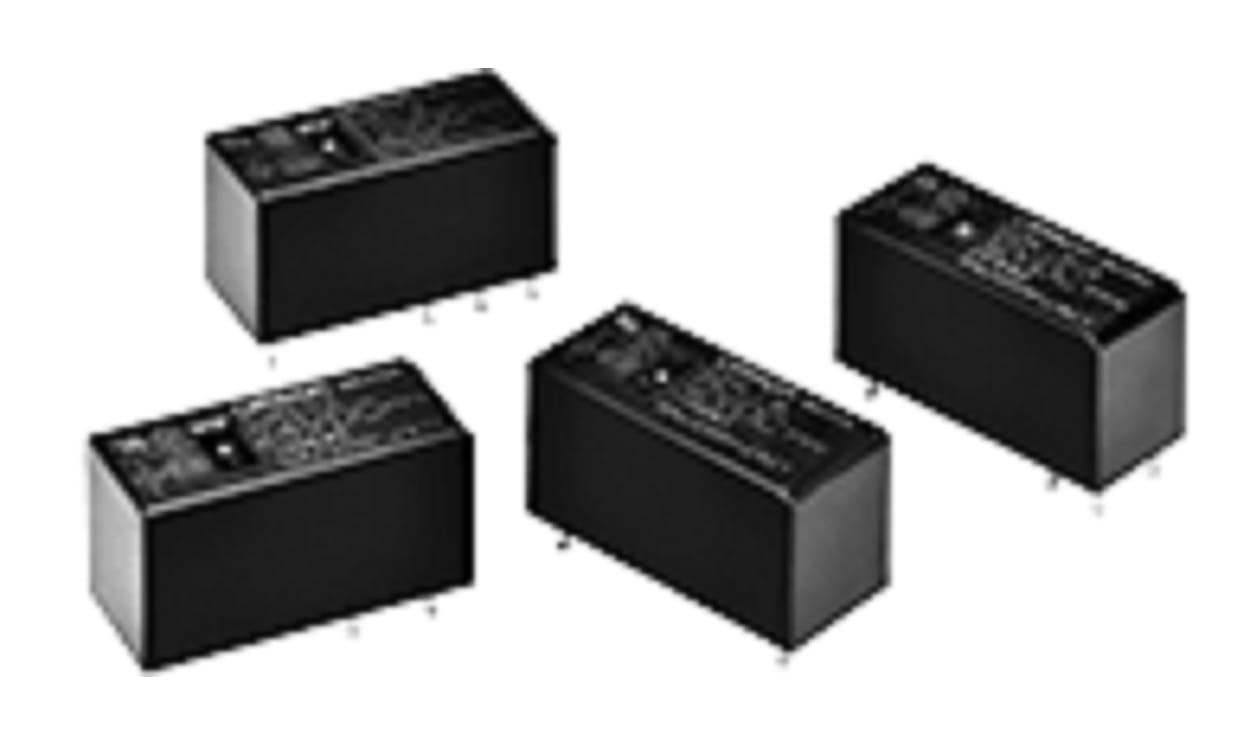

Omron G2RL-2-HA DC5, PCB Mount Power Relay, 5V dc Coil, DPDT

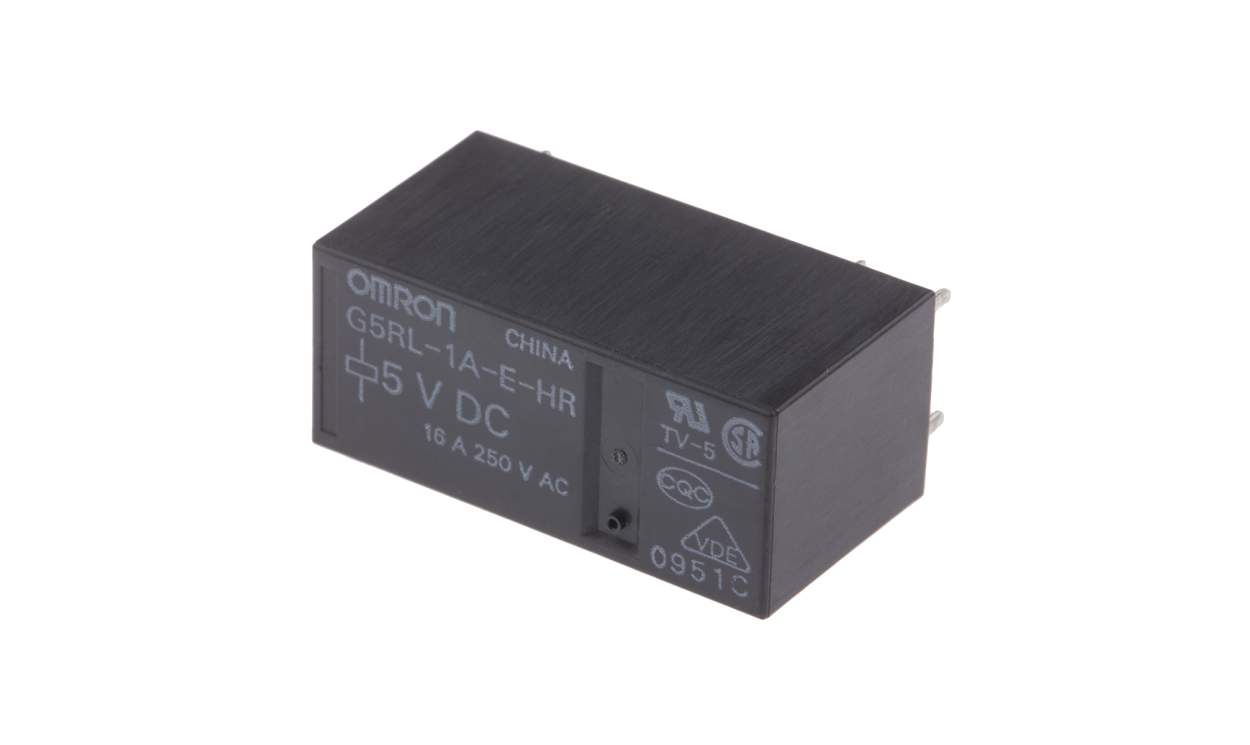

Omron G5RL-1A-E-HR DC5, PCB Mount Power Relay, 5V dc Coil, 16A Switching Current, SPST
