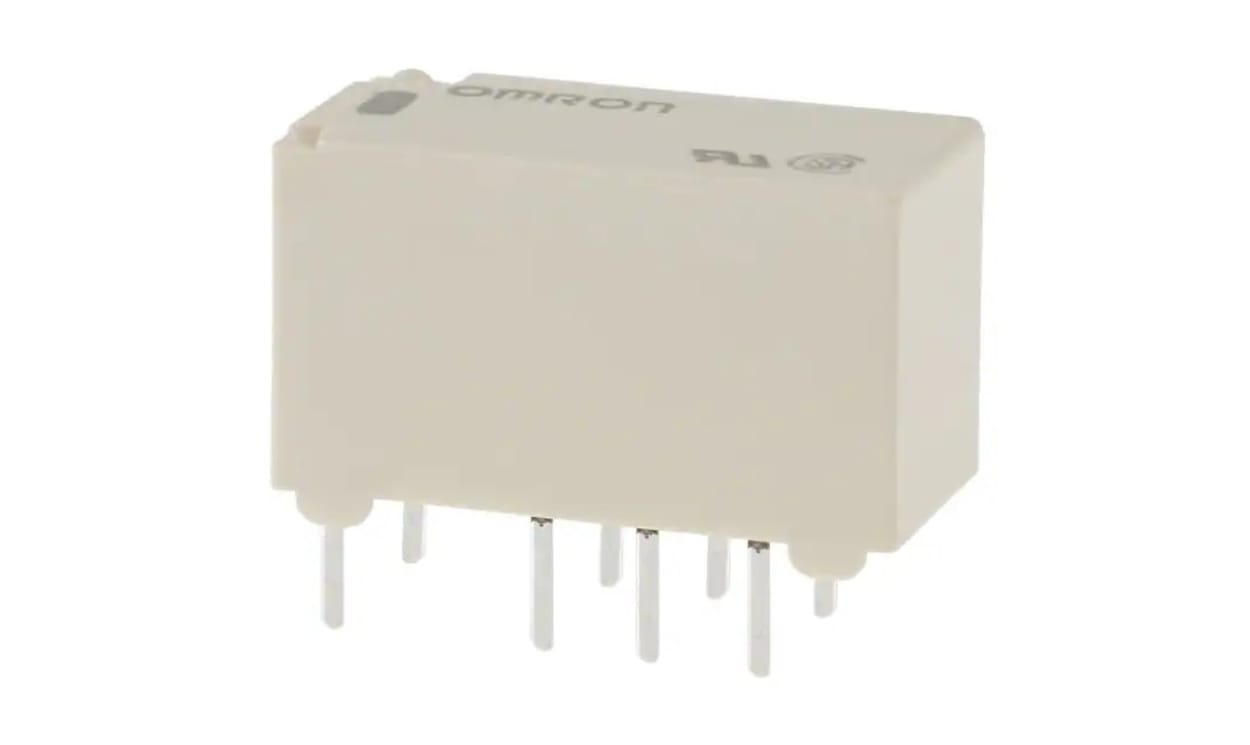

OMRON G6S-2 DC12 | PCB Mount Signal Relay | 12 V DC Coil, DPDT, 2 A
Built around a 12 V DC coil, the OMRON G6S-2 DC12 is a signal relay for PCB mount assembly with DPDT contacts rated at 2 A. The G6S-2 DC12 is listed with a coil resistance of 1.028 kΩ.
- Coil voltage: 12 V DC
- Contact configuration: DPDT (2 poles)
- Single coil
- Coil resistance: 1.028 kΩ
- Coil power: 200 mW
- Coil-to-contact isolation: 2 kV AC
- Detailed Description
- Specifications
- Downloads
Ambient operating temperature from -40°C to 85°C
75 mO maximum contact resistance
| Brand | Omron |
| Series | G6S |
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Number of Poles | 2 |
| Isolation Coil To Contact | 2kV ac |
| Coil Resistance | 1.028 kΩ |
| Coil Power | 200mW |
| Number of Coils | Single |
